Room Humidity & Temperature Sensor ILH311-NI/ILH311-NV
The model ILH311-NI ILH311-NV temperature compensated humidity transmitter/sensor has been designed to meet the demand of energy-care, environmental protection, and air quality control.
The polymer capacitive element based sensor is one of the most stable sensors available and no recalibration required.
The 2-wire design provides an easy installation, decreasing cost of field wiring.
The high accuracy is cover full range from 0 to 100% RH, allowing precise measurement of the humidity over the operating temperature from-40~80Celsius. Even condensation on the sensor will not harm it.
Each transmitter is calibrated in our computer operated atmospheric simulation chamber. The outstanding accuracy over the entire range is based on very precise calibration methods and on the latest microprocessor technology. Our well-proven polymer capacitive humidity sensor ensures excellent long-term stability.
Retail Price：
$ 33
Remaining Stock
10000
Category：
Temperature Humidity Transmitter Series
Keyword：
Room Humidity & Temperature Transmitter
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Room Humidity & Temperature Sensor ILH311-NI/ILH311-NV
The model ILH311-NI ILH311-NV temperature compensated humidity transmitter/sensor has been designed to meet the demand of energy-care, environmental protection, and air quality control.<BR>The polymer capacitive element based sensor is one of the most stable sensors available and no recalibration required.<BR>The 2-wire design provides an easy installation, decreasing cost of field wiring.<BR>The high accuracy is cover full range from 0 to 100% RH, allowing precise measurement of the humidity over the operating temperature from-40~80Celsius. Even condensation on the sensor will not harm it.<BR>Each transmitter is calibrated in our computer operated atmospheric simulation chamber. The outstanding accuracy over the entire range is based on very precise calibration methods and on the latest microprocessor technology. Our well-proven polymer capacitive humidity sensor ensures excellent long-term stability.
Feature & Application
ILH311-NI
Full range temperature compensated
4-20mA output, 2 wire
Humidity Accuracy +-2.0%
Range 0 to 100% RHILH311-NV
Full range temperature compensated
0-5/0-10V DC output, 2 wire
Humidity Accuracy +-2.0%
Range 0 to 100% RHDescription
The model ILH311-NI ILH311-NV temperature compensated humidity transmitter/sensor has been designed to meet the demand of energy-care, environmental protection, and air quality control.
The polymer capacitive element based sensor is one of the most stable sensors available and no recalibration required.
The 2-wire design provides an easy installation, decreasing cost of field wiring.
The high accuracy is cover full range from 0 to 100% RH, allowing precise measurement of the humidity over the operating temperature from-40~80Celsius. Even condensation on the sensor will not harm it.
Each transmitter is calibrated in our computer operated atmospheric simulation chamber. The outstanding accuracy over the entire range is based on very precise calibration methods and on the latest microprocessor technology. Our well-proven polymer capacitive humidity sensor ensures excellent long-term stability.

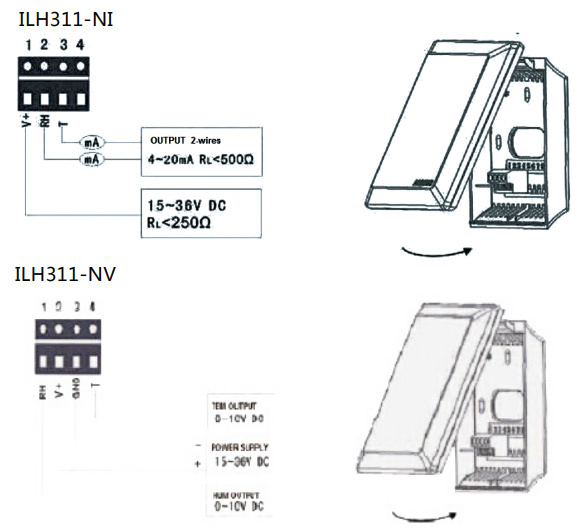

Electrical Connection Diagram
Cautions
Proper location of the room humidity sensor is important to ensure accurate measurement of representative air samples. Place the sensor in an area of room that has good air circulation. Install the sensor on a flat interior surface, approximately 1.4m from the floor. Avoid locating the sensor:
* In areas blanketed by air from diffuser
* On surfaces with an uncooled or unheated area behind them, such as outside wall or the wall of an unoccupied store room
* Near heat sources, such as radiant heat from the sun, heat from appliances, or from concealed pipe or chimneys
* In areas subject to draft
* Behind doors, draperies, or in corners
* On walls having excessive vibration
* In corrosive environments such as swimming pools or hospital rooms -

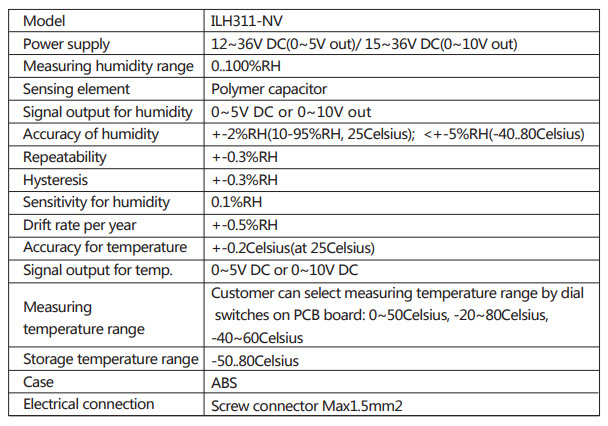

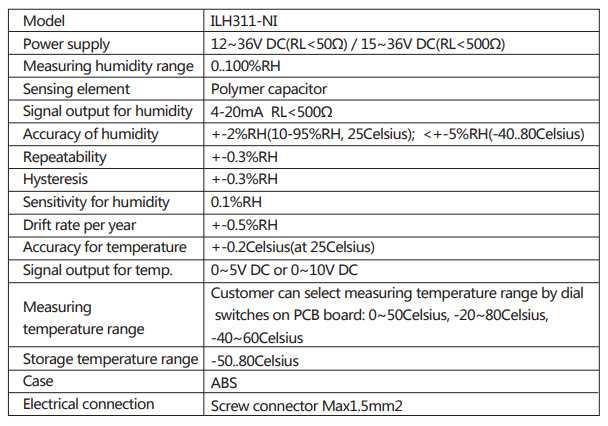

Technical Specification
-

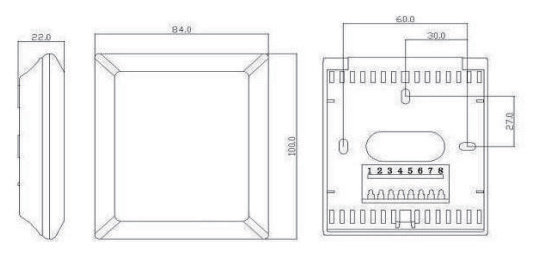

Dimensions(mm)
