3-Speed Switch ILH101
ILH101 3-speed switch is applied to commercial, industrial and civil buildings.
It has 3-speed fan for system control.
Retail Price：
$ 0
Remaining Stock
Category：
Fan Coil Thermostats Series
Keyword：
3-Speed Switch
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: 3-Speed Switch ILH101
ILH101 3-speed switch is applied to commercial, industrial and civil buildings.<br> It has 3-speed fan for system control.

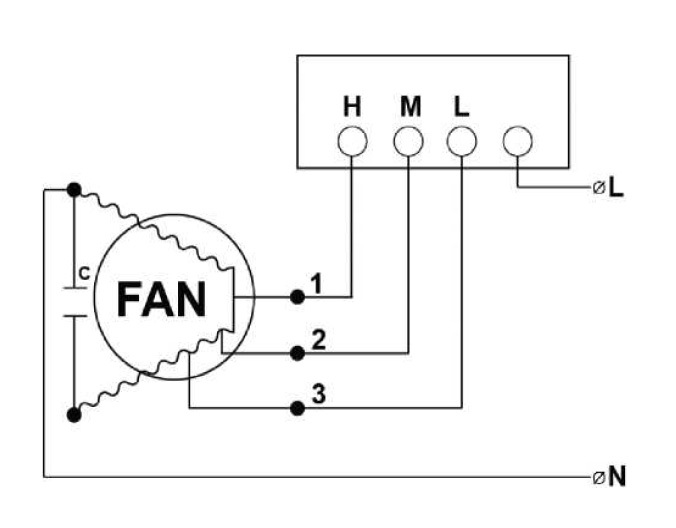

Wiring Digram
Mounting
It is recommended that mount ILH101 into a built-in standard junction box with a dimension of 75×75×35 mm or 55×105×48 mm
● Please read this instruction before installation.
● The power should be disconnected before installation.
● Wiring should abide by wiring diagram.
● Keep the thermostat parallel with wall. -

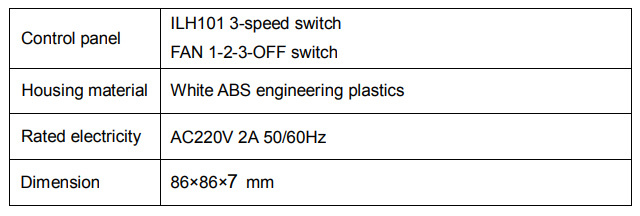

Technical data
-
Measurement
Related Documents
-
File size: 3.7MB
