Differential Pressure Switch ILH350
ILH350 Differential pressure switch is pressure electric switch operation,can be used to measure air and ono-corrosive gas with diaphragm material compatible of the absolute pressure,differential pressure,gauge pressure and vacuum negative pressure. ILH350 Differential pressure switch in the ventilation duct is used as a switch or differential pressure switch to monitor the air filter and fan start-stop state,also applies to the primary and secondary level of wind valve control system. ILH350 Differential pressure switch is also very suitable for prevent heating coil overheating and monitor industrial air cooling circuit.
Retail Price：
$ 6.5
Remaining Stock
10000
Category：
Automatic Control Terminal Product Series
Keyword：
Differential Pressure Switch
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Differential Pressure Switch ILH350
ILH350 Differential pressure switch is pressure electric switch operation,can be used to measure air and ono-corrosive gas with diaphragm material compatible of the absolute pressure,differential pressure,gauge pressure and vacuum negative pressure. ILH350 Differential pressure switch in the ventilation duct is used as a switch or differential pressure switch to monitor the air filter and fan start-stop state,also applies to the primary and secondary level of wind valve control system. ILH350 Differential pressure switch is also very suitable for prevent heating coil overheating and monitor industrial air cooling circuit.
Features
• Simple installation,provide a full range of accessories,long service life
• Applicable medium and wide measruing range
-
Technical data
Specifications

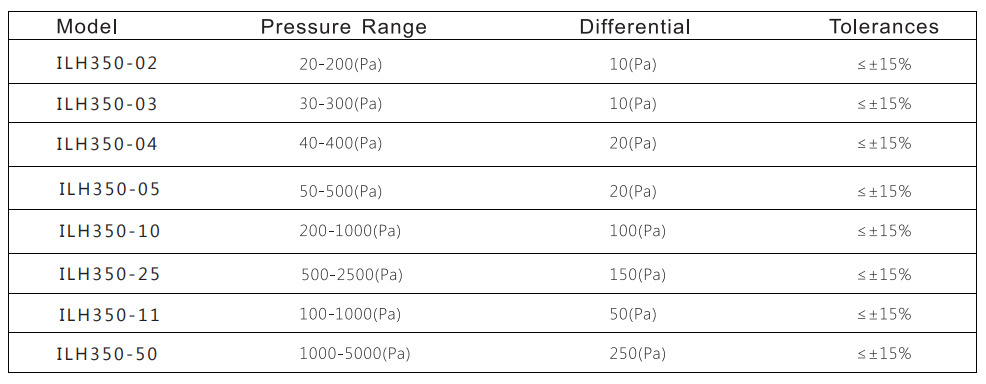

Pressure Range
-
Measurement

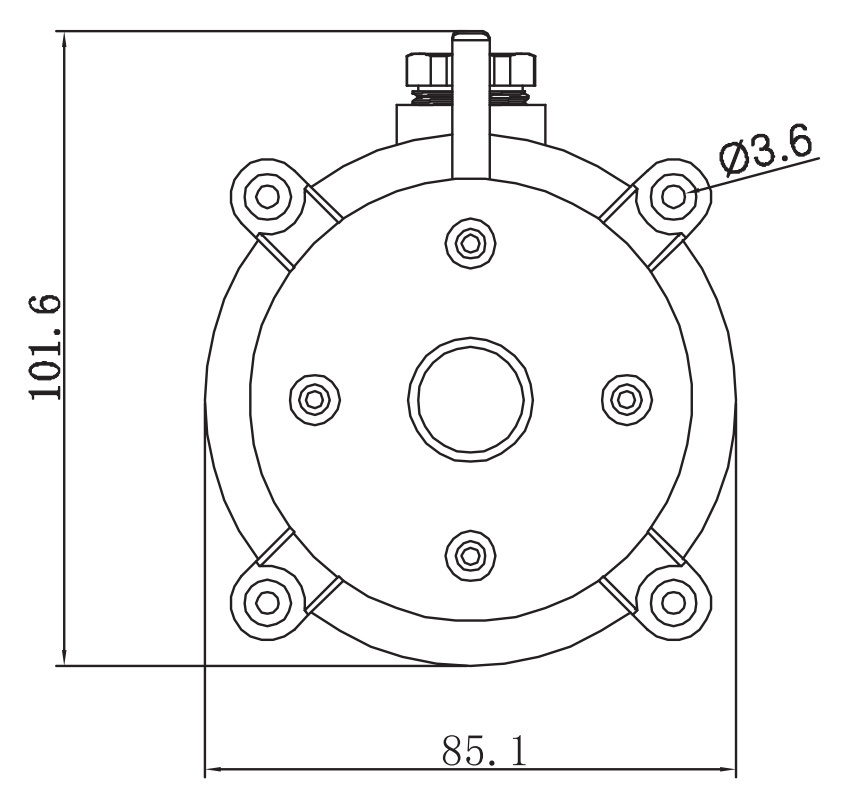

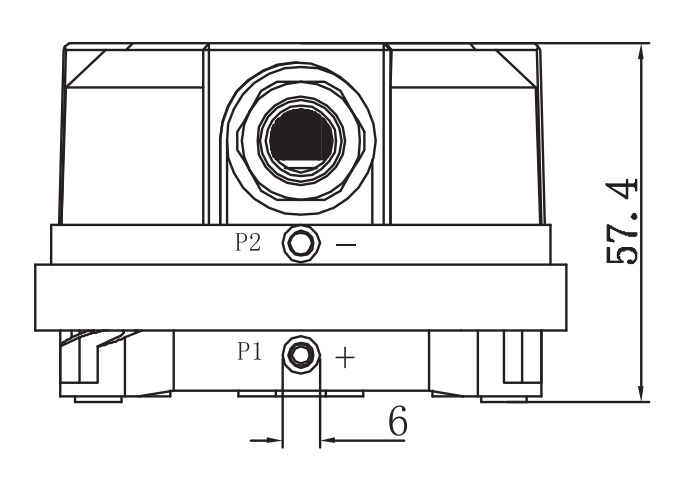

Bracket Dimension（mm)
