Mechanical Thermostat ILH103
ILH103 product is available for the temperature control system, such as the fan coil of control air-conditioner and heating system, electrical heater, heat pump and so on. The sensitivity of it is very high, And this product is very practical and easy to install.
Retail Price：
$ 0
Remaining Stock
Category：
Fan Coil Thermostats Series
Keyword：
Mechanical Thermostat
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Mechanical Thermostat ILH103
ILH103 product is available for the temperature control system, such as the fan coil of control air-conditioner and heating system, electrical heater, heat pump and so on. The sensitivity of it is very high, And this product is very practical and easy to install.

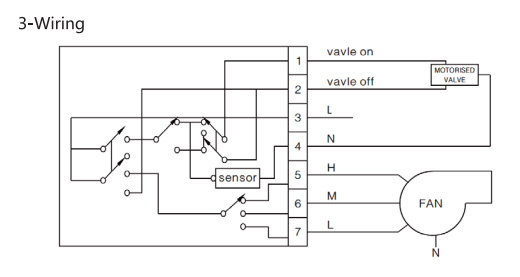

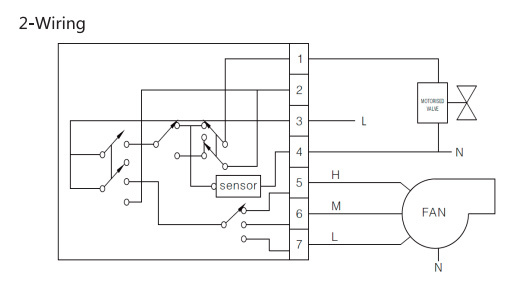

Wiring Digram
-
Specification
Working range : 10-30°C
Control Precision : ± 0.8°C (at 20°C)
Temp. Sensing parts : Precision metal monopole charge sheet boxes
Thermostat: 220V AC ± 10% 50/60 Hz,micro-switches out put
Fan Switch : 6(2) A 250V AC
Material: Tenacious fire engineering plastics
Color: Milky White
Thermostat Contact:之 200000 (at 220V)
Manual Switch : 2000 times
Working environment: 0-50°C 10-90%RH No dew
Storage Temperature : - 40°C 一 +70°C
Net Weight: About 200g
-

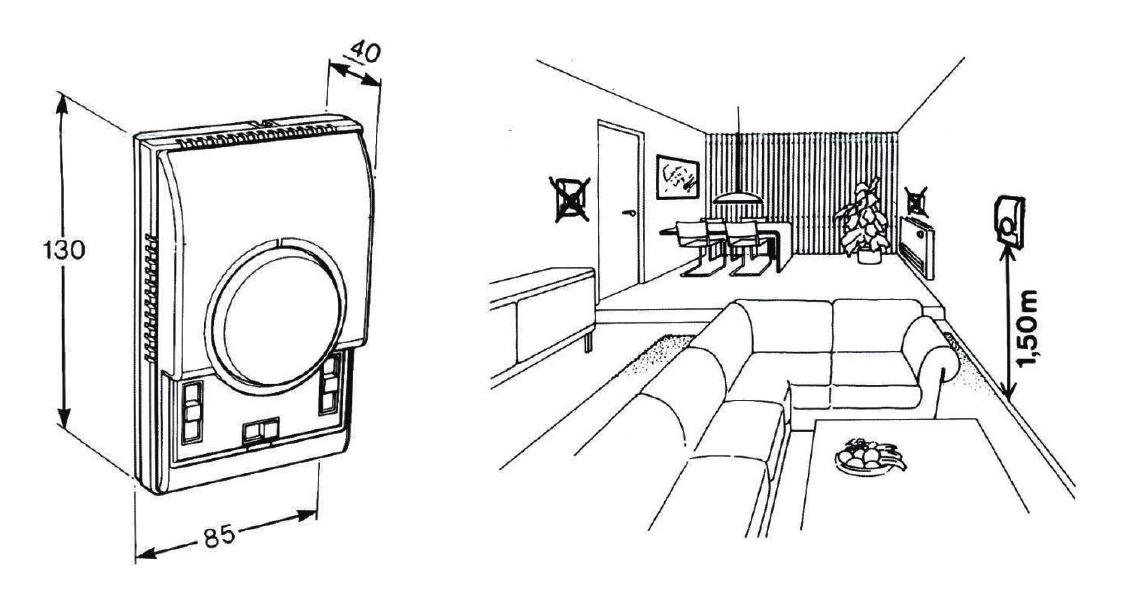

规格尺寸
