Air Duct Humidity & Temperature Transmitter ILH301-I/LH301-V
The model ILH301-I temperature compensated humidity transmitter/sensor has been designed to meet the demandof energy-care, environmental protection, and air quality control . The polymer capacitive element based sensor is one of the most stable sensor available and no recalibration required. The 4-20mA design provides an easy installation, decreasing cost of field wiring . The high accuracy cover full range from 0 to % RH, allowing precise measurement of the humidity over the operating temperature from-40~80Celsius. Even condensation on the sensor will not harm it. Each transmitter is calibrated in our computer operated atmospheric simulation chamber. The outstanding accuracy over the entire range is based on very precise calibration methods and on the latest microprocessor technology. Our well-proven polymer capacitive humidity sensor ensure excellent long-term stability.
Retail Price：
$ 42
Remaining Stock
10000
Category：
Temperature Humidity Transmitter Series
Keyword：
Air Duct Humidity & Temperature Transmitter
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Air Duct Humidity & Temperature Transmitter ILH301-I/LH301-V
The model ILH301-I temperature compensated humidity transmitter/sensor has been designed to meet the demandof energy-care, environmental protection, and air quality control . The polymer capacitive element based sensor is one of the most stable sensor available and no recalibration required. The 4-20mA design provides an easy installation, decreasing cost of field wiring . The high accuracy cover full range from 0 to % RH, allowing precise measurement of the humidity over the operating temperature from-40~80Celsius. Even condensation on the sensor will not harm it. Each transmitter is calibrated in our computer operated atmospheric simulation chamber. The outstanding accuracy over the entire range is based on very precise calibration methods and on the latest microprocessor technology. Our well-proven polymer capacitive humidity sensor ensure excellent long-term stability.
Feature & Application
ILH301-I
Full range temperature compensated
Good price, Fast delivery
4-20mA outpu Humidity Accuracy +-2.0%
Range 0 to % RH
Light weight, easy installationILH301-V
Full range temperature compensated
0-5/0-10V DC output
Humidity Accuracy +-2.0%
Range 0 to 99.99 % RHDescription
The model ILH301-I temperature compensated humidity transmitter/sensor has been designed to meet the demandof energy-care, environmental protection, and air quality control . The polymer capacitive element based sensor is one of the most stable sensor available and no recalibration required.
The 4-20mA design provides an easy installation, decreasing cost of field wiring .
The high accuracy cover full range from 0 to % RH, allowing precise measurement of the humidity over the operating temperature from-40~80Celsius. Even condensation on the sensor will not harm it.
Each transmitter is calibrated in our computer operated atmospheric simulation chamber. The outstanding accuracy over the entire range is based on very precise calibration methods and on the latest microprocessor technology. Our well-proven polymer capacitive humidity sensor ensure excellent long-term stability.

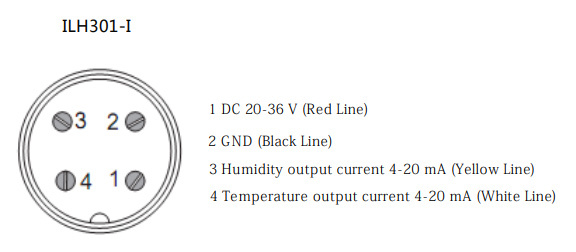

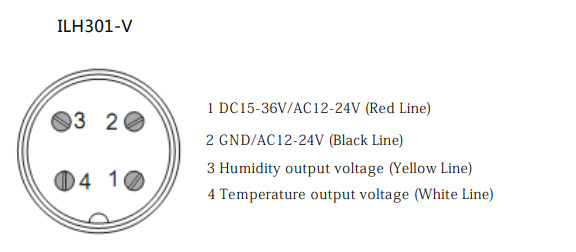

Electrical Connection Diagram
Cautions
Place the duct humidity sensor/transmitter in an area of the duct that has good air flow. The sensor/transmitter should be mounted away from fans, corners, heating and cooling coils, sparying valves and other equipment that will affect the relative humidity measurement.
-

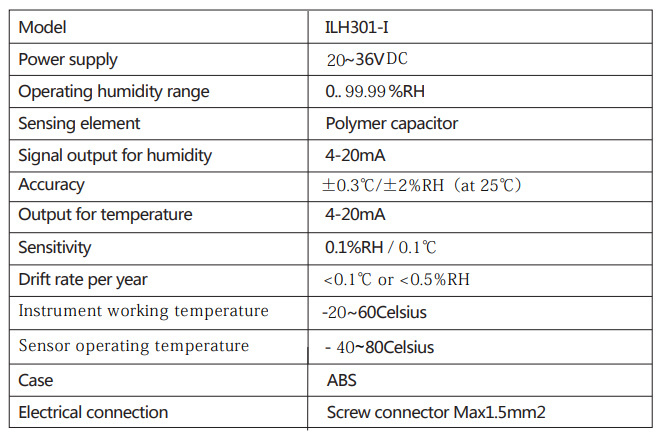

Technical Specification
-

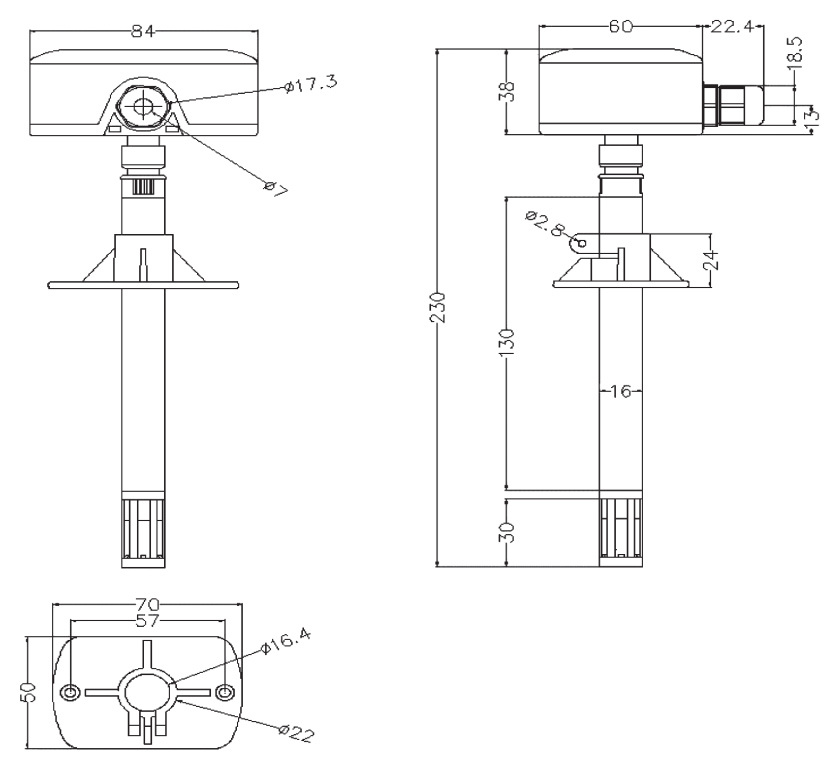

Dimensions(mm)
Related Documents
-
File size: 2.7MB
