Room Humidity & Temperature Transmitter ILH311-C
Sensor without displaying function ILH311-NC
Sensor with displaying function ILH311-CC
Capacitive-type humidity and temperature transmitter/sensor for Wall Mounting
Retail Price：
$ 0
Remaining Stock
Category：
Temperature Humidity Transmitter Series
Keyword：
Room Humidity & Temperature Transmitter
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Room Humidity & Temperature Transmitter ILH311-C
Sensor without displaying function ILH311-NC<br> Sensor with displaying function ILH311-CC<br> Capacitive-type humidity and temperature transmitter/sensor for Wall Mounting
Feature & Application
Full range temperature compensated
RS485 signal output
Humidity Accuracy +-2.0%
Range 0 to % RHDescription
The model ILH311-C temperature compensated humidity transmitter/sensor has been designed to meet the demand of energy-care, environmental protection, and air quality control.
The polymer capacitive element based sensor is one of the most stable sensors available and no recalibration required.
The high accuracy is cover full range from 0 to % RH, allowing precise measurement of the humidity over the operating temperature from-40~80Celsius. Even condensation on the sensor will not harm it.
Each transmitter is calibrated in our computer operated atmospheric simulation chamber. The outstanding accuracy over the entire range is based on very precise calibration methods and on the latest microprocessor technology. Our well-proven polymer capacitive humidity sensor ensures excellent long-term stability.
Electrical Connection Diagram
(1): Connection terminal

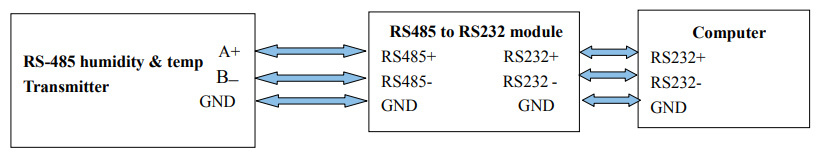

(2): Connection diagram between humidity transmitter and computer(example diagram)
Communication
(1). Set up Baud rate
Set up Baud rate via dial switch located on humidity sensor's PCB board
(2). Set up humidity sensor's address
Set up humidity sensor's address via dial switch located on humidity sensor's PCB board, from left side to right sight, its 8 7 6 5 4 3 2 1 on dial switch. Black color means to which direction the switch should be moved to Below is example of address from 1 to 255. -

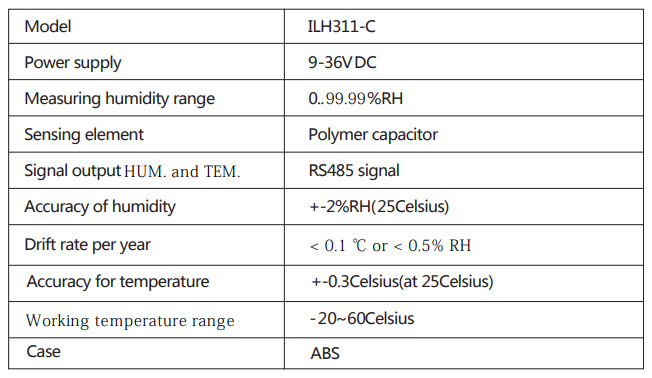

Technical Specification
-

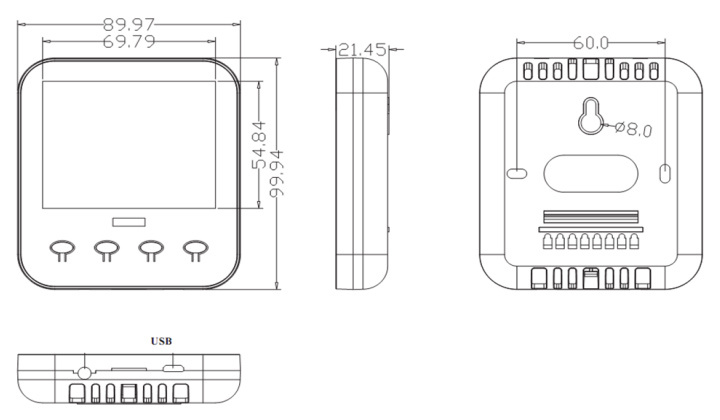

Dimensions(mm)
Related Documents
-
File size: 2.5MB
