Touch Screen Room Thermostat ILH114
ILH114 with blue backlight white character LCD display, 110/220 VAC±10%, 2/4-pipe thermostat for fan coil, control 2-3 line valves.
Retail Price：
$ 0
Remaining Stock
Category：
Fan Coil Thermostats Series
Keyword：
Touch Screen Room Thermostat
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Touch Screen Room Thermostat ILH114
ILH114 with blue backlight white character LCD display, 110/220 VAC±10%, 2/4-pipe thermostat for fan coil, control 2-3 line valves.
Basic Function
1. Work modes (Cool、Heat ,Vent, coo+Sleep,heat+sleep)
2. Fan speed (Low,Med,High or Auto)
3. Time on and Time off
4. Surveys, display and set room temperature.
5. Large, clear, backlit display. easy-to-see and read.
6. Memory function: parameters are permanently held in memory and retained during power outages.
7. Guards against the rime function
8. Infrared remote-controlled function (option)
9. RS485 communications interface (option)Operate ILH114 Thermostat

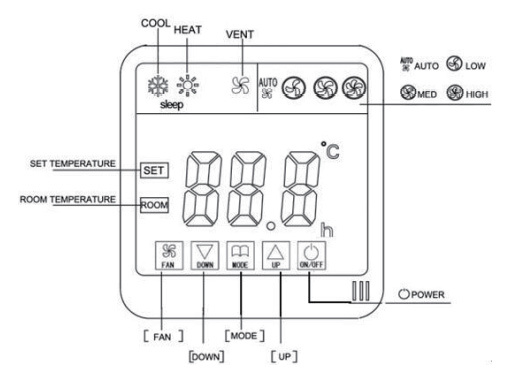

1. Power on/off: Press
, the thermostat will switch between off mode and on mode.2. Temperature setting: In heat/cool mode, press △ or ▽ button to select the desired temperature setting. Press
or
buttons to exit setting.3. Mode setting: Press
, the thermostat will enter setting mode, press △ or ▽ to select Cool ,Heat ,Vent,oo+Sleep,heat+sleep.4. Fan setting: Press △ or ▽ to select the Low、Med、High or Auto speed setting.
5. Sleep mode: Press

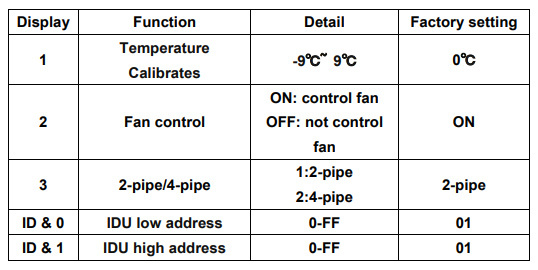

to choose heat+sleep/ cool+sleep mode.Advance Setting
Installation Guide
Must be installed by a trained, experienced technician
Read these instructions carefully. Failure to follow these instructions can damage the product or cause a hazardous condition.Always test for proper operation after installation
Caution: electrical hazard can cause electrical shock or equipment damage. Disconnect power before installation.Installation
◇ Installs the size: standard 86 junction box
◇ Turns on the hook
◇ Takes down a row of line
◇ Connecting the wires
◇ Fixing the thermostat with two screws
◇ Inserts a row of line

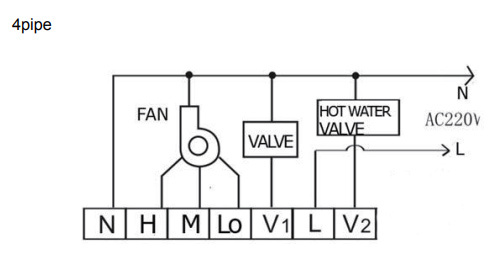

◇ Catches the shell, the installment finishedWiring
-
Product Specifications
< Color : white ivory
< Color : white ivory
< Sensor type: NTC
< Voltage: 220+10%VAC,50/60Hz
< Relative humidity: <92% (23C)
< Differential Temperature:+1C max
< Setting Temperature Range: 5C -35 C
< Dimensions: 86mm X 86mm X 13mm (H/W/D)
< Size of display: 65mm X 68mm (HW)
< Operation enviroment temperature :-10C - 60C
-
Measurement
Related Documents
-
File size: 2.4MB
