Proportional & Integrated Thermostat ILH113
ILH113 Proportional & Integration Control system is made of Proportional & Integration Controller, 24V Transformer, Sensor, Proportional & Integration Actuator and Proportional & Integration Valve Body.
ILH113 Series Proportional Floating Thermostat, with multi, updated and computerized functions, detects different temp between ambient and setting temperature using precise NTC sensor(internal only) to adjust Heating and Cooling. Hence, it keeps the room at comfortable and constant temp.I.t could be programmable and non-programmable.
ILH113 Series Thermostats have got National Quality Authentication, and meet the standard of National Electric Safety. They are used to control room temperature in commercial, industrial and residential environment.
Retail Price：
$ 0
Remaining Stock
Category：
Fan Coil Thermostats Series
Keyword：
Proportional & Integrated Thermostat
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Proportional & Integrated Thermostat ILH113
ILH113 Proportional & Integration Control system is made of Proportional & Integration Controller, 24V Transformer, Sensor, Proportional & Integration Actuator and Proportional & Integration Valve Body.<BR>ILH113 Series Proportional Floating Thermostat, with multi, updated and computerized functions, detects different temp between ambient and setting temperature using precise NTC sensor(internal only) to adjust Heating and Cooling. Hence, it keeps the room at comfortable and constant temp.I.t could be programmable and non-programmable.<BR>ILH113 Series Thermostats have got National Quality Authentication, and meet the standard of National Electric Safety. They are used to control room temperature in commercial, industrial and residential environment.

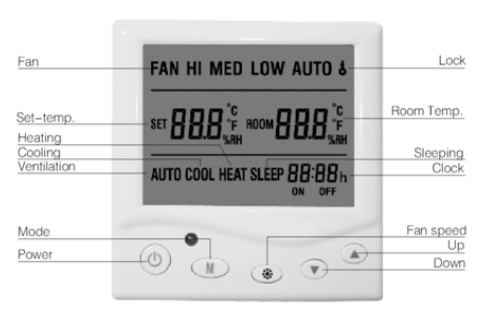

Function and Display
Symbols
: Power, Tum-on/off
: Menu. Press it into Sleeping - Clock setting - Timing tum-on- Timing tum-off- Retum to original.M: Heating /cooling changeover
▲:Temperature up
▼:Temperature down

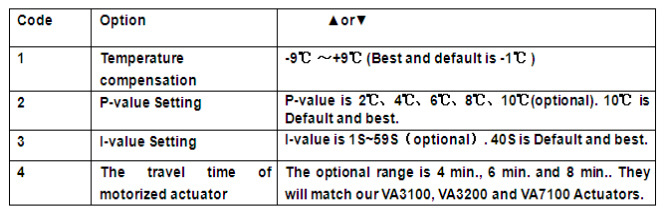

Parameter Option
During power off, press M for 3 sec, into senior setting. It includes temperature correction, P Value (Proportional Value), I Value (Integrated Value), 485 Communications IP high addresses and low address setting. Then press M changeover into the relative item. At last, confirm it and turn on automatically.

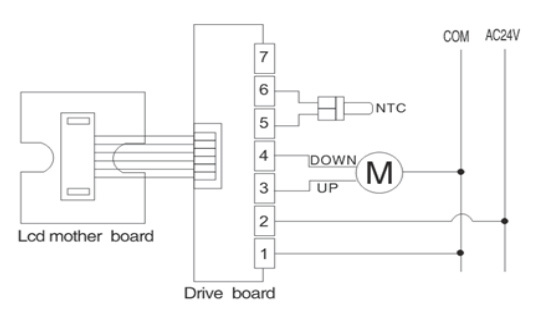

Wiring Diagram

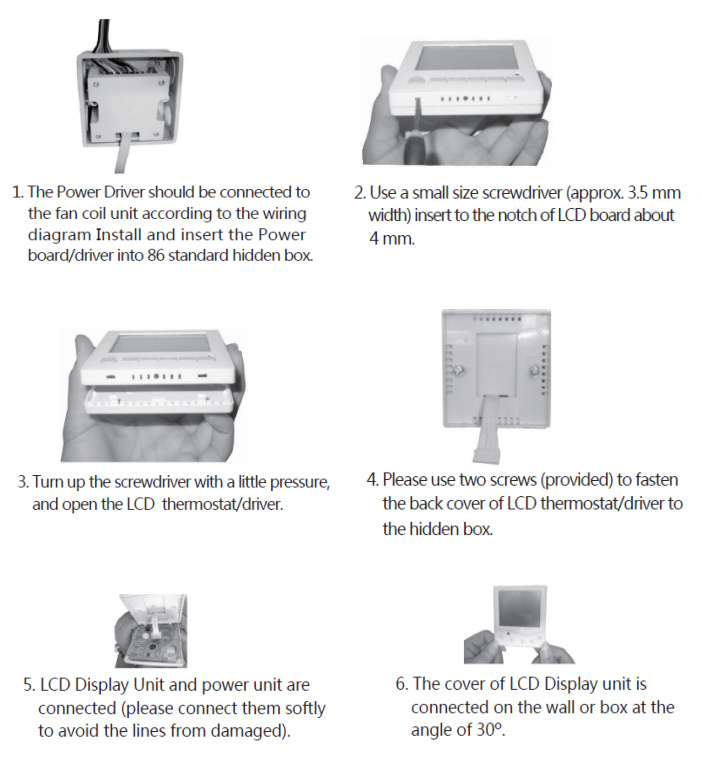

Installation
-
Technical Data
Temperature Range：7℃~120℃
Temperature Accuracy：±1℃
Load Current: <1A(Inductive load)
Self-consumption : <1.5W
Power Voltage : AC 24V士10% 50/60Hz
Timing Error: . < 1%
Dimension : 86mm* 86mm*13mm (Height x Width x Thickness) -
Measurement
Related Documents
-
File size: 5.4MB
