60 Series Fire Smoke Fail Safe Reversible Actuator
60 Series Fire Smoke Fail Safe Reversible Damper Actuators (Non-spring return ) could be used to adjust and control damper in HVAC systems. The actuator motorized the damper or other devices when power on.
Retail Price：
$ 27.19
Remaining Stock
10000
Category：
Damper Actuator Series
Keyword：
6005N Series Fail Safe Reversible Damper Actuator
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: 60 Series Fire Smoke Fail Safe Reversible Actuator
60 Series Fire Smoke Fail Safe Reversible Damper Actuators (Non-spring return ) could be used to adjust and control damper in HVAC systems. The actuator motorized the damper or other devices when power on.

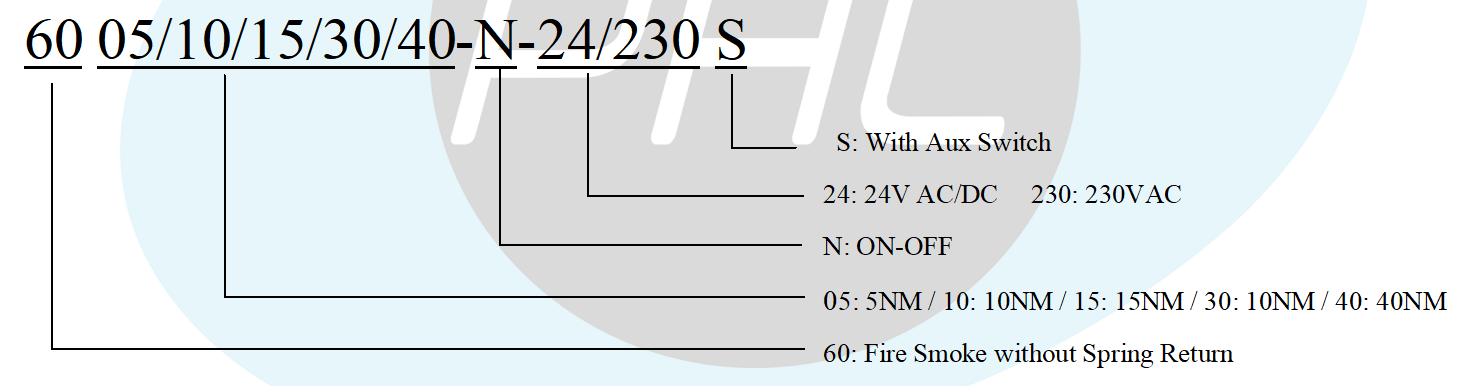

Model Annotation
Features
● 2 and 3 Points on / off control
● Setting up running time independently.
● Screw terminal connection
● Square shaft: 12×12mm ( at most )
● Manual control by pressing slider.
● 2 SPDT fixed auxiliary switches as standard.

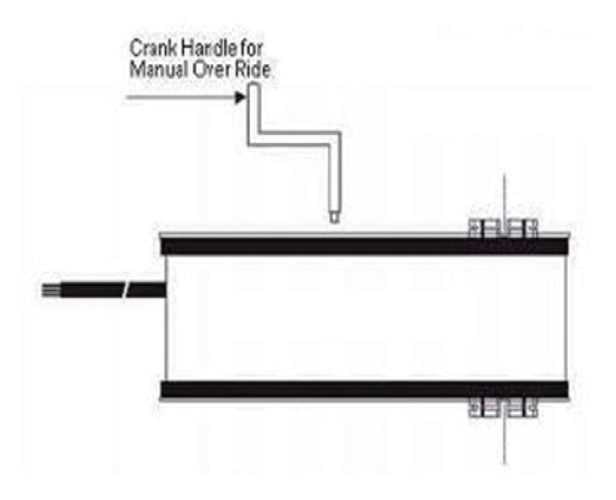

● Manual over ride by crank handle when required.
● Steel housing with anti-shock, compact and stability.
● Permanent sealed housing meets IP 54 Standard.
● Selectable direction of rotation by reversing actuator.
● Thermal sensor when requested.
● Actuators with 1m cable connection.

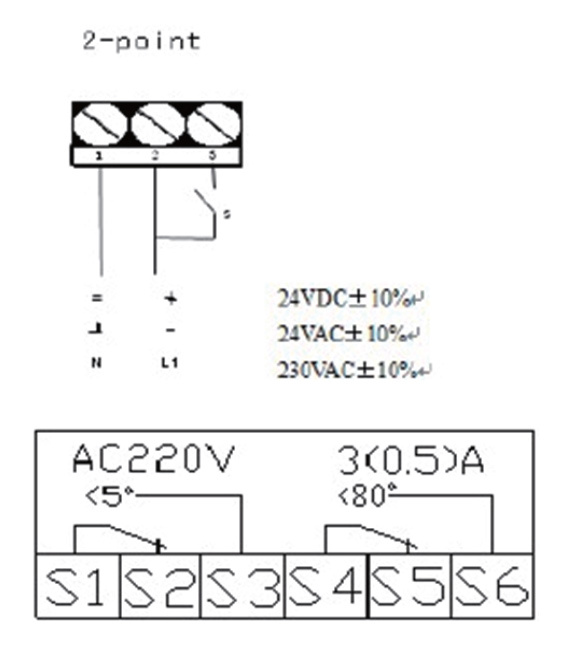

● Adapter supplied for Form Fit 8 or 10 mm square.Wiring Diagram
-

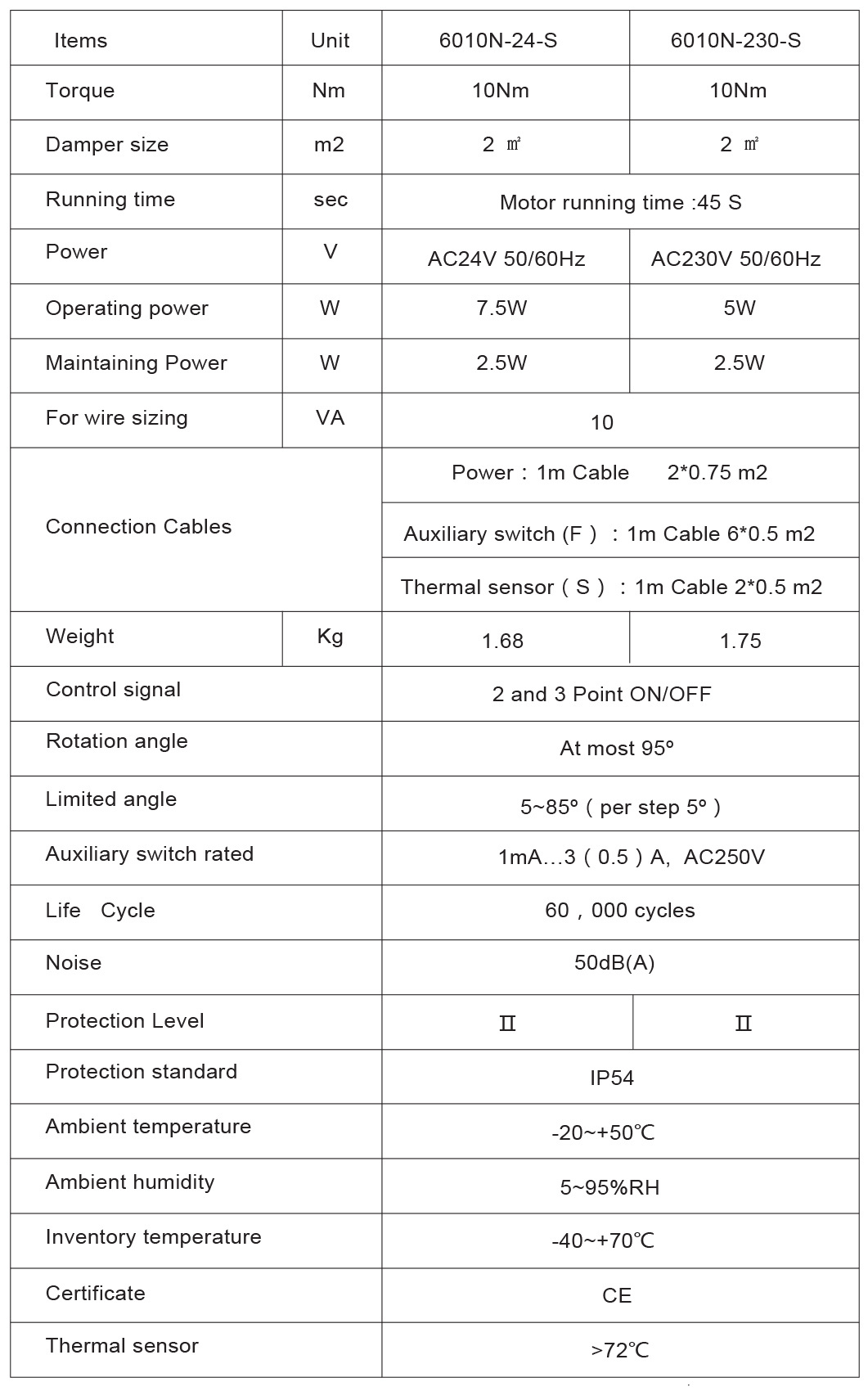

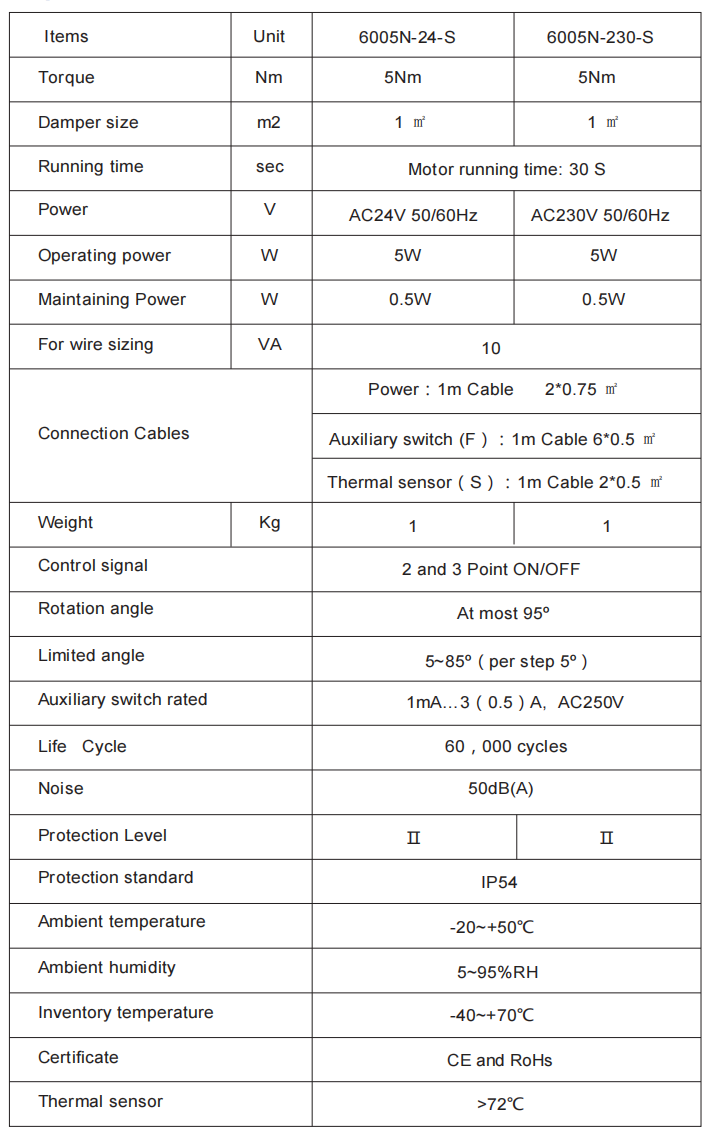

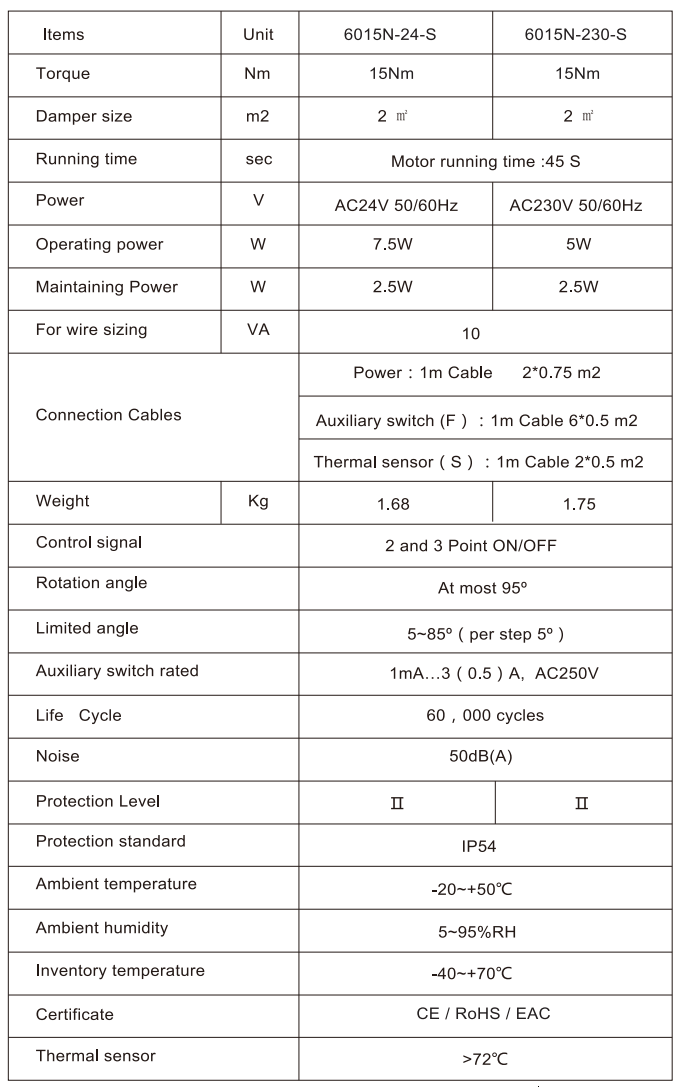

Technical Specification
-

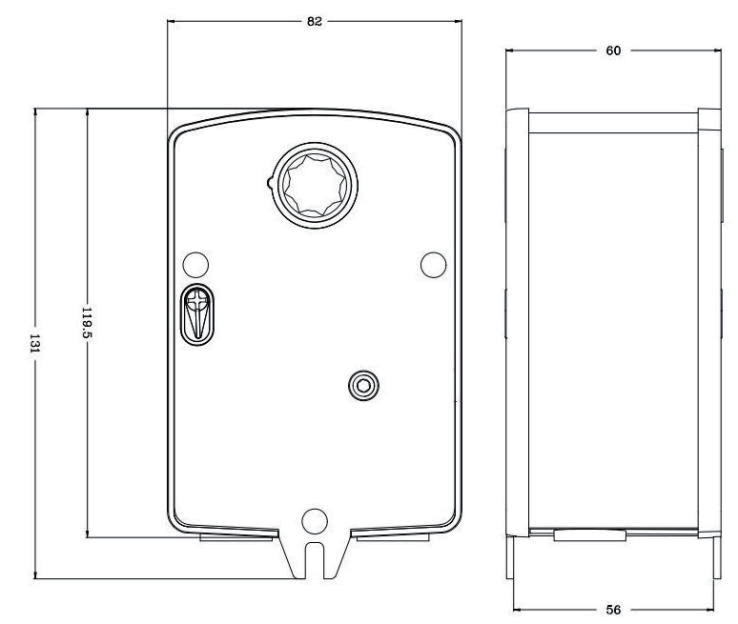

External Dimension and Installation (mm)
