51 Series Damper Actuator
This damper actuator is for small and medium-sized air damper and the air volume system terminal control unit of the special design,small size and flexible control; it is suitable for the position of the narrowspace.
Retail Price：
$ 21.44
Remaining Stock
10000
Category：
Damper Actuator Series
Keyword：
Series Damper Actuator
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: 51 Series Damper Actuator
This damper actuator is for small and medium-sized air damper and the air volume system terminal control unit of the special design,small size and flexible control; it is suitable for the position of the narrowspace.
Features
* Proportional control
* Setup independent running time
* Shaft terminal connection
* Universal joint transform:circularshaftφ 6-16mm, square sha 5-11mm
* It can choose rotation Angle
* It can choose an auxiliary switch
* It can effectively set in advanceModel Annotation

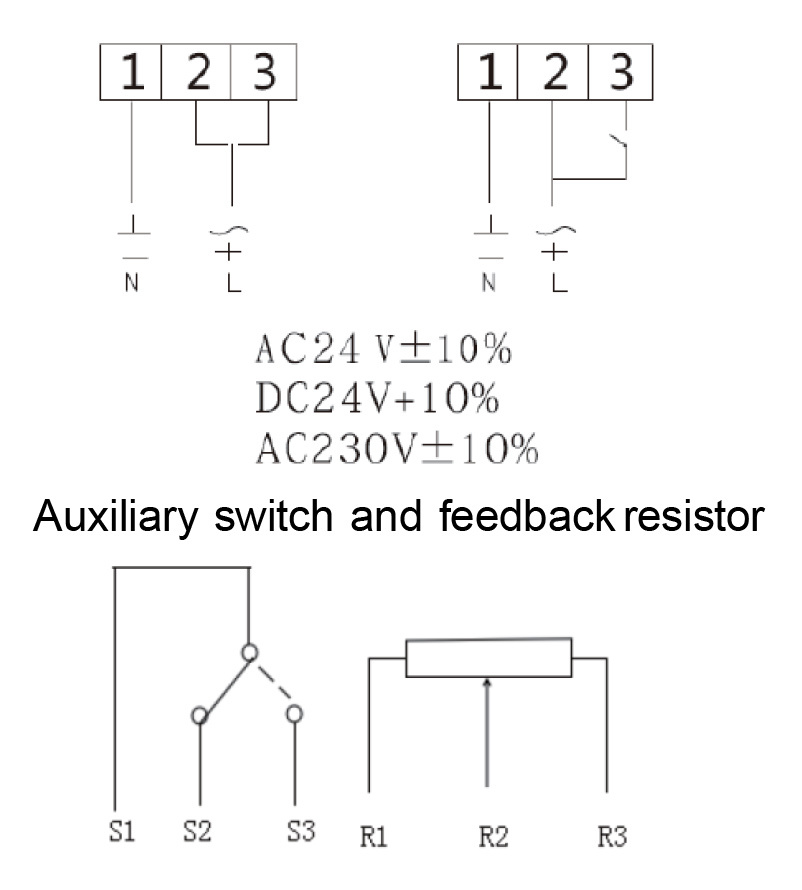

2/3 Floating-Point Wiring Diagram

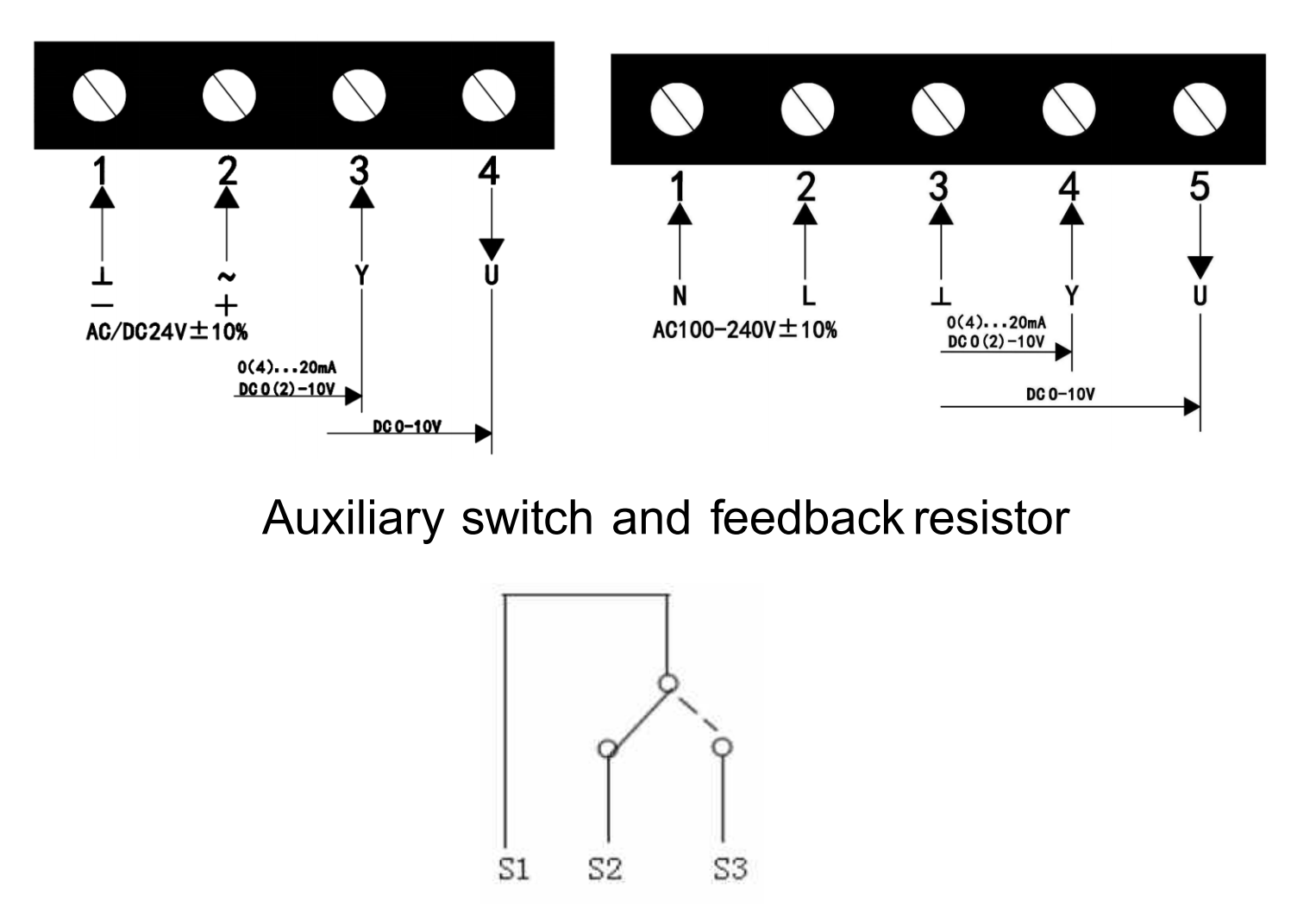

Modulating Wiring Diagram
Internal Micro Switch Adjustment Knob
Rotational Direction Adjustment
Note:Push the direction switch on the shell, it can change the direction of rotation.
-

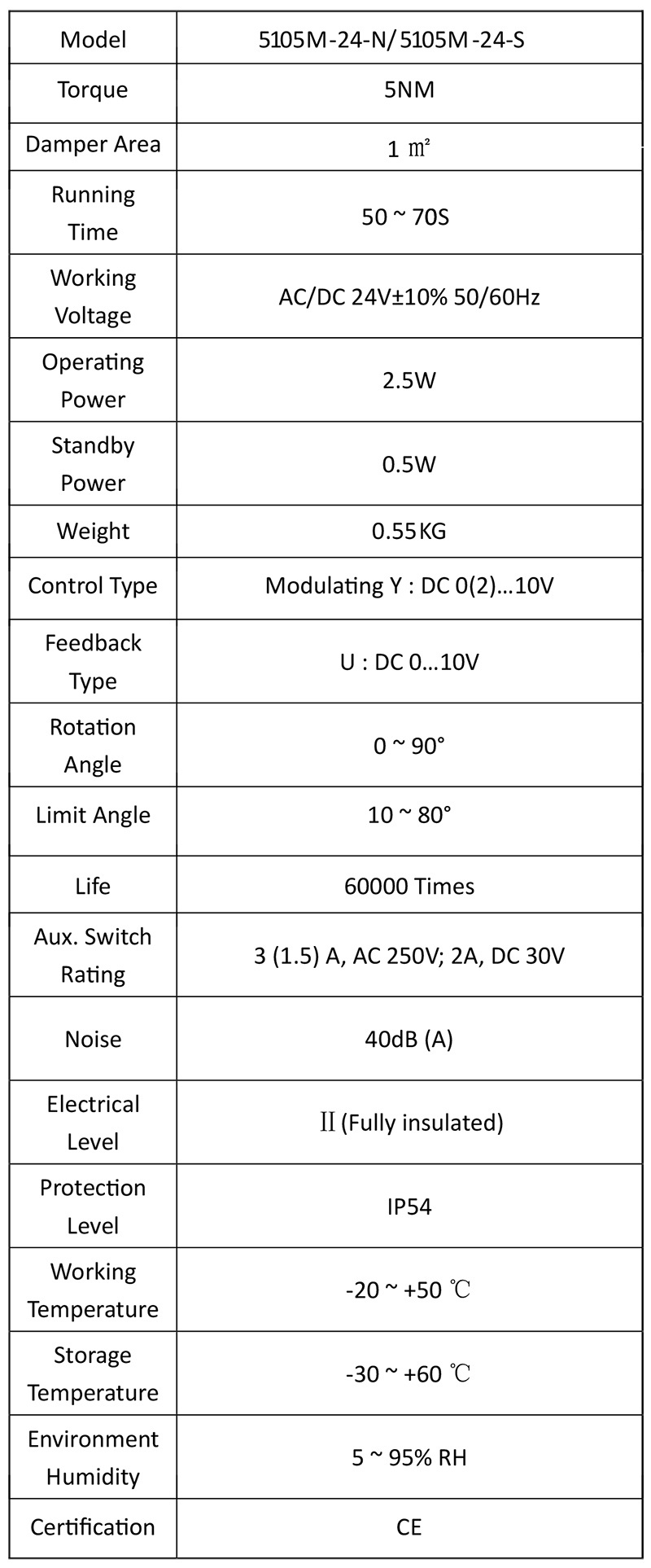

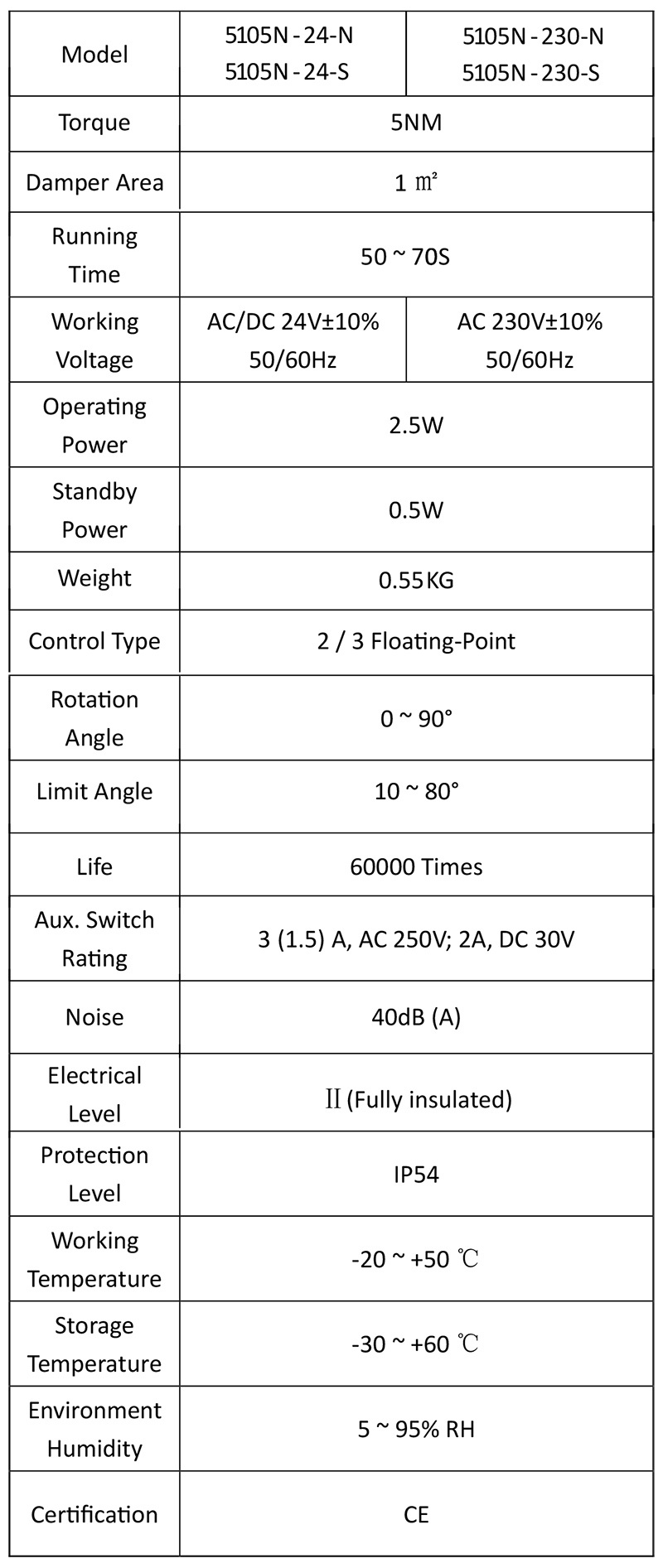

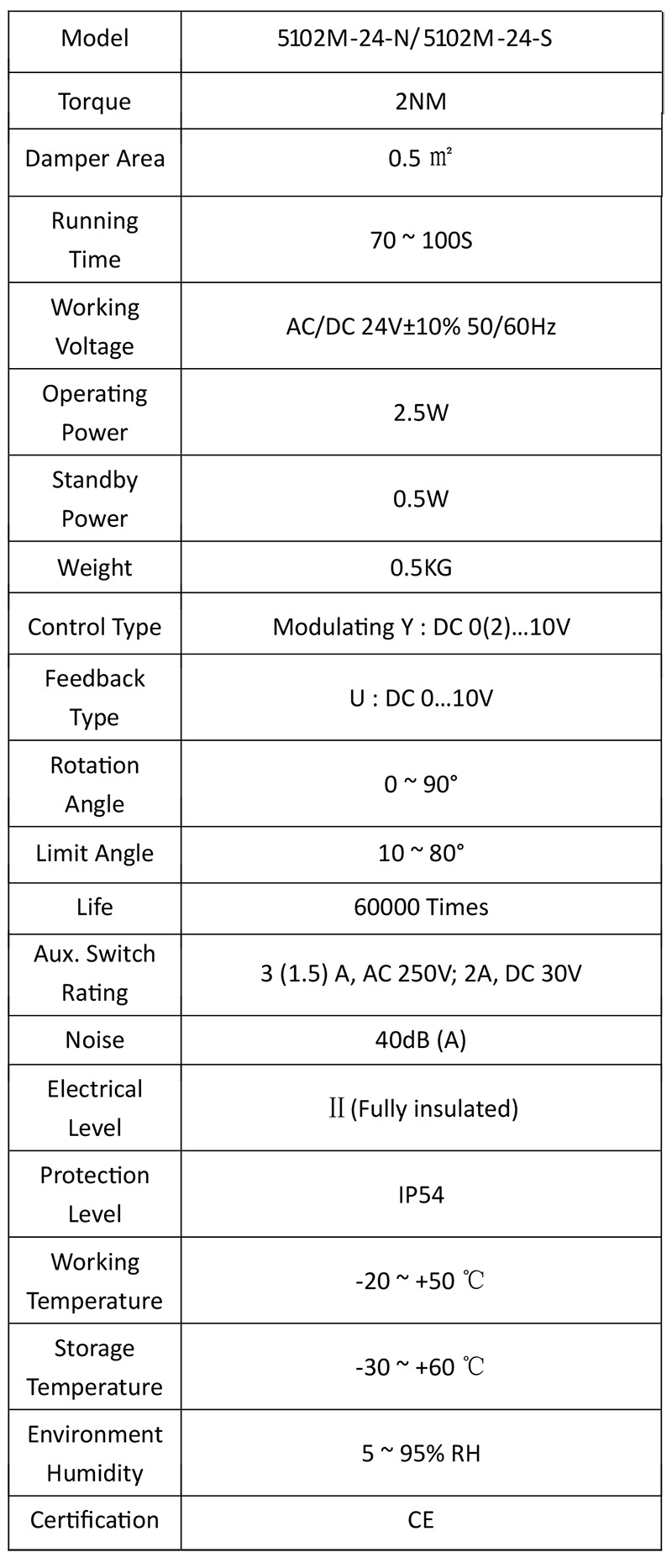

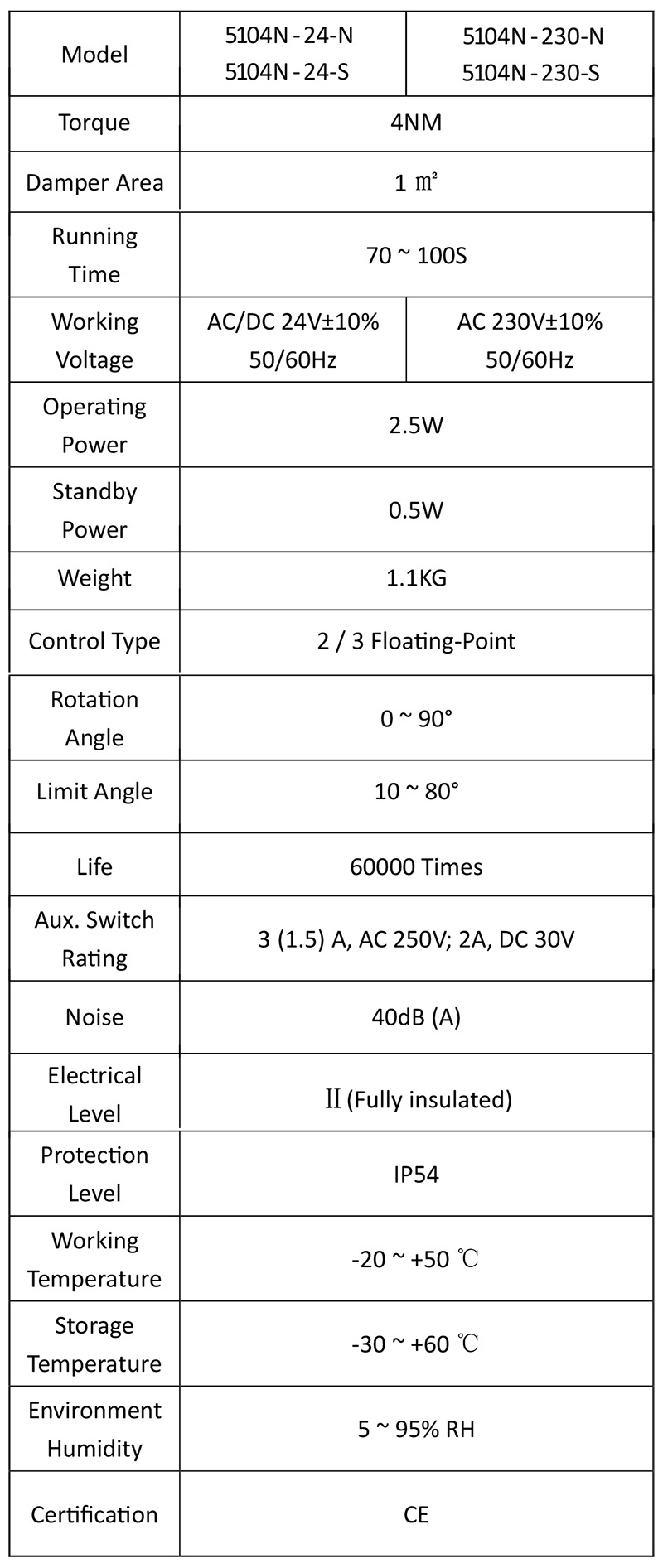

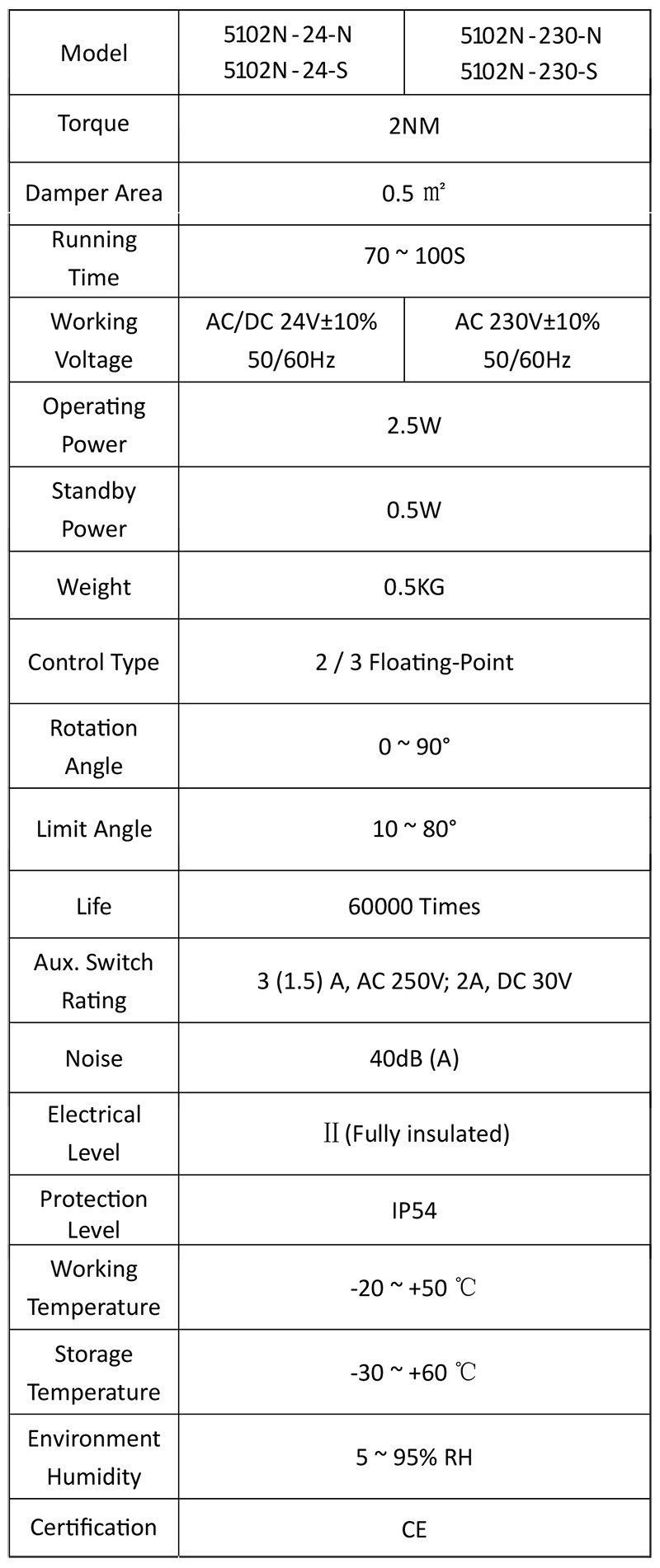

Technical Parameters
-

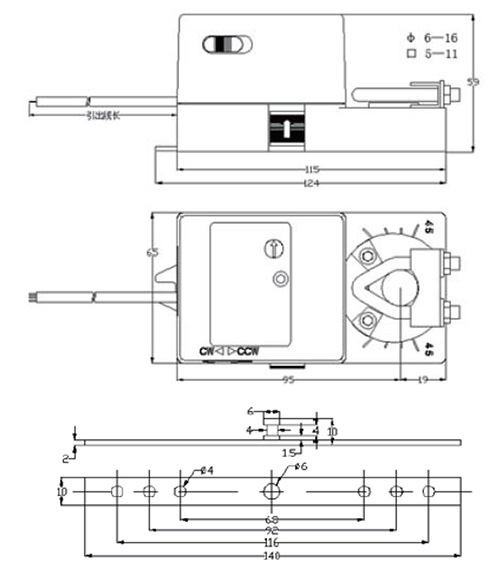

Dimension
Related Documents
-
File size: 1.2MB
