Motorized Valve ILH201
ILH201 series motorized valves are used to control the terminal waterway of air conditioners, Which consist of thermostats that can control the motorized valves, and use speed-down devices and the reposition spring to turn the valves on/off so as to control the media in the pipe and then to control the temperature automatically with the help of the air sent by the fan coil units.
Retail Price：
$ 18
Remaining Stock
10000
Category：
Electric Control Valve Series
Keyword：
Motorized Valve
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Motorized Valve ILH201
ILH201 series motorized valves are used to control the terminal waterway of air conditioners, Which consist of thermostats that can control the motorized valves, and use speed-down devices and the reposition spring to turn the valves on/off so as to control the media in the pipe and then to control the temperature automatically with the help of the air sent by the fan coil units.
Features
★ Stainless base with aluminum case
★ Drive by completely-sealed psychomotor with stainless steel reposition spring
★ Motor Voltage:220±10%VAC 50/60HZ
★ Valve Type: Normally Closed 2-way valve and 3-way diverting valve
★ Customer zed motor voltage and valve body connection typeOperation & Installation
1. Different pressure should be controlled within the range allowed.
2. Install the valve in the places easy for installation and maintenance.
3. Horizontally install the valve in the places void of moisture.
4. When to install the 2-way valve, the B end is for water to flow in, (with A and B marked under the valve).
5. When to install the 3-way valve, the medium will enter from under of the valve (no sign at this end).
Note: End B is normally closed and end A is normally open. Please connect end B to the main pipe and end A to bypass pipe. Please refer to Fig. 3 when to install the valve -
Technical data
Function and Display
1. Power Supply:AC220v±10% 50/60HZ
2. Working medium: hot and cold water
3. Pressure: 1.6Mpa
4. Work Condition:
Temperature around:0~65°C
Humidity range: 10-90% RH
Pipeline Water Temperature:2~94°C

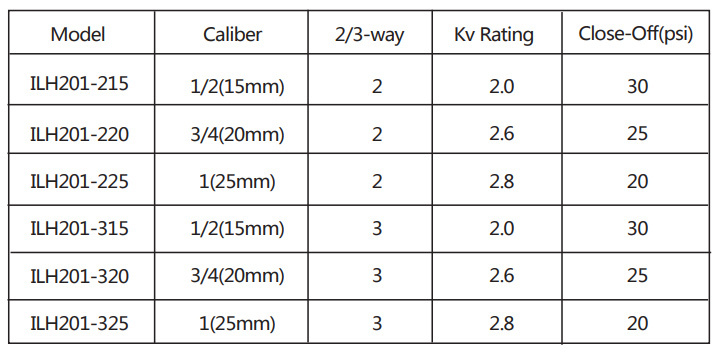

5. See the list below for Model, Specification Connection TypeFlow Capability:
-

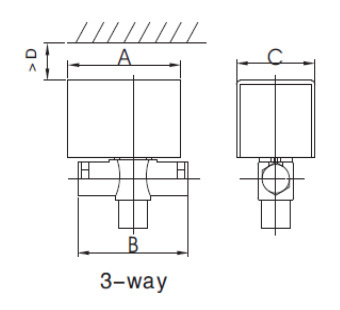

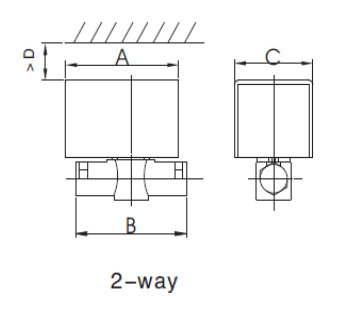

Measurement

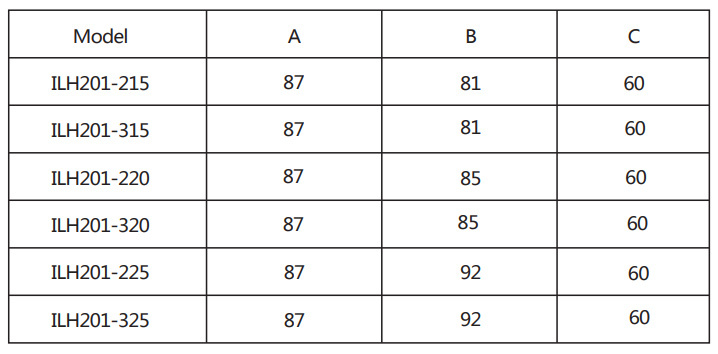

Dimension (mm)
Valve Body Sizes
