Motorized Valve ILH202
The brass valves are primarily designed to regulate the flow of water in response to the demand of a controller in zone and fan coil applications.They can be used in combination with on/off series of fan coil actuators.

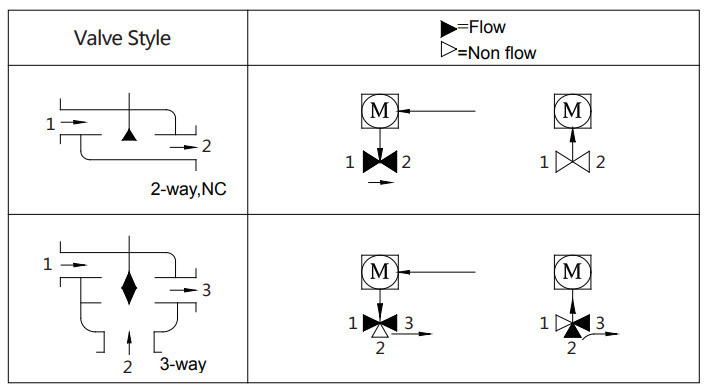

The valves are available in 2 way N.C. (Normally Closed) or 3 way configurations.
Theelectric on/off actuator provides a two positions (open-closed) control.This compact, spring return actuator has 105N minimum seating force in a compact, easy-to install package Connecting power, the motor of actuator drives other parts and overcomes the resistance from spring and push valve stem downwards.When power is off, return spring overcomes pressure from medium, and push stem to close position.
Actuator drives stem moving downward and valve core overcomes resistance from stainless spring and moves away from valve seat, open normally closed port.
Retail Price：
$ 15
Remaining Stock
10000
Category：
Electric Control Valve Series
Keyword：
Motorized Valve
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description

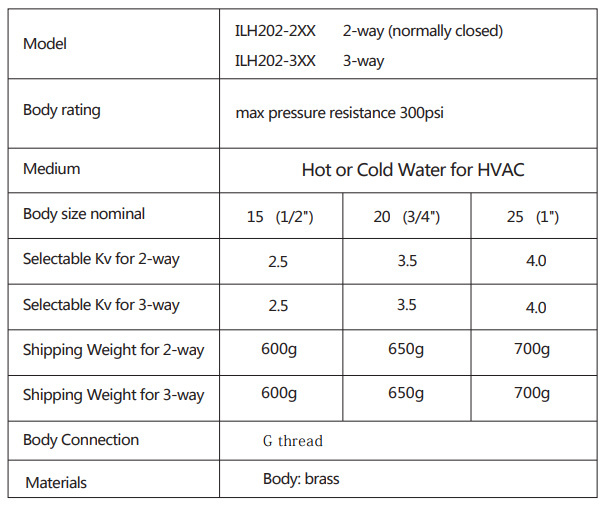

- Technical data
- Measurement
-
- Commodity name: Motorized Valve ILH202
The brass valves are primarily designed to regulate the flow of water in response to the demand of a controller in zone and fan coil applications.They can be used in combination with on/off series of fan coil actuators.<BR> The valves are available in 2 way N.C. (Normally Closed) or 3 way configurations.<BR> Theelectric on/off actuator provides a two positions (open-closed) control.This compact, spring return actuator has 105N minimum seating force in a compact, easy-to install package Connecting power, the motor of actuator drives other parts and overcomes the resistance from spring and push valve stem downwards.When power is off, return spring overcomes pressure from medium, and push stem to close position.<BR> Actuator drives stem moving downward and valve core overcomes resistance from stainless spring and moves away from valve seat, open normally closed port.
Mounting (Combination)
• The fluid direction must same as the direction indicated by the arrow on the body.

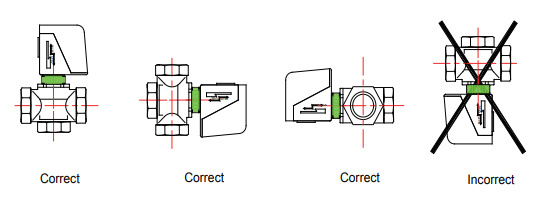

• Mounting position is upright to horizontal, avoiding water dipping into inside.
• Valve must be connected in proper tools with water pipe properly.
• Never use the actuator as a lever to move valve body
• The actuator must not be covered with insulating material.
• Sufficient clearance must be allowed for actuator maintenance or detaching.Warning
• Manual operation should not be over-force avoiding the damage of the actuator.
• The water quality should meet VDI-2035 or similar requirements for HVAC applications. Other media for valve must be approved by us.
• The electric supply to the actuator should be shut off when repairing to avoid possible damage to the equipment, personal injury or shock.
• Do not touch or disconnect wires when power is on.Installation
-

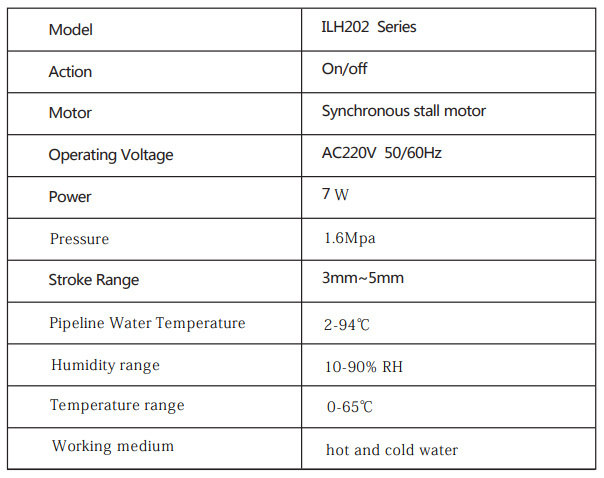

Specification of Motrized Actuator
-

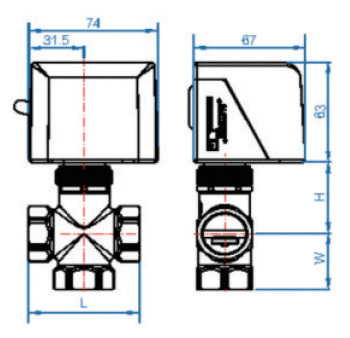

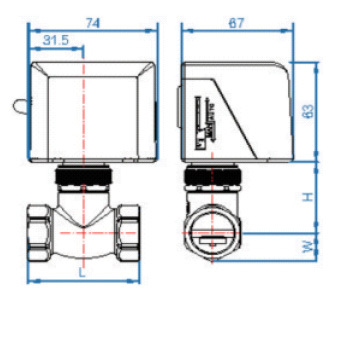

Measurement
