Flow Switch ILH331
ILH311 series flow switch is a automatic element of protecting and controlling flow in the tube that are used in liquid lines carrying water, ethylene glycol, or other liquid not classified as hazardous. Liquid temperature,range:5°C~-120°C Max. working pressure:1.0Mpa;
Retail Price：
$ 7
Remaining Stock
10000
Category：
Automatic Control Terminal Product Series
Keyword：
Flow Switch
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Flow Switch ILH331
ILH311 series flow switch is a automatic element of protecting and controlling flow in the tube that are used in liquid lines carrying water, ethylene glycol, or other liquid not classified as hazardous. Liquid temperature,range:5°C~-120°C Max. working pressure:1.0Mpa;

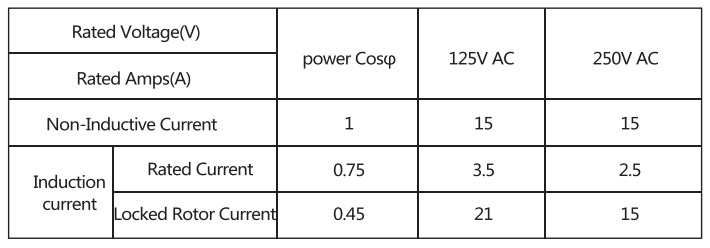

Specifications
* Note: The ILH331 Flow Switch Cannot be used where the liquid in the pipes will drip below the liquid's freezing point, causing an internal freeze-up.
IMPORTANT:
ILH331 Flow Switches are designed for use ONLY as operating controls.
Where an operating Control failure would result in personal injury and/or loss of property, it' s the responsibility of the installer to add devices (Safety, limit controls) or systems (alarm, supervisory systems) that protect against or warn of control failure. -

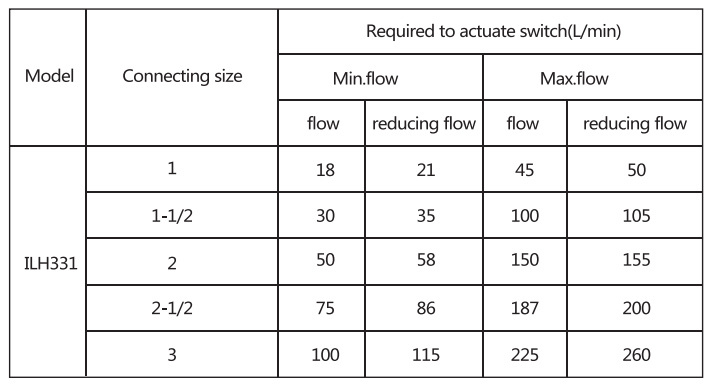

Typical Flow Rates
-
Model
Next：
Related Documents
-
File size: 1.4MB
