Flow Switch ILH332
IILH332 series flow switches are used in measuring and controlling the flow of the liquid in the pipe, such as water, alcohol, etc.,as well as in the places where it needs chain effect or cutout protection. ILH332 series flow switches have SPDT switch, full-sealing structure as its shell, and stainless steel as its inside components, which can assure its use in any conditions. ILH332-A series flow switches are used for caustic fluid liquid,the materials of ILH332-A in contact with th medium is stainless steel. Approvals: DnV,Det norske Veritas(Norway),CQC(China),CE (Europe).
Retail Price：
$ 11.2
Remaining Stock
10000
Category：
Automatic Control Terminal Product Series
Keyword：
Flow Switch
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data

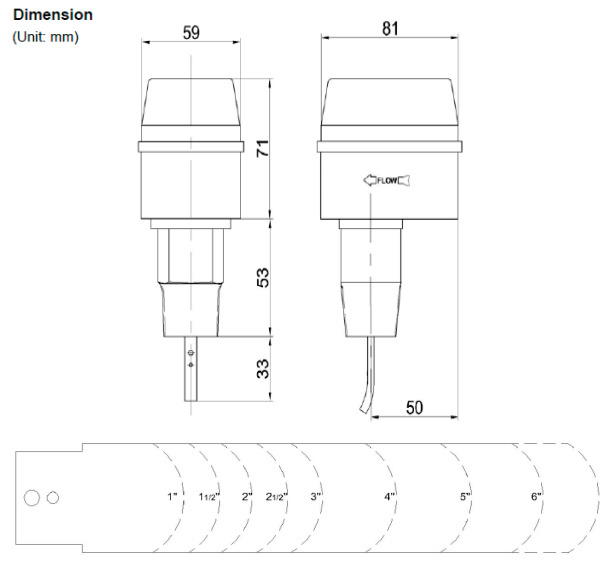

- Measurement
-
- Commodity name: Flow Switch ILH332
IILH332 series flow switches are used in measuring and controlling the flow of the liquid in the pipe, such as water, alcohol, etc.,as well as in the places where it needs chain effect or cutout protection. ILH332 series flow switches have SPDT switch, full-sealing structure as its shell, and stainless steel as its inside components, which can assure its use in any conditions. ILH332-A series flow switches are used for caustic fluid liquid,the materials of ILH332-A in contact with th medium is stainless steel. Approvals: DnV,Det norske Veritas(Norway),CQC(China),CE (Europe).
Specification
Ambient temperature: -20 ~ 50 °C
Liquid temperature: -25 ~ 120°C
Max. liquid pressure: 1.5MPa
-

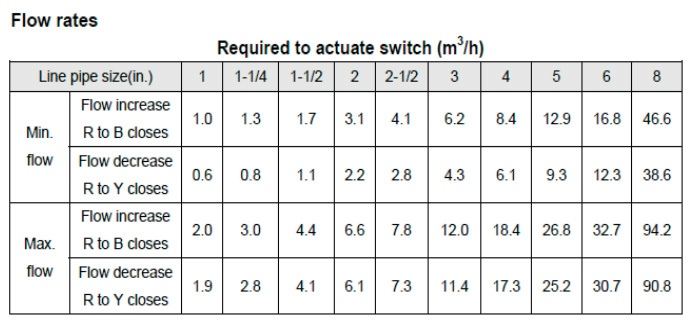

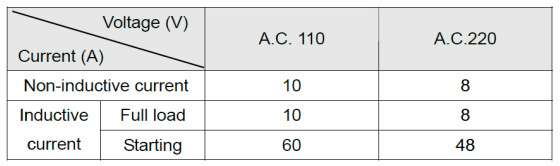

Technical parameter
-
Model
Previous：
Next：
Related Documents
-
File size: 1.4MB
