Frost Protector ILH341
ILH341-T series temperature control is a temperature-controlled electric switch, can be directly connected to single-phrase A.C. motors of up to about 1KW, or installed in the control current circuit of D.C. motors and large A.C. motors. ILH341-T series temperature control has a single pole double throw (SPDT) changeover switch. The position of switch depends on temperature control setting and bulb temperature.
Retail Price：
$ 16
Remaining Stock
10000
Category：
Automatic Control Terminal Product Series
Keyword：
Frost Protector
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Frost Protector ILH341
ILH341-T series temperature control is a temperature-controlled electric switch, can be directly connected to single-phrase A.C. motors of up to about 1KW, or installed in the control current circuit of D.C. motors and large A.C. motors. ILH341-T series temperature control has a single pole double throw (SPDT) changeover switch. The position of switch depends on temperature control setting and bulb temperature.

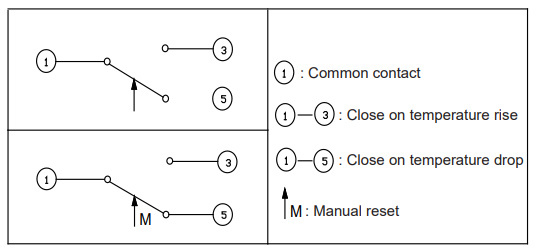

Wiring Diagram
-
Technical parameter

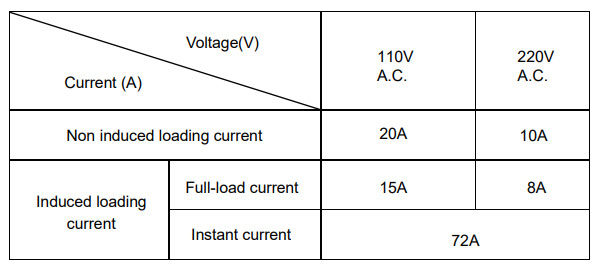

Electricity Rating
Model
Note: 1. Ts---Itself temperature; Tb---Bulb temperature
2. Standard length of capillary tube is 1m. -

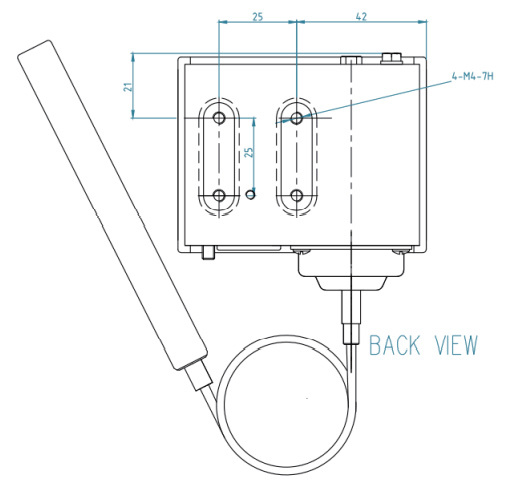

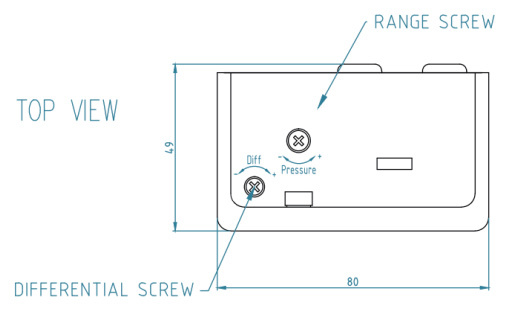

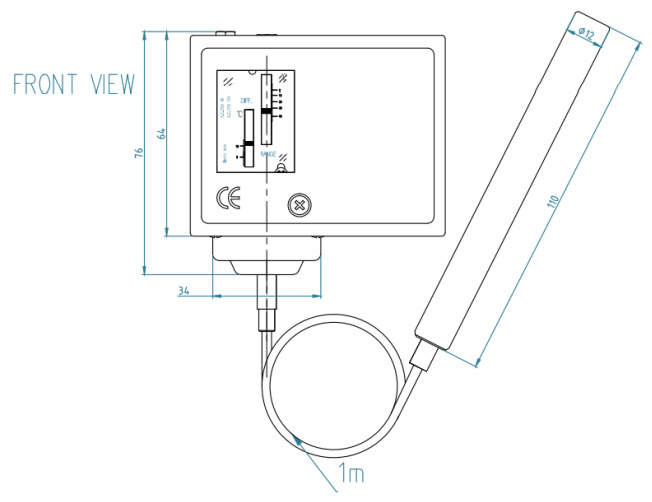

Bracket Dimension(mm)
