Screwed Globe Valve ILHV and ILXV
The globe valves in cast-iron serie ILHV and ILXV are used in heating, refrigeration and air-conditioning systems for the flow control of heated or chilled water for domestic and industrial applications.
Retail Price：
$ 0
Remaining Stock
Category：
Electric Control Valve Series
Keyword：
Screwed Globe Valve
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Screwed Globe Valve ILHV and ILXV
The globe valves in cast-iron serie ILHV and ILXV are used in heating, refrigeration and air-conditioning systems for the flow control of heated or chilled water for domestic and industrial applications.
Installation

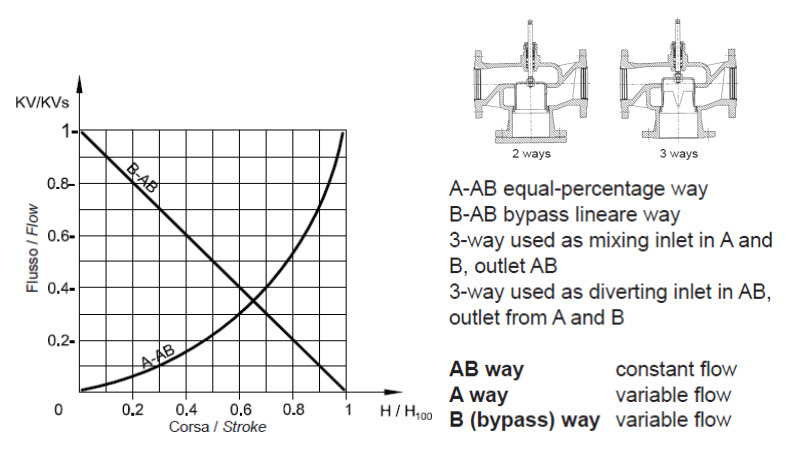

Control flow characteristics
Caution

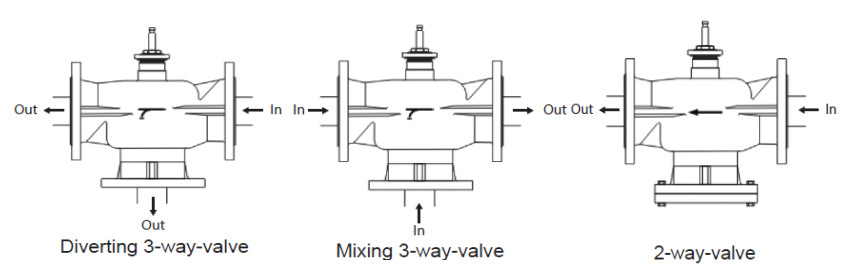

Before valves are mounted, make sure that pipes are clean, free from welding slags, that are perfectly lined up with valve body and not subjected to vibrations. The valve can be mounted in any position except upside-down. While assembling, respect the ?ow directions indicated by the arrows located on the valve body.
When stem is up, the direct way is closed, with stem down direct way is open. -
Technical data
Fluids type:Hot and cold water (with glycol max.50%)
Fluid temperature:-1 0...120°C
Nominal pressure:1600 kPa max (16 bar)
Control flow characteristics:Equal-percentage (linear on angle way)
Rangeability: 50: 1
Leakage:< 0,1% of KVs
Connections: Flange
Installation position:Horizontal or vertical
Body: Cast-iron G25
Plug: Brass
Valve stem:Stainless steel 302
Stem packing:PTFE
(*) The values in the brackets are the max. dfferential pressure when valve is fully closed and actuator is still able to open or close the valve with security. In order to avoid wear between plug and seat, we recommend not to overcome the nominal values.
-

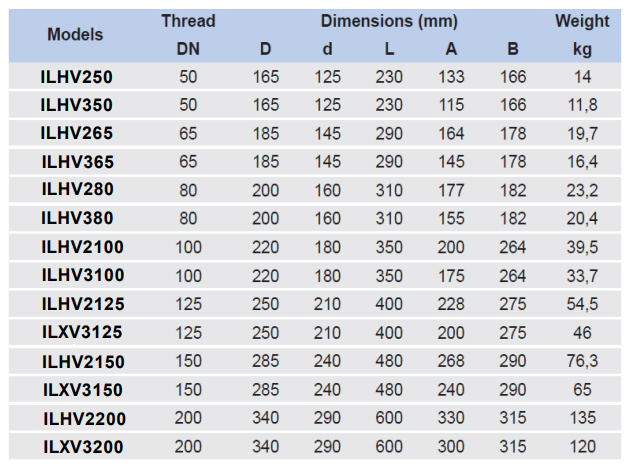

Dimensions and weights
