Screwed Globe Valve ILJV
The globe valves in brass serie ILJV are used in heating, refrigeration and air-conditioning systems for the flow control of heated or chilled water for domestic and industrial applications. The valves are motorized by the electric actuators serie AVG at 600 and 1000 N.
Retail Price：
$ 0
Remaining Stock
Category：
Electric Control Valve Series
Keyword：
Screwed Globe Valve
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Screwed Globe Valve ILJV
The globe valves in brass serie ILJV are used in heating, refrigeration and air-conditioning systems for the flow control of heated or chilled water for domestic and industrial applications. The valves are motorized by the electric actuators serie AVG at 600 and 1000 N.
Installation

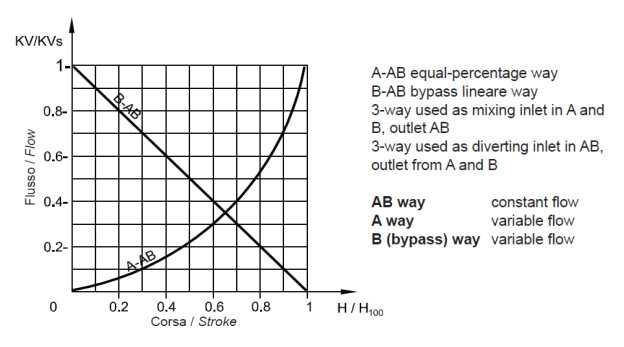

Control flow characteristics
Caution
Before valves are mounted, make sure that pipes are clean, free from welding slags, that are perfectly lined up with valve body and not subjected to vibrations. The valve can be mounted in any position except upside-down. While assembling, respect the ?ow directions indicated by the arrows located on the valve body.

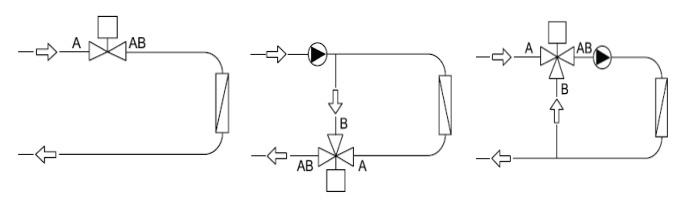

In the 2-way valve, when stem is up, the direct way is open, with stem down direct way is closed. In the 3-way valve, when stem is up, the direct way is closed, with stem down direct way is open.
-
Techinical Data
Fluids type:Hot and cold water (with glycol max. 50%)
Fluid temperature:-10...100°C
Nominal pressure:1600 kPa max (16 bar)
Control flow characteristics:Equal-percentage (linear on angle way)
Rangeability: 50 : 1
Leakage:< 0,05% of KVs
Connections:G female thread
Installation position:Horizontal or vertical
Body:Brass Plug:Ottone
Valve stem:Stainless steel 302
Stem packing:PTFE

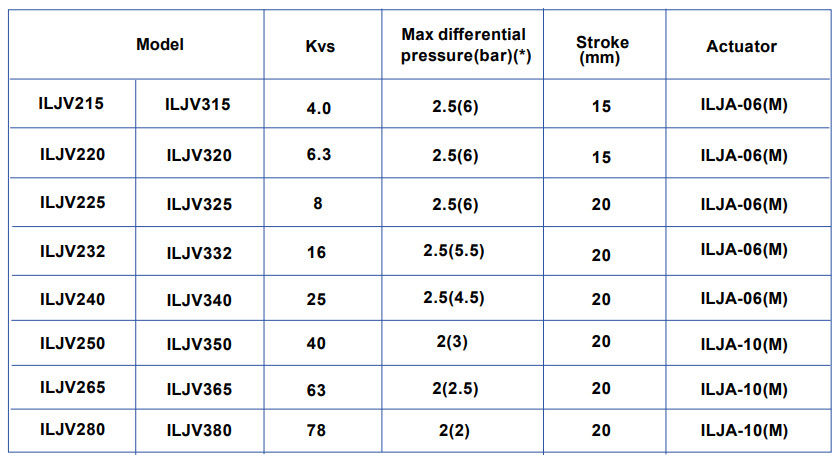

(*) The values in the brackets are the max. dfferential pressure when valve is fully closed and actuator is still able to open or close the valve with security. In order to avoid wear between plug and seat, we recommend not to overcome the nominal values.
-

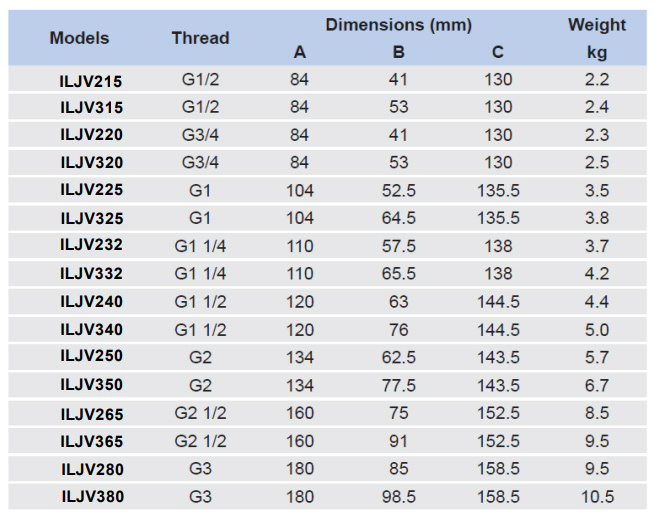

Dimensions and weights
