Wireless Heating Thermostat ILH106
ILH106 is Radio Controlled Room Thermostat which requires no wiring and can be fitted Heating H106 5 4 3 in any normal operating environment within a typical 30 meter range of the TR205 RF Transceiver. It is available for Non-programmable and Programmable.
TR205 RF Transceiver should be mounted on a vertical flat surface near the boiler or central heating wiring centre. Do not place it too close to objects which might interfere with the radio signal. It is preferable to mount the transceiver such that an imaginary straight line between it and the transmitter thermostat is not obscured by the boiler or any other large metal objects.
Retail Price：
$ 0
Remaining Stock
Category：
Fan Coil Thermostats Series
Keyword：
Wireless Heating Thermostat
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Wireless Heating Thermostat ILH106
ILH106 is Radio Controlled Room Thermostat which requires no wiring and can be fitted Heating H106 5 4 3 in any normal operating environment within a typical 30 meter range of the TR205 RF Transceiver. It is available for Non-programmable and Programmable.<BR> TR205 RF Transceiver should be mounted on a vertical flat surface near the boiler or central heating wiring centre. Do not place it too close to objects which might interfere with the radio signal. It is preferable to mount the transceiver such that an imaginary straight line between it and the transmitter thermostat is not obscured by the boiler or any other large metal objects.

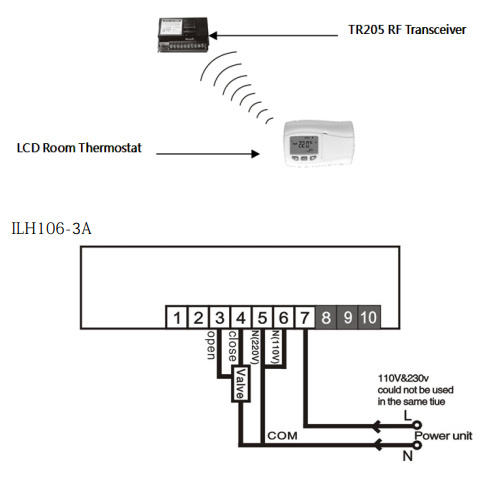

Wiring Diagram

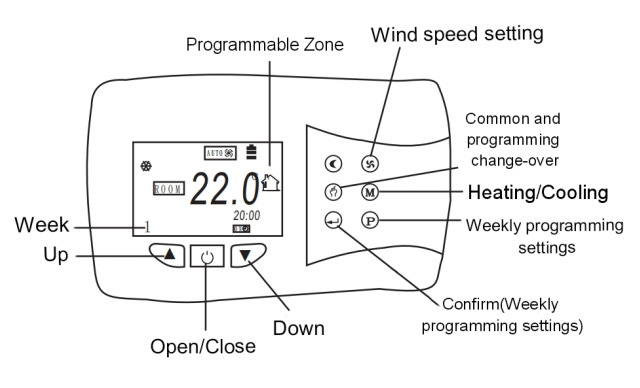

Symbols

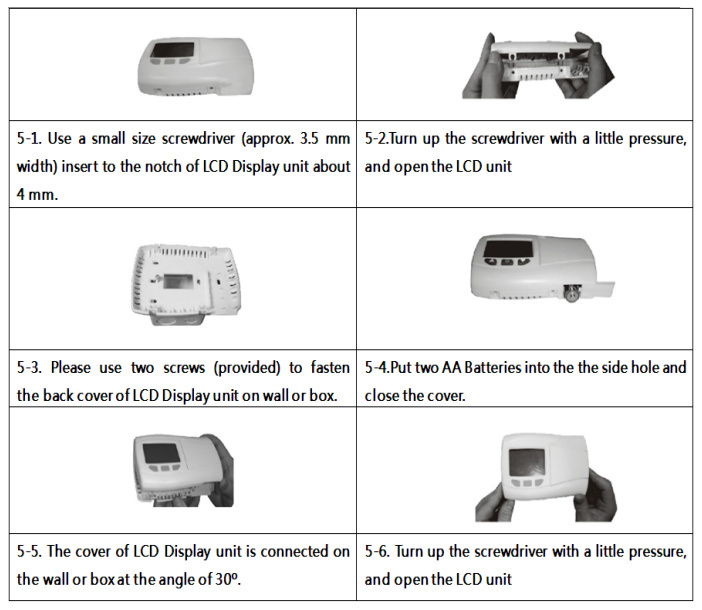

Installation
-
Technical Data
Work Voltage: 3V±0.2V(DC)
Consumption: <0.06W
Load Current: 3A
Accuracy: ±0.5oC
Set-point Range: 10.0- 30.0 ℃
Timing Error: <1%
Battery life: one year (2100 mah power)
Thermostat Size: 136mm x 90mm x 30mm
Transceiver Size: 130mm x 75mm x 45mm
Note: we won’t provide batteries -
