Room Thermostat/Controller ILH107
ILH107 Series Room Thermostat/Controller takes use of the most advanced international microcomputer control CMOS chip. It can inspect the environment temperature through the internal or external NTC sensor. By comparing the ambient room temperature with setting temperature, it can control the valve to reach the comfortable and constant temperature.
Retail Price：
$ 0
Remaining Stock
Category：
Fan Coil Thermostats Series
Keyword：
Room Thermostat/Controller
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Room Thermostat/Controller ILH107
ILH107 Series Room Thermostat/Controller takes use of the most advanced international microcomputer control CMOS chip. It can inspect the environment temperature through the internal or external NTC sensor. By comparing the ambient room temperature with setting temperature, it can control the valve to reach the comfortable and constant temperature.
Characteristics
● NTC
● Digital LCD Display, EL Backlight
● Adjustable manual 3-speed or automatic fan speed control; High, Medium and Low
● Attractive modern styling and smart out-looking(12mm only for surface board)
● Data Memory. If the power cut off accidentally, it could be continuing to work by order when power turns
● When reach set-point, the motorized valve closed, but the fan coil turn to slow.

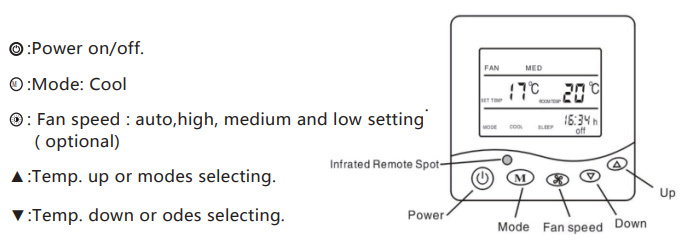

Keys and Operation

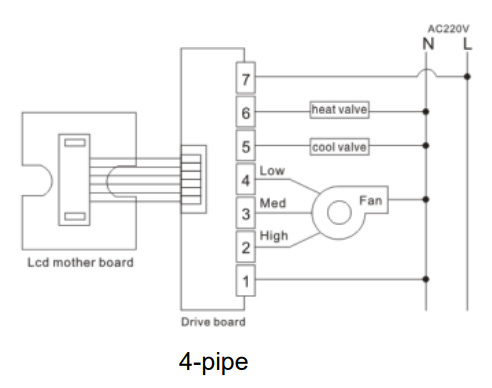

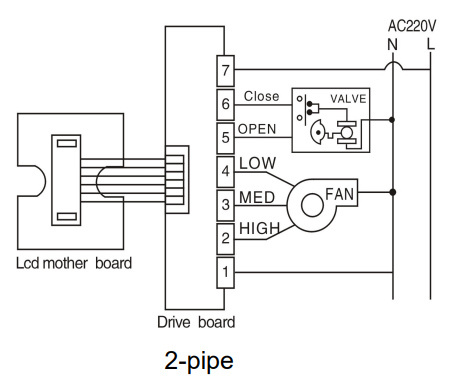

Wiring Diagram

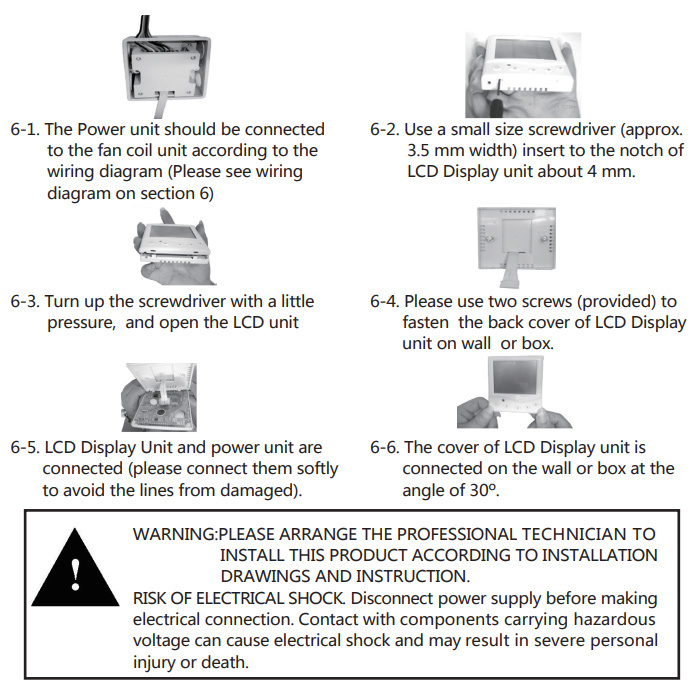

Installation Instruction
Product & Accessories:
LCD Driver 1pc
Power driver 1pc
Install Instruction 1pc
Screw 4pcs
Power Board 1pcWARNING: RISK OF ELECTRICAL SHOCK. Ground the thermostat according to local, national, and regional regulations. Failure to ground the thermostat may result in electrical shock and severe personal injury or death.

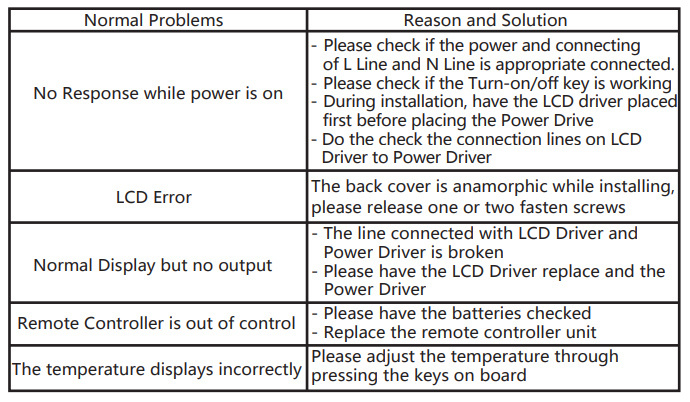

Troubleshooting
Please make sure again if the wiring connection of L and N Line are installed correctly and the mode of heating and cooling match with setting requested.
-
Technical Data
1. Power Supply: 220VAC± 10% 50/60Hz
2. Consumption: <1.5W
3. Load Current: < A
4. Accuracy: ±1ºC
5. Set-point Range:10-30℃
6. Timing Error: <1%IMPORTANT:
Do not install this thermostat in condensing, wet or damp environment, Moisture may cause damage to the thermostat / controller -
Measurement
