Intelligent Central Air-Condition Thermostat ILH109
The I Series thermostat, with multi purpose updated and computerized controller function,and by using inner integrated temperature sensor and motorized fan together, detecting the room’s temperature condition, at the same time comparing to user desire temperature degree,able to select the appropriate flow rate of warm or cold air capacity automatically, so therefore produce a comfy room condition. The product itself has passed government standard quality and CE international standard electricity safety. To be used for controlling and stabilizing room’s temperature in commercial, industria and household environment.
Retail Price：
$ 0
Remaining Stock
Category：
Fan Coil Thermostats Series
Keyword：
Intelligent Central Air-Condition Thermostat
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Intelligent Central Air-Condition Thermostat ILH109
The I Series thermostat, with multi purpose updated and computerized controller function,and by using inner integrated temperature sensor and motorized fan together, detecting the room’s temperature condition, at the same time comparing to user desire temperature degree,able to select the appropriate flow rate of warm or cold air capacity automatically, so therefore produce a comfy room condition. The product itself has passed government standard quality and CE international standard electricity safety. To be used for controlling and stabilizing room’s temperature in commercial, industria and household environment.
Characteristics
• NTC
• Digital LCD Display, EL Backlight
• Setting Turn-on/off within 24 hours(optional)
• Adjustable manual 3-speed or automatic fan speed control; High, Medium and Low
• Attractive modern styling and smart out-looking(12mm only for surface board)
• May connect to main system
• Manual operation available
• Data Memory. If the power cut off accidentally, it could be continuing to work by order when power turnsDimension
Installation Instruction

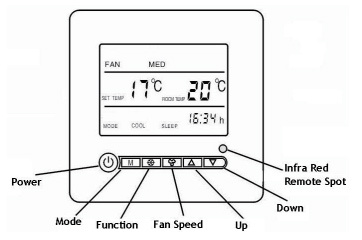

Keys and Operating Instruction
Characteristics
1 Turn On/Off the controller: Press Button “ Power ”, choose the function of “ Turn On” or “ Turn Off” you desire.
2 (Optional) Infra Red RemoteSpotis a remote control receiver spot. User should be aiming approximately within 60º of range.
3 Timer Adjustment: Sleeping function Switch to Sleeping Function Confirm “ ▲” Cancel “ ▼”
-Timing Turn-on:
Switch to timing turn-on
Set time up
Set time down
Confirm after 5 sec-Timing Turn-off:
Switch to timing turn-off
Set time up
Set time down
Confirm after 5 sec-Present time and timer adjustment
Press “ Mode “ buttons for 3 sec for starting the time setting.
Use “ ▲” & “ ▼” to adjust the time and after finish, please wait for 5 second

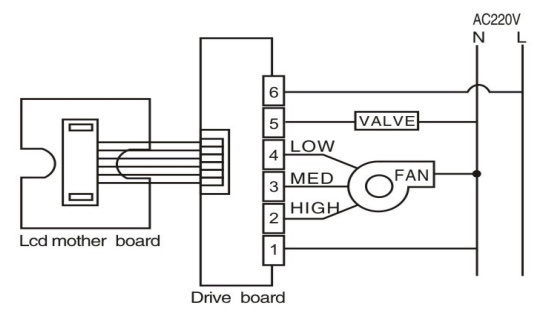

Wiring Diagram
Room Temperature Measurement

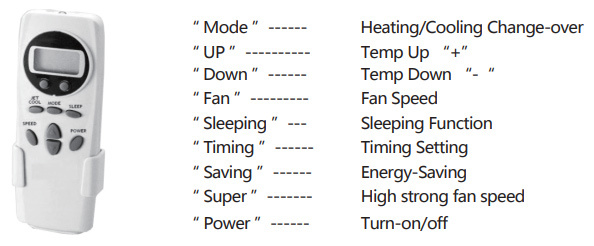

To Set and measure the room/ambient temperature, during Thermostat turn off, press and hold button“Mode”button &“ Fan”button at the same time for almost 3 sec and then adjust the appropriate ambient and room temperature by using“▲” for temperature up &“ ▼”fortemperature down and confirm temperature by turning on the unit.Keys and Function of Remote Controller (optional)
-
Technical Data
Power Supply: 220VAC± 10%, 50/60Hz
Consumption: <1.5W
Load Current: <2A(0.8A)
Accuracy: ±1ºC
Set-point Range: 10ºC - 30ºC
Timing Error: <1%

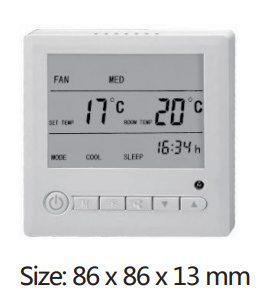

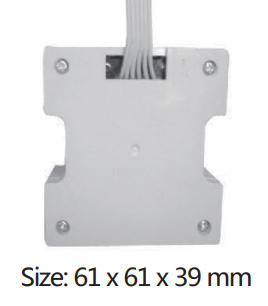

Size: 86mm X 86mm X 13mm(Lx W x T)
Output Consumption: <200 W
Inductive load：1.5A
Resistive load： 3AIMPORTANT:Do not install this thermostat in condensing, wet or damp environment, Moisture may cause damage to the thermostat.
-
Measurement
