50 Series Standard Damper Actuator
This Damper Actuator is used in Heating/Ventilation conditioning Automation control.
Retail Price：
$ 21.44
Remaining Stock
10000
Category：
Damper Actuator Series
Keyword：
Series Damper Actuator
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: 50 Series Standard Damper Actuator
This Damper Actuator is used in Heating/Ventilation conditioning Automation control.
Model Explanation
Features
■ Convenient install: Fix on throttle axis through universal holding device
■ Manual control: Manual control through buttons available in case。
■ High reliability: Actuator itself has ability of over-loading protect.
■ It stops automatically without a limit switch
■ Mechanical limit: A mechanical limit operator is placed inside
■ Output signal: Output a signal amount 0-100%For 5002/04/05 Damper Actuators:
Wiring Diagram

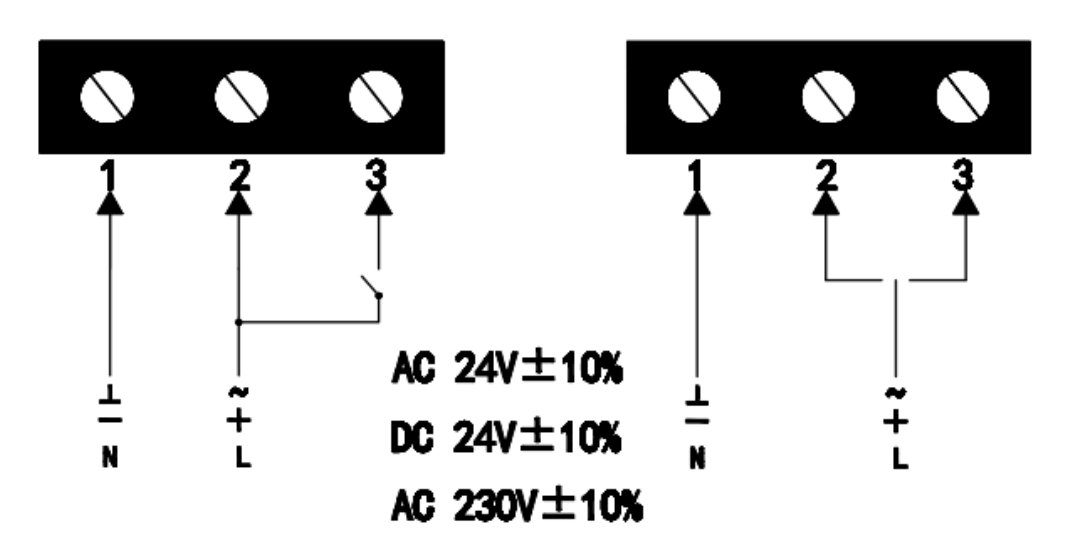

2 / 3 Floating point

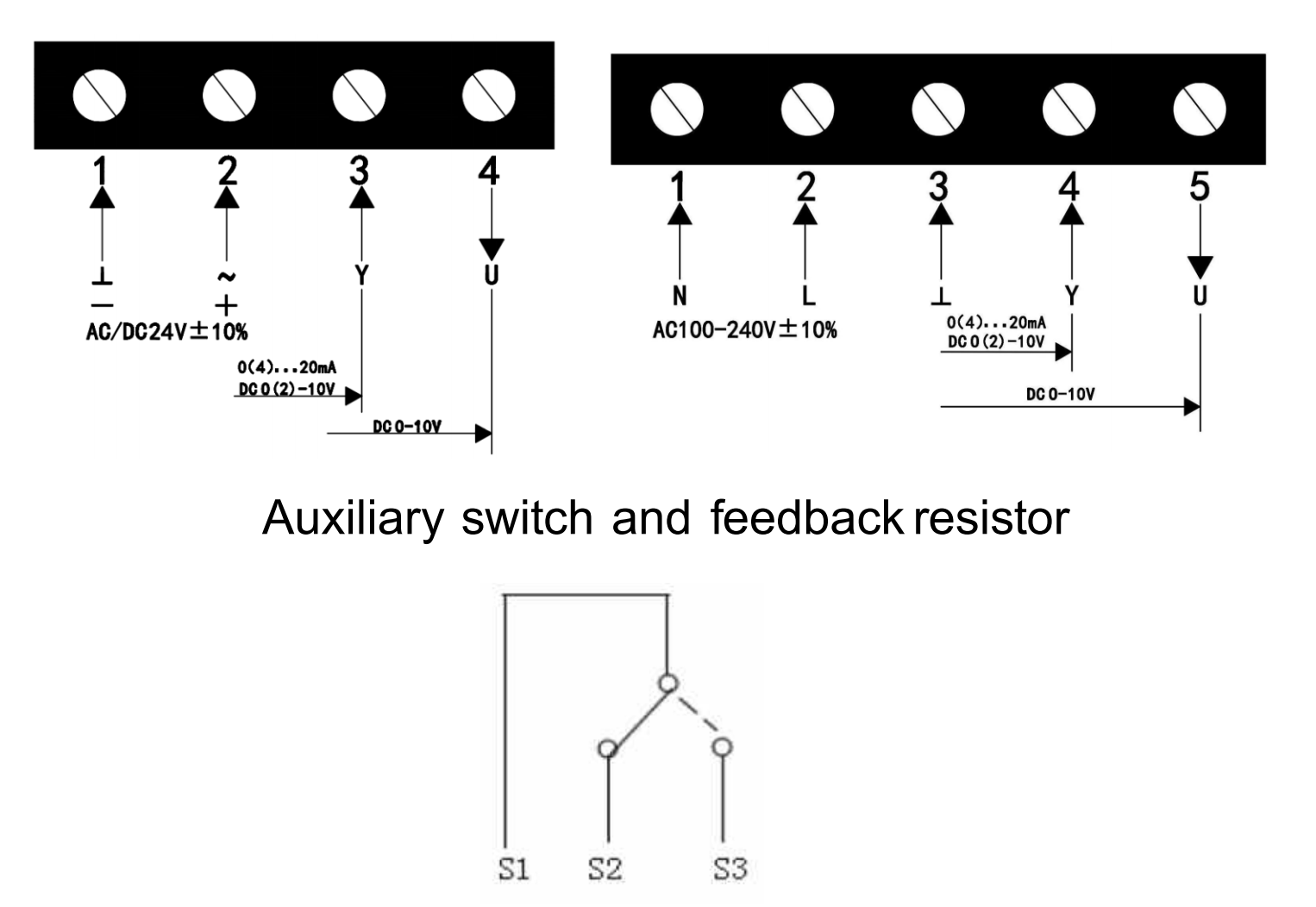

Modulating

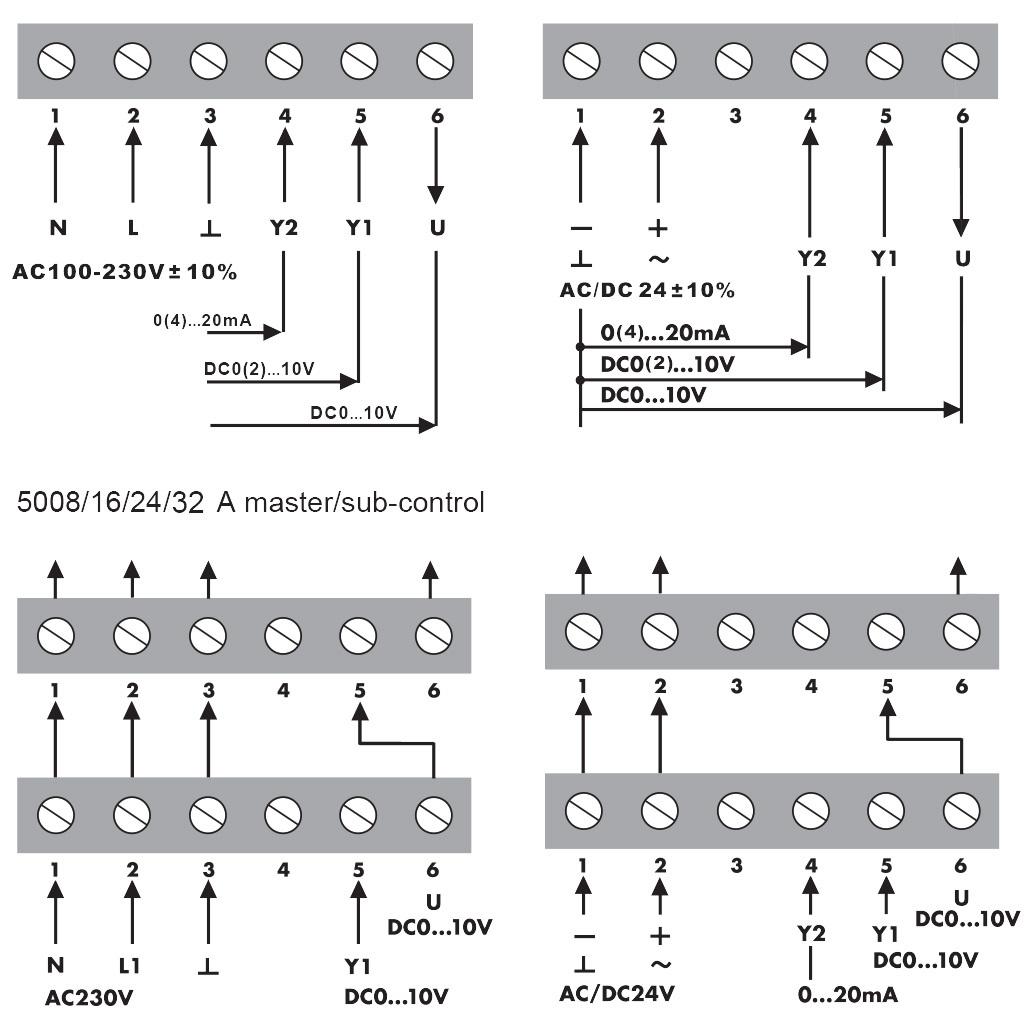

For 5008/16/24/32 Damper Actuators:
Wiring Diagram

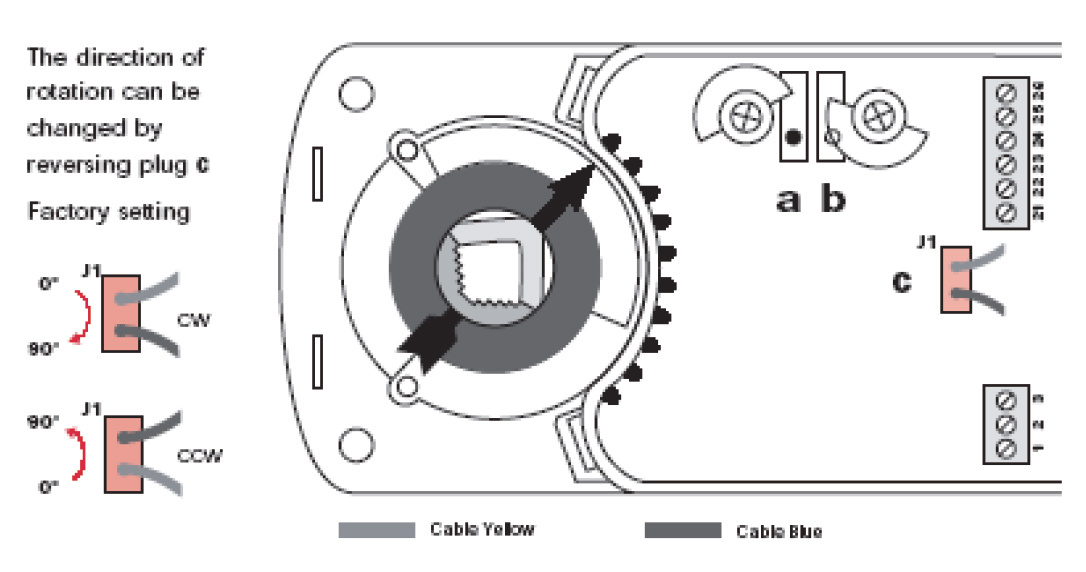

Selection of Rotating Direction
Auxiliary Switch Adjustment
-

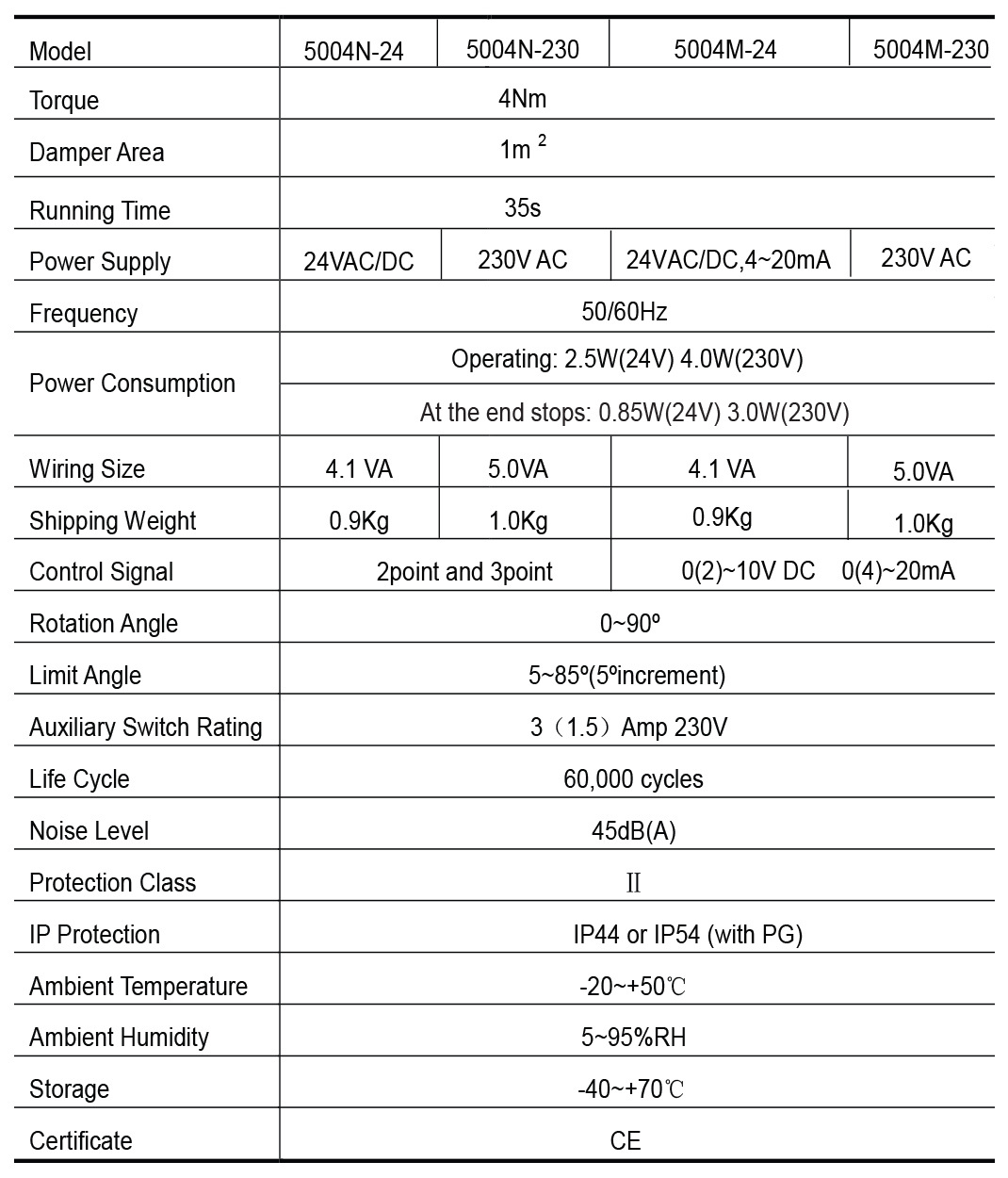

Technical Parameters
-
Dimension

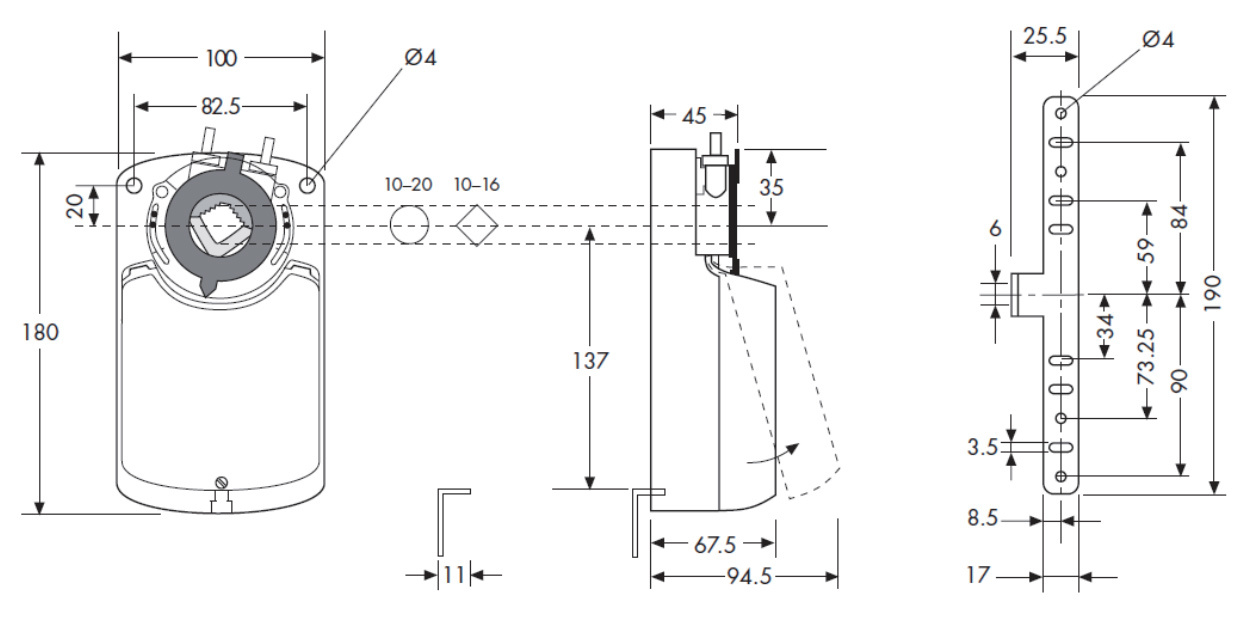

5002/04/05 Damper Actuators:

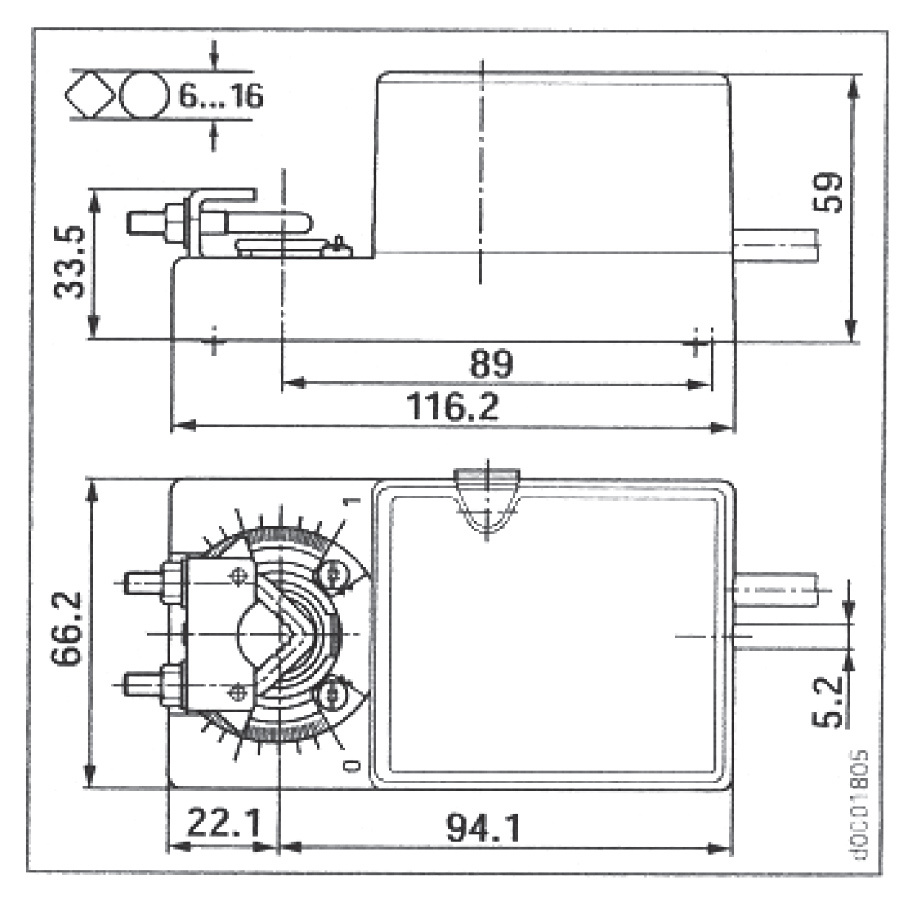

5008/16/24/32 Damper Actuators:
