40 Series Fire Smoke Damper Actuator
■ PHC 40 Series Fire Smoke damper actuator Series are designed specifically for Fire and Smoke application. ■ PHC high quality damper actuators are developed for use with fire and smoke damper. The actuator motorized the damper or other devices when power on and spring back to it original position when power is cut off or trip by the thermal sensor. ■ For the operation of air dampers that perform safety functions(e.g. frost and smoke protection, hygiene, etc.). The actuator moves the damper to its normal working position while tensioning power supply is interrupted, the damper back to its safe osition.
Retail Price：
$ 30.68
Remaining Stock
10000
Category：
Damper Actuator Series
Keyword：
Series Fire Smoke Damper Actuator
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: 40 Series Fire Smoke Damper Actuator
■ PHC 40 Series Fire Smoke damper actuator Series are designed specifically for Fire and Smoke application. ■ PHC high quality damper actuators are developed for use with fire and smoke damper. The actuator motorized the damper or other devices when power on and spring back to it original position when power is cut off or trip by the thermal sensor. ■ For the operation of air dampers that perform safety functions(e.g. frost and smoke protection, hygiene, etc.). The actuator moves the damper to its normal working position while tensioning power supply is interrupted, the damper back to its safe osition.

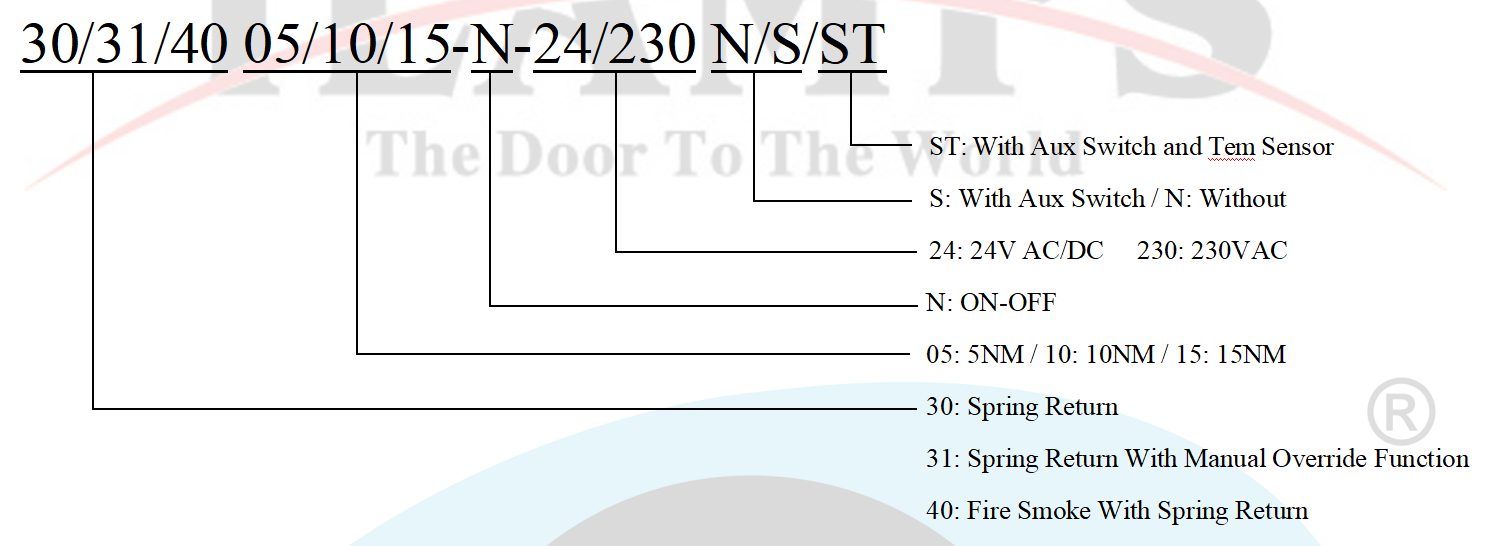

Model Explanation
Features
■ 2 points on/off control
■ Damper Size up to 0.75 m²
■ Voltage AC/DC 24V and AC 230V available
■ Shaft dimension Form Fit 12x12mm square
■ Manual Over ride by crank handle when required

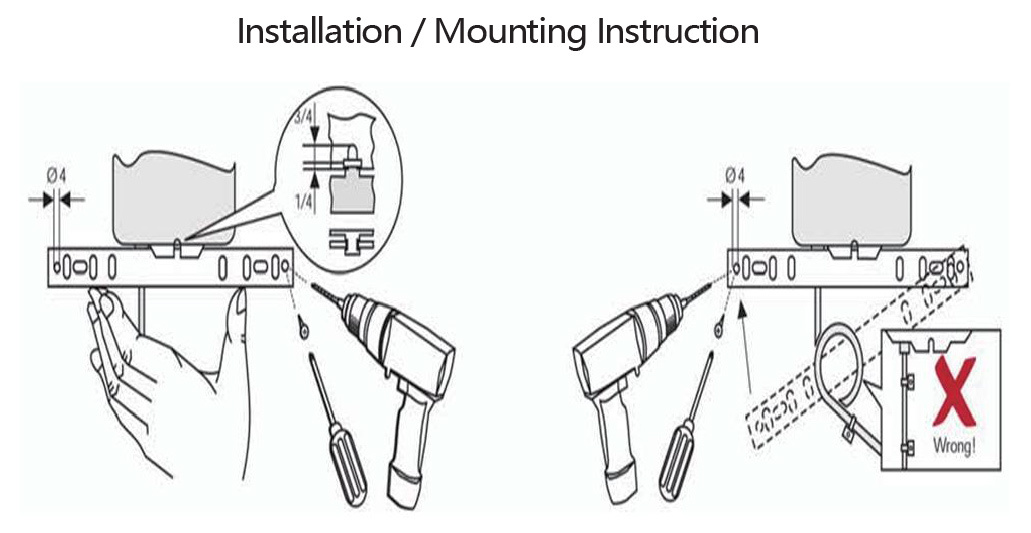

■ Anti-rotation bracket provided for stability
■ Selectable direction of rotation by reversing actuator

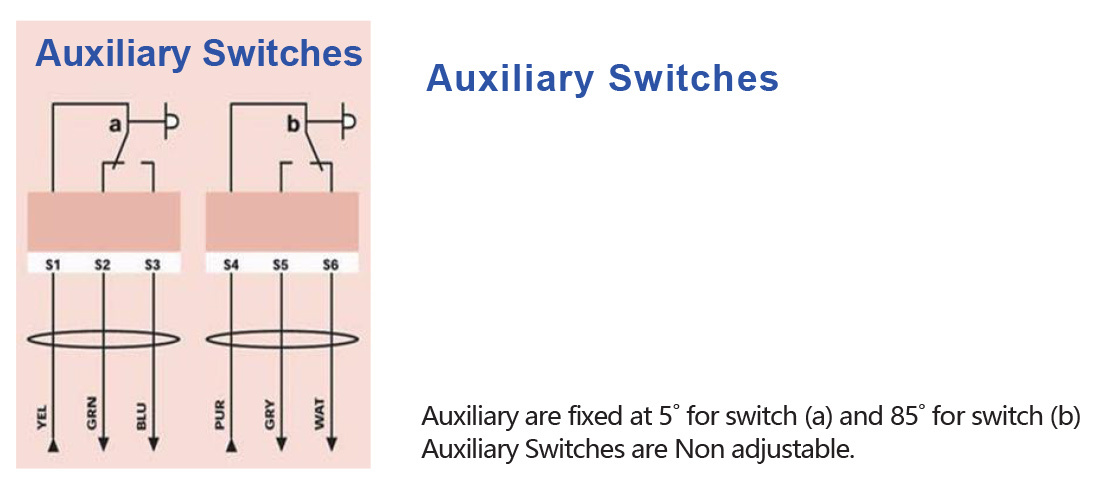

■ 2 SPDT Fixed auxiliary switches as Standard
■ Energy saving at end stops
■ Actuators with 1m cable connection
■ Thermal Sensor when requested

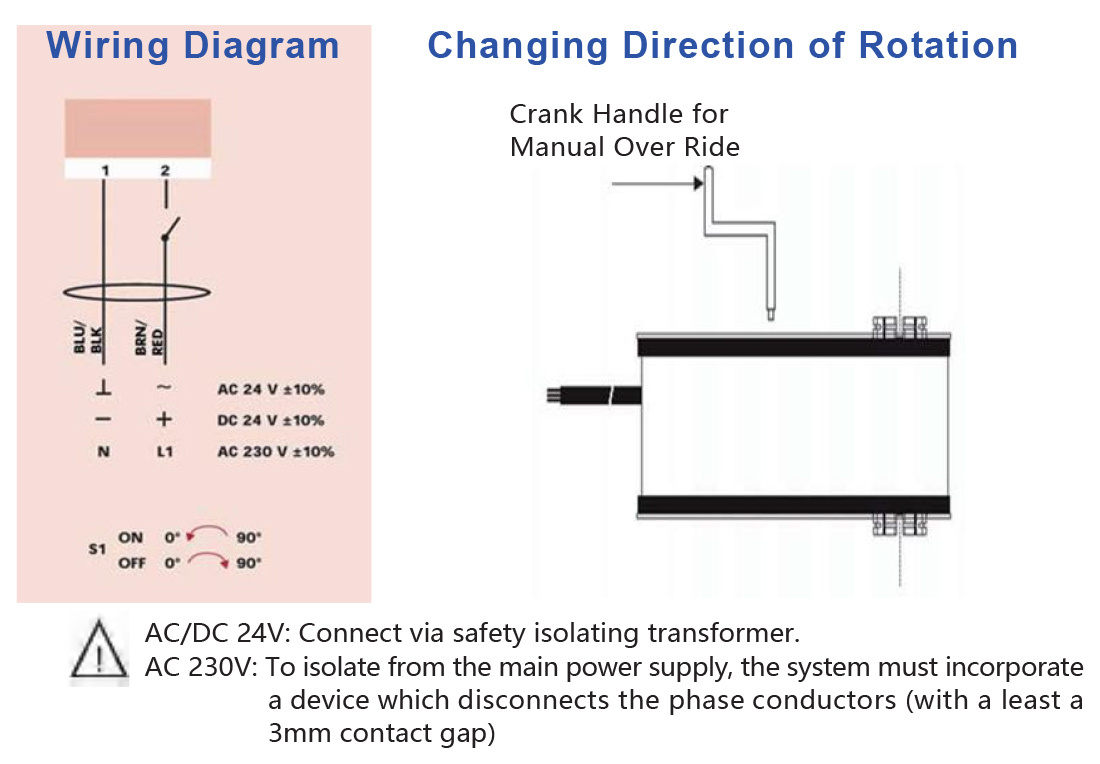

■ Customized version available on requestWiring instructions
Notice: Manual Operation Instruction
Insert the hand handle into the hex hole, smoothly and slowly turn around the handle by clockwise (or counter clockwise) rotation, according to the diagram of the product label. At the same time, the outputshaft will follow and turn by clockwise (or counter clockwise) rotation. When the outputshaft moves to the required position, then turn the handle conversely by counter clockwise (or clockwise) with 90 ℃, the outputshaft will be blocked. Then turn slightly the handle by another clockwise (or counter clockwise), the outputshaft will move again.
[Attention]:Please do not operate manually when the actuator is speedly rebounding, otherwise it causes easily unlocking by manual or assembly damage.
-

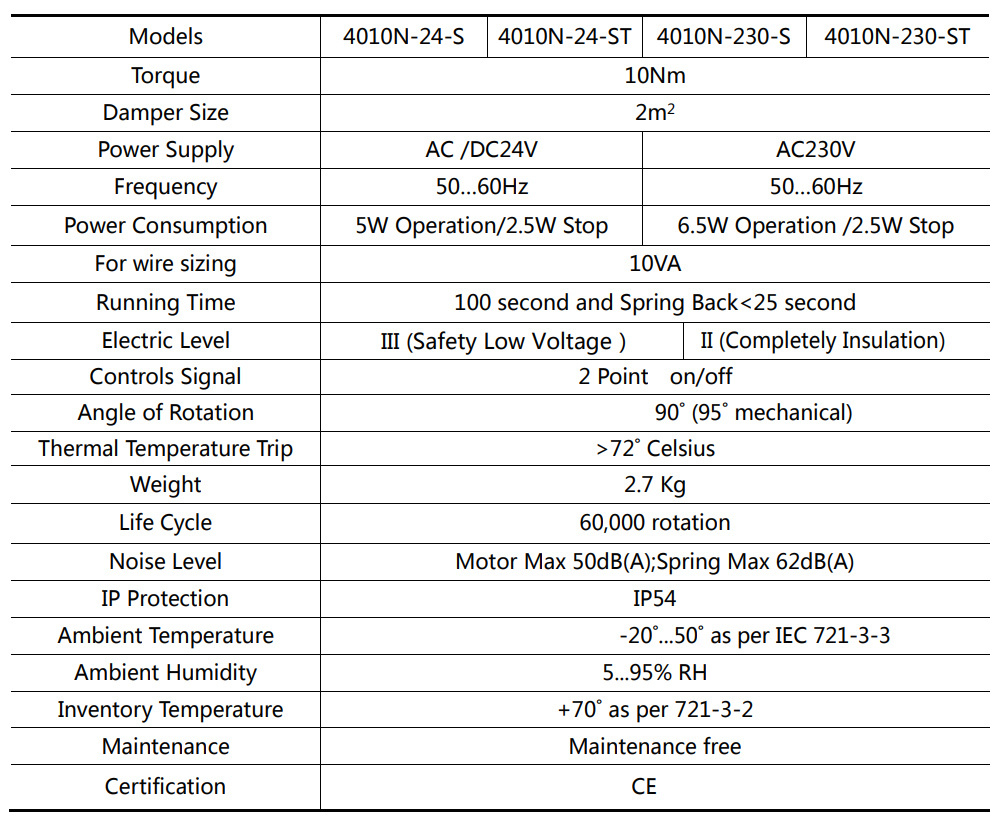

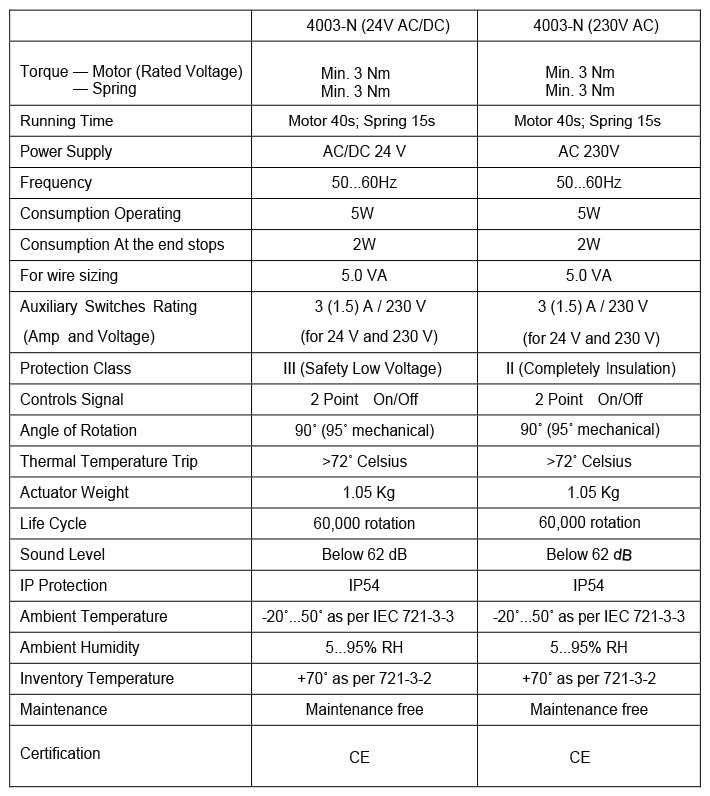

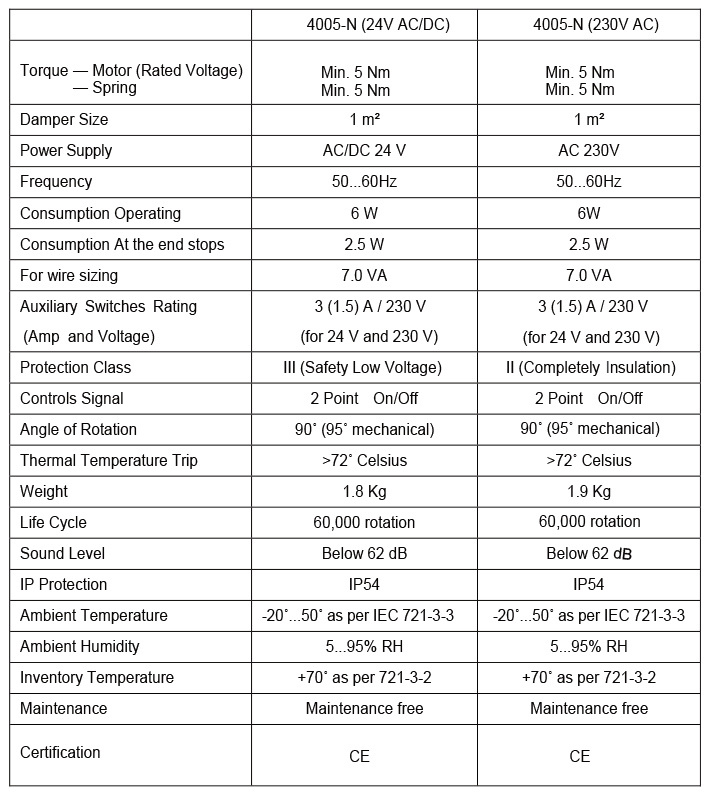

Technical Specification
-

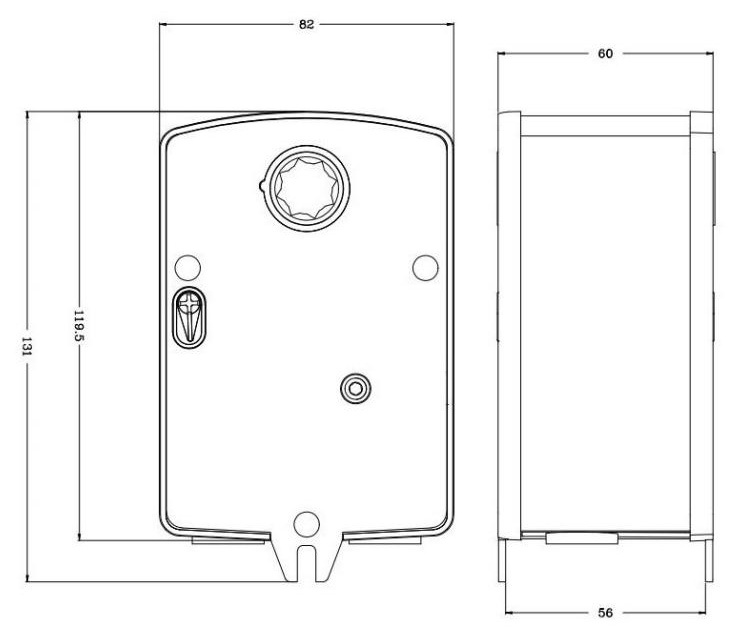

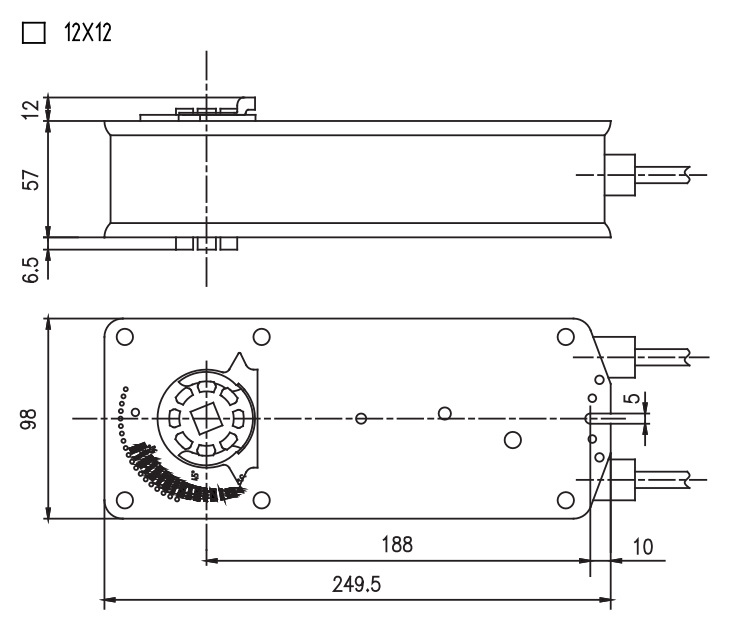

4003/4005 Actuator Dimensions (mm)
4010/4015 Actuator Dimensions (mm)
Related Documents
-
File size: 4.4MB
