30 Series Spring Return Damper Actuators
■ PHC 30 Series Spring Return damper actuator Series are designed specifically for application into the HVAC market. ■ PHC high quality damper actuators are developed for use with air damper, butterfly valve, characterized ball valve and other devices that required a fail safe function. The actuator motorized the damper or other devices when power on and spring back to it original position when power is cut off. ■ For the operation of air dampers that perform safety functions (e.g. frost and smoke protection, hygiene, etc.). The actuator moves the damper to its normal working position while tensioning the return spring at the same time. If the power supply is interrupted, the damper will back to its safe position.
Retail Price：
$ 28.25
Remaining Stock
10000
Category：
Damper Actuator Series
Keyword：
Series of Spring Return Damper Actuators
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: 30 Series Spring Return Damper Actuators
■ PHC 30 Series Spring Return damper actuator Series are designed specifically for application into the HVAC market. ■ PHC high quality damper actuators are developed for use with air damper, butterfly valve, characterized ball valve and other devices that required a fail safe function. The actuator motorized the damper or other devices when power on and spring back to it original position when power is cut off. ■ For the operation of air dampers that perform safety functions (e.g. frost and smoke protection, hygiene, etc.). The actuator moves the damper to its normal working position while tensioning the return spring at the same time. If the power supply is interrupted, the damper will back to its safe position.

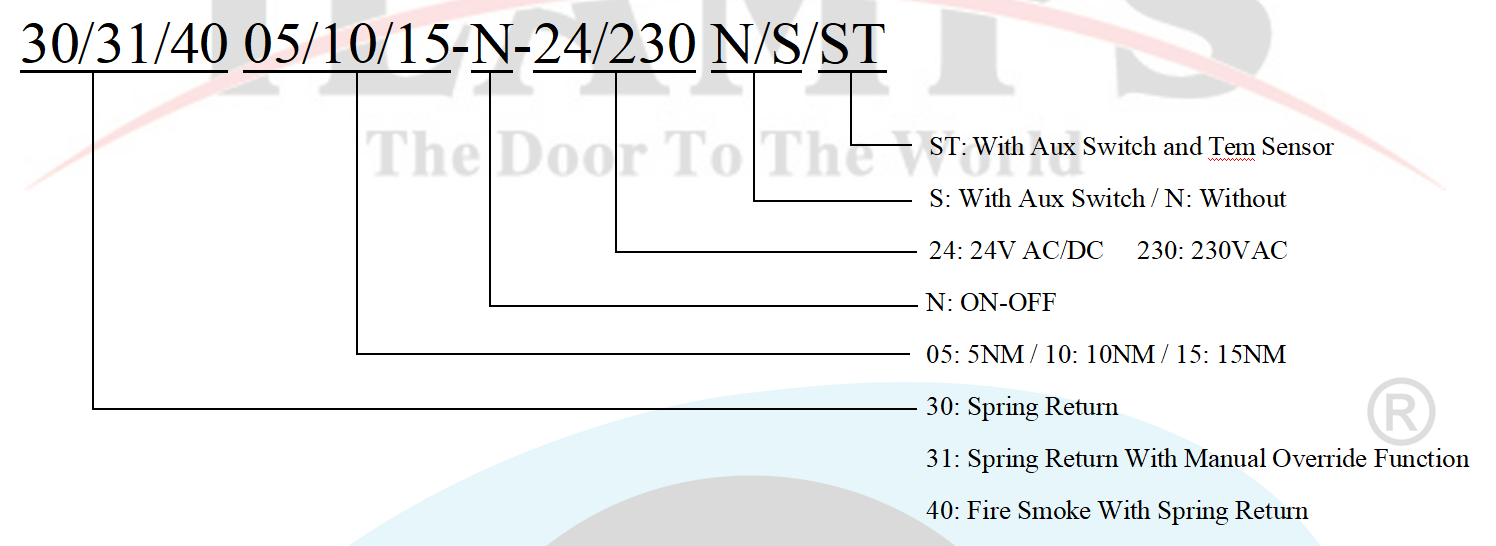

Model Explanation
Features
● 2 point on/off control
● Damper Size up to 3.0 m²
● Voltage AC/DC 24V and AC 230V available

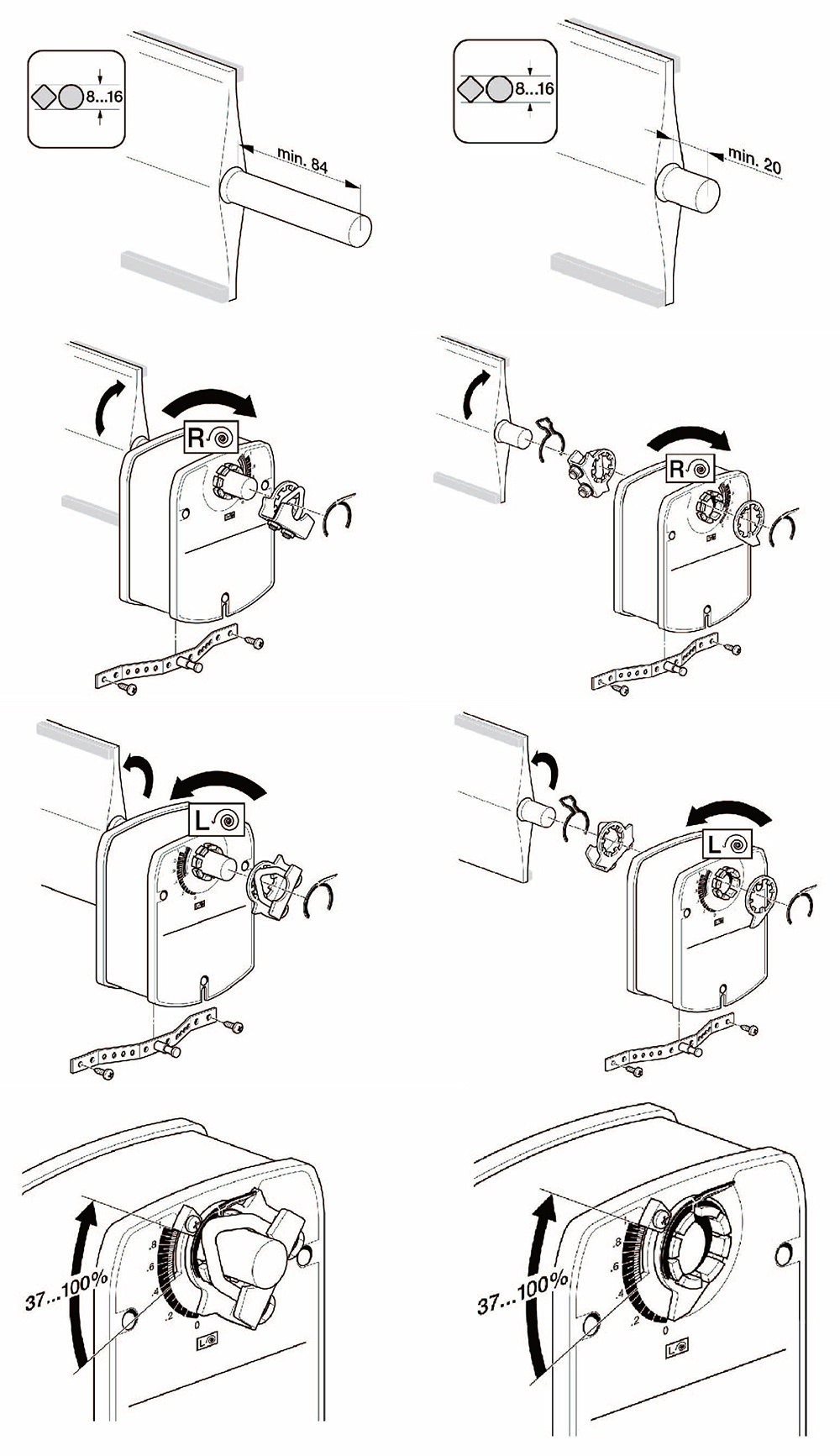

● Shaft dimension Ø 10….19mm / 10…16 square

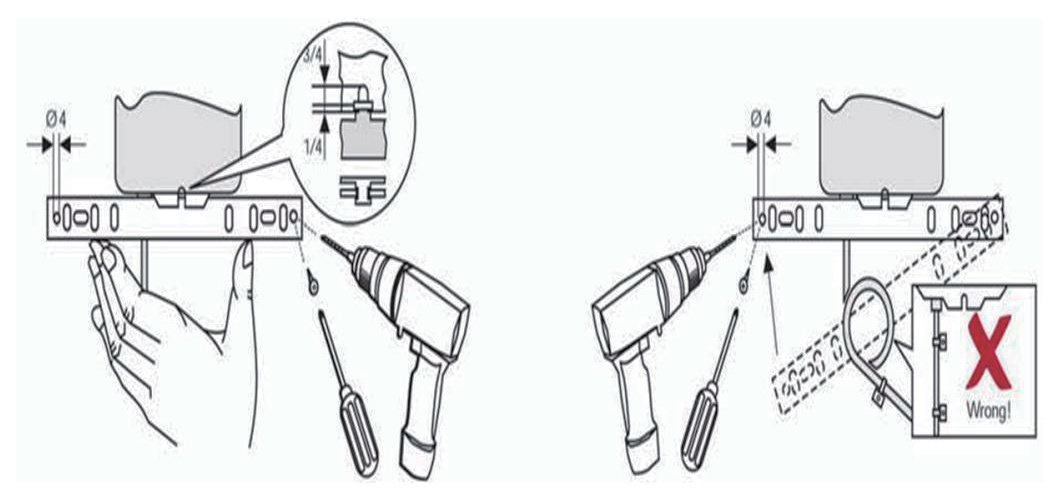

● Anti-rotation bracket provided for stability
● Customized version available

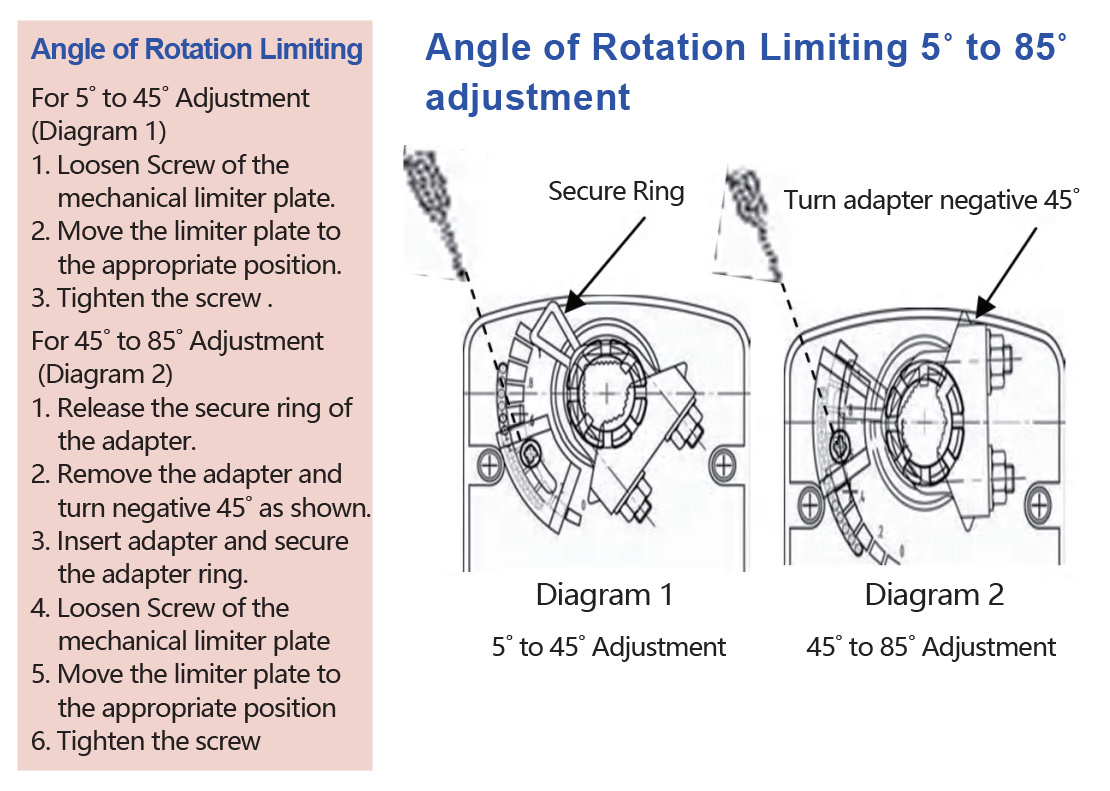

● Adjustable angle of rotation
● Selectable direction of rotation by reversing actuator
● 2 adjustable SPDT auxiliary switches when requested(S versions ONLY)
● Energy saving at end stops

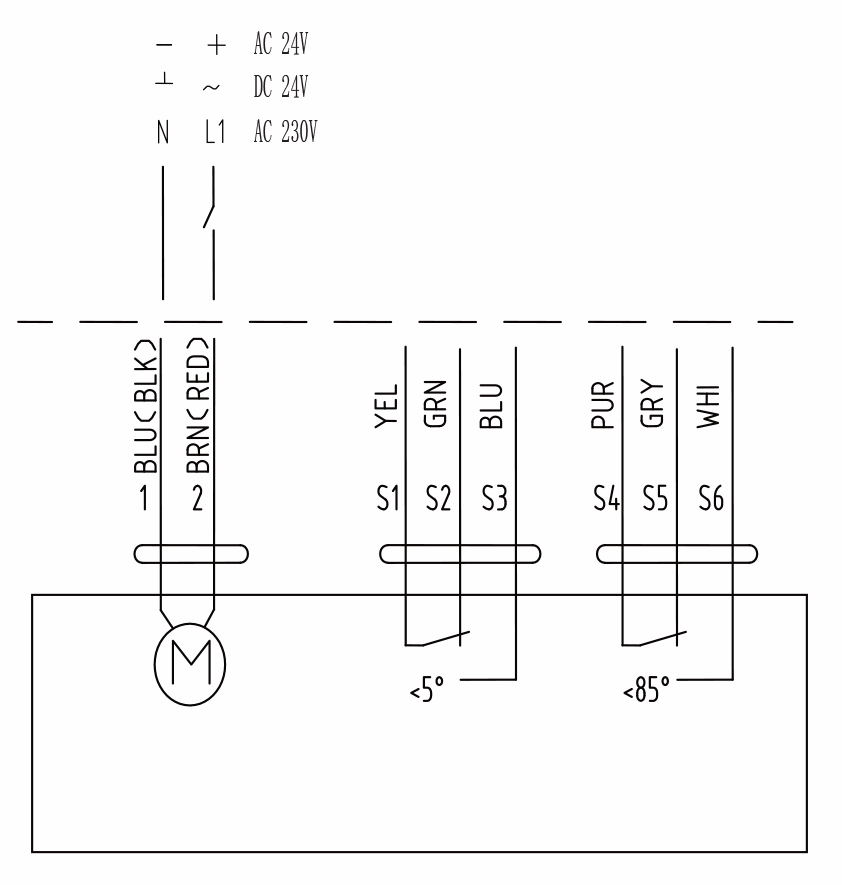

● Actuators with 1m cable connectionWiring Diagram
OEM—Customized Version
PHC offer actuators in customized version on request in your own brand name.
Please contact us for further information.
-
Technical Specification
-

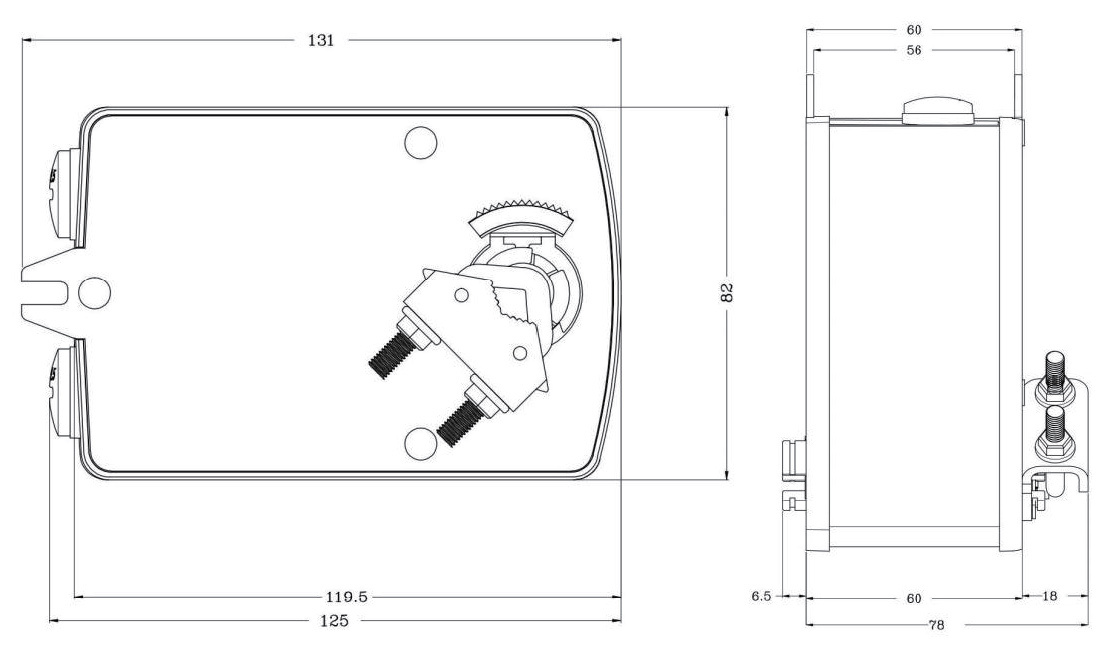

3003/3005 Actuator Dimensions (mm)
3010/3015 Actuator Dimensions (mm)
Related Documents
-
File size: 4.6MB
