Electronics Control Ball Valve ILH500(DN15~DN50)
ILH500 series electronics control ball valve are de-signed to regulate the flow of hot or chilled water and for some models, low-pressure steam in response to the demand of a controller in HVAC system.
Retail Price：
$ 0
Remaining Stock
Category：
Electric Control Valve Series
Keyword：
Electronics Control Ball Valve
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Electronics Control Ball Valve ILH500(DN15~DN50)
ILH500 series electronics control ball valve are de-signed to regulate the flow of hot or chilled water and for some models, low-pressure steam in response to the demand of a controller in HVAC system.
Features and Characteristics
1 - ILH500 electronics control ball valve has a wide selection for several applications:
✓ From DN15 To DN50, NPT Connection
✓ 2-way & 3-way, mix & diversion
✓ Maintenance-Free Design
✓ Maintains equal percentage flow
✓ Adjustable flow proportion
✓ Blowout-Proof Stem2 - ILH500 electronics control ball valve is designed for heavy working pressure and fit
✓ all kind of HVAC working system requirements
✓ Pressure Drop with no noise: up to 2.5 bar.
✓ Maximum Pressure Drop: 3.5 bar.
✓ Close Off: 13 bar.
✓ Maximum Pressure Valve Body: 25 bar.
✓ Assembling must follow the direction shown on valve body marks: A→B.3 - Valve Material:
✓ Stainless Steel for valve interior and ball.
✓ Forged Brass for valve body.
✓ Options: Chrome-Plated Brass or Stainless Steel ball and stem assemblies available upon request.4 - Media:
✓ Working Temperature -5 ºC to 120 ºC
✓ Can be used in 50% Glycol Liquor
✓ Can be used in 1bar Steam
✓ Can be used in rust water system5 - Actuators:
✓ Non-spring return.
✓ Power supply: 24 or 220 V.
✓ Frequency: 50/60Hz
✓ Operating power: 2.5W (Depends on actuator’s toque).
✓ Standstill power: 0.85W ( Depends on actuator’s toque).
✓ Control Signal: F (floating), M (modulating,0-10v or 4-20mA). For 4Nm actuators the control signal must be selected in advance. For other sizes it can be selected on the field.
✓ Protection class IP54 / NEMA2 with cables.
✓ Running time: 35s
✓ Rotation angle: 0-90 -

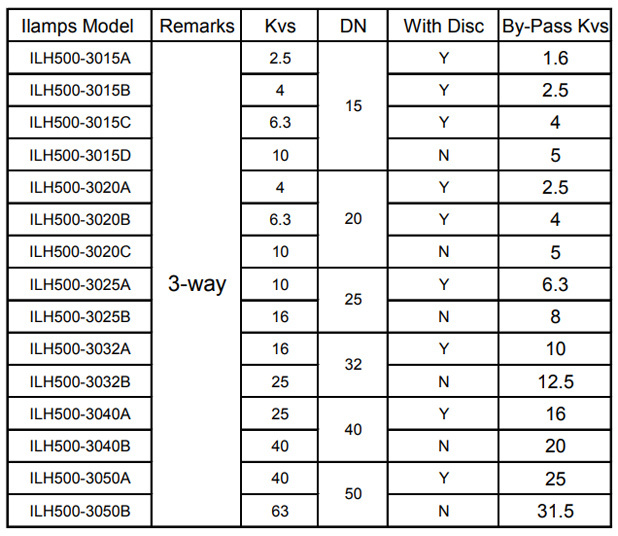

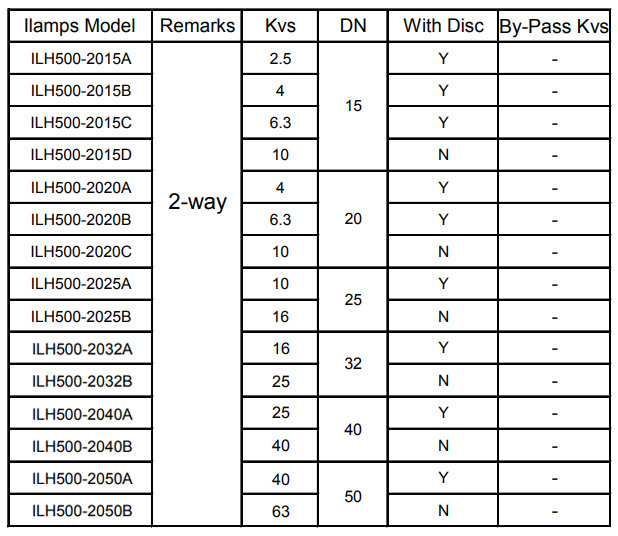

Parameter Chart
-

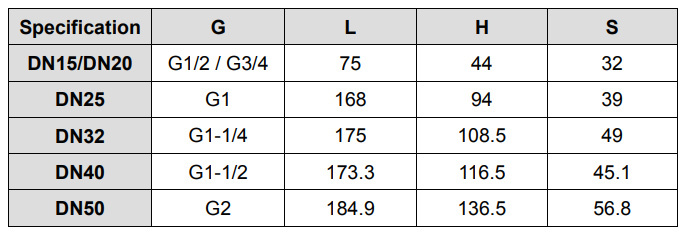

Measurement

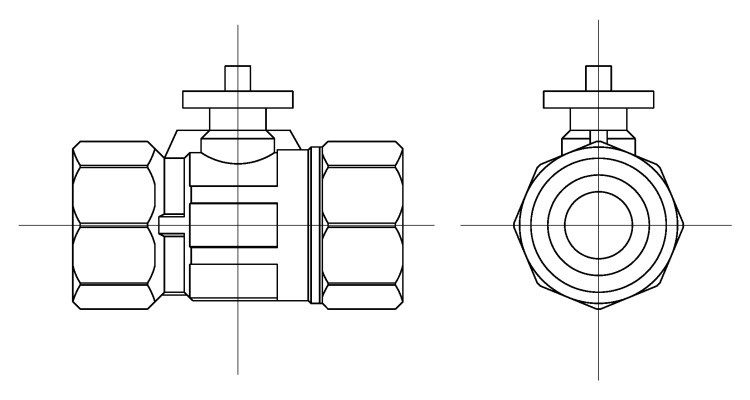

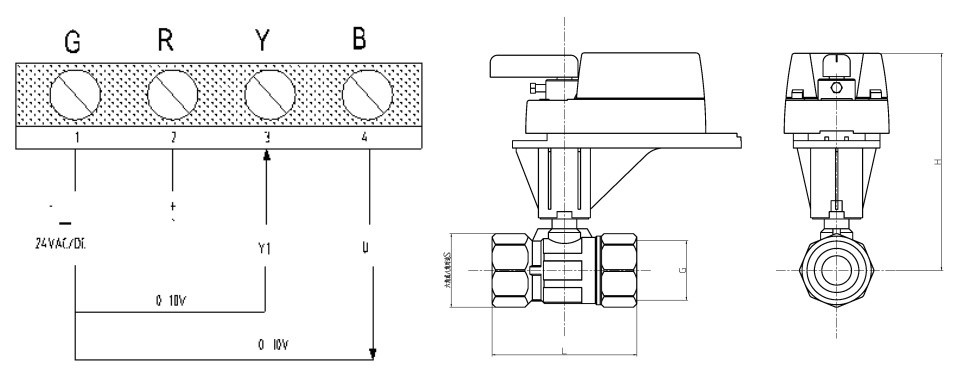

Wiring Diagram & Dimension (mm)
