Electronics Control Ball Valve ILH500 (DN65~DN150)
ILH500 electronics control ball valve is designed to regulate the flow, high reliability and life. It adopts PTFE graphite enhanced valve body O-ring and double EPDM valve rod O-ring. Set Distribution Butterfly Valve, stands reverse pressure. Percentage flow Close off is 13 bar. Rating working pressure is PN16. Maximum Pressure Drop: 3.5 bar. It has manual enforcement short circuit button. Working temperature is -5C to 121C. Application: water, steam or 50% glycol and water.
Retail Price：
$ 0
Remaining Stock
Category：
Electric Control Valve Series
Keyword：
Electronics Control Ball Valve
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Electronics Control Ball Valve ILH500 (DN65~DN150)
ILH500 electronics control ball valve is designed to regulate the flow, high reliability and life. It adopts PTFE graphite enhanced valve body O-ring and double EPDM valve rod O-ring. Set Distribution Butterfly Valve, stands reverse pressure. Percentage flow Close off is 13 bar. Rating working pressure is PN16. Maximum Pressure Drop: 3.5 bar. It has manual enforcement short circuit button. Working temperature is -5C to 121C. Application: water, steam or 50% glycol and water.
Features and Characteristics
1 - ILH500 electronics control ball valve wide selection for a variety of applications
✓ Set Distribution Butterfly Valve
✓ Percentage flow.
✓ Flow adjustable for valve

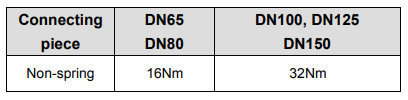

✓ Different torque can be selected from actuator
✓ On/off, floating-point, modulating control2 - ILH500 series electronics control ball valves have a high rate adjustable float percentage.
✓ It ensures preci-sion control of flow in any load situation.
✓ A rectification plate of high intensity material is placed inside to avoid shed.3 - ILH500 electronics valves use stainless steel ball valve spool and stem, applied in HVAC projects：
✓ Applied working temperature:-5 ºC to 121 ºC
✓ Applied in 50% glycol
✓ Applied in 1 bar saturation steam
✓ Applied in ferruginous water system4 - ILH500 electronics valves can use the following actuators On-Off or Modulating:

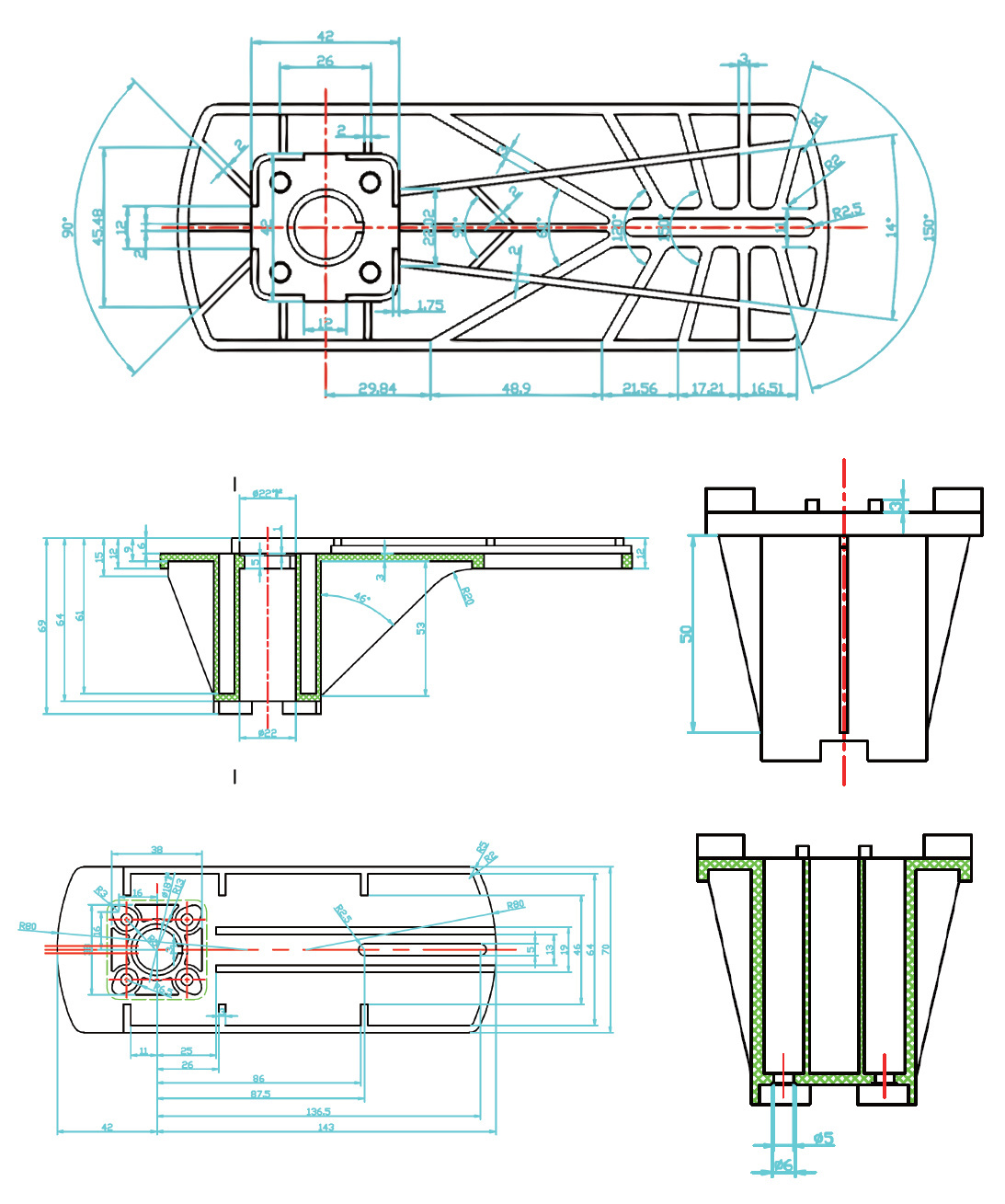

5 - ILH500 valve connecting pieces are made from high intensity material.
✓ Applied in high or low temperature situation
✓ Anti-chemical corrosion
✓ Save space for pipe connection
✓ Match with actuator. Only 4 screws needed to contact connect pieces with valves6 - O-ring of spool of the valve is made from lead with PTFE. Double stem is made from EPDM
✓ Extremely anti-wear
✓ Lower torque needed when open/close
✓ Double anti-leak stem
✓ PTFE Teflon stem orientation circle7 - ILH500 valves are facile, applied broadly:
✓ various processor group
✓ VAV, dehumidify - fan coil
✓ Single fan coil group
✓ Warm-up coil equipment
✓ Roof conditioning group
✓ Boiler system• cooling facility group -

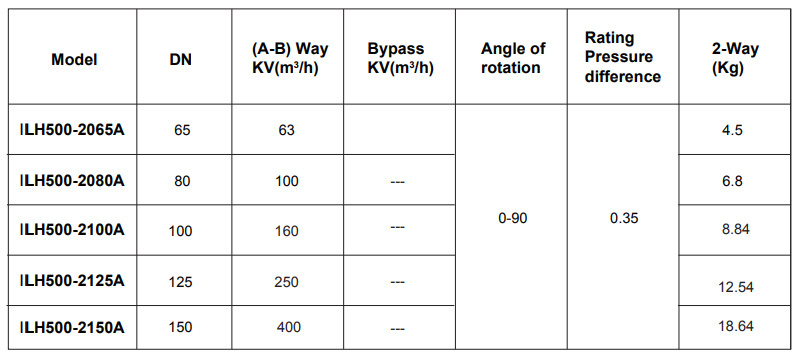

Technical Specification

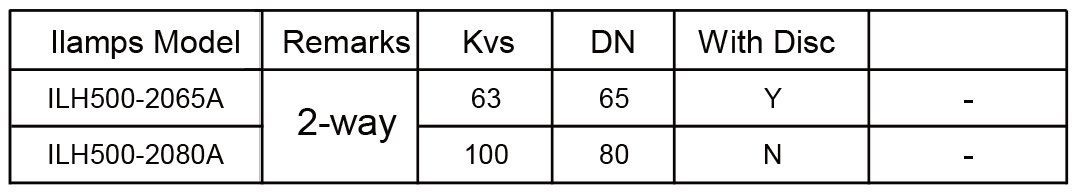

Ball Valves Kvs Chart
-

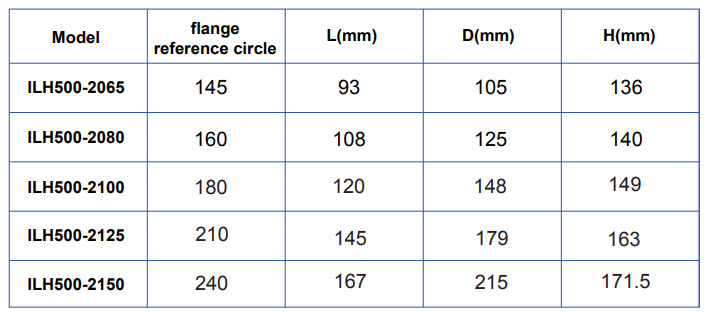

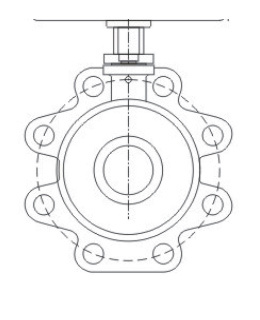

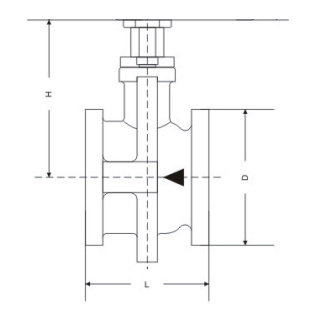

Housing Size
