Electronics Control Ball Valve ILH501-B(DN15~DN25)
ILH501 electronics control ball valve is available for ending waterway control.
The thermostat can control motor, make the valve power off / on by motor to make the medium current or disconnected, and make the fan coil blow to control the temperature automatically.
Retail Price：
$ 0
Remaining Stock
Category：
Electric Control Valve Series
Keyword：
Electronics Control Ball Valve
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Electronics Control Ball Valve ILH501-B(DN15~DN25)
ILH501 electronics control ball valve is available for ending waterway control.<br> The thermostat can control motor, make the valve power off / on by motor to make the medium current or disconnected, and make the fan coil blow to control the temperature automatically.
Features and Characteristics
◈ Water proof, dustproof function, leakproofness and tightness.
◈ Short power-on time, energy-efficient, the motor has long using life.
◈ Easy to dismantle or install the actuator.
◈ Large close pressure difference, tight closing.
◈ Direct water flow, KVS value is much larger than common 2-way value.
◈ Soft value opening.Wirings
-
Techinical Data
◈ ILH501-BK: 220VAC±10%, 50/60Hz, or 24VAC±10%, 50/60Hz
◈ LH501-BM: 24VAC±10%, 50/60Hz
◈ Power : 2W torque 2N.m
◈ Nominal pressure : 1.6MPa
◈ Running time : 40-50s
◈ Working medium : water, fluid temperature 5~95℃ -

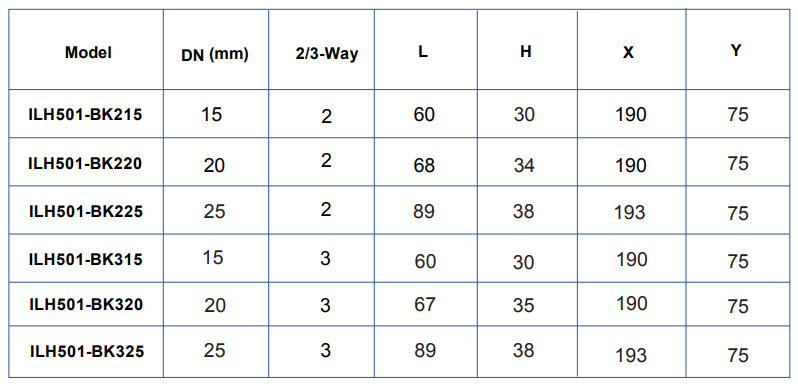

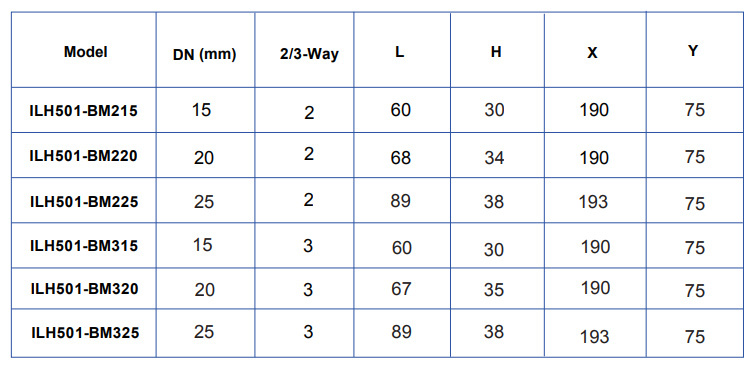

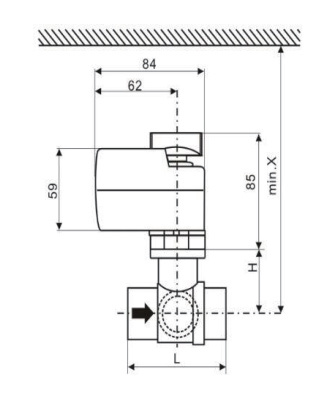

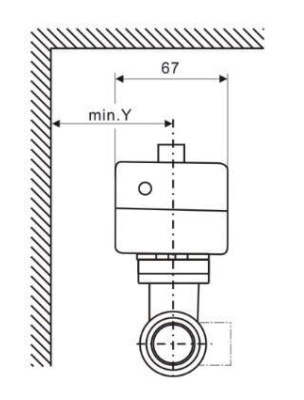

Housing Size
