Electronics Control Ball Valve ILH501-D(DN32~DN50)
ILH501 electronics control ball valve is available for ending waterway control.
The thermostat can control motor, make the valve power off / on by motor to make the medium current or disconnected, and make the fan coil blow to control the temperature automatically.
Retail Price：
$ 0
Remaining Stock
Category：
Electric Control Valve Series
Keyword：
Electronics Control Ball Valve
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data

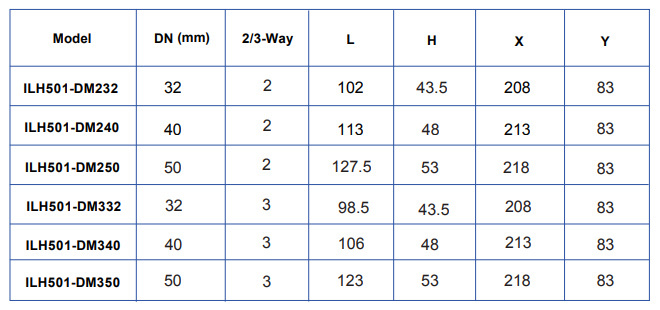

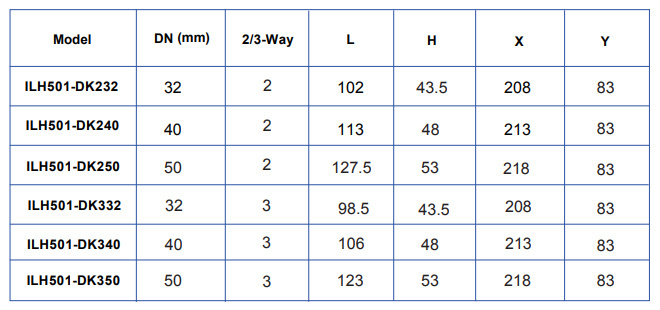

- Measurement
-
- Commodity name: Electronics Control Ball Valve ILH501-D(DN32~DN50)
ILH501 electronics control ball valve is available for ending waterway control.<BR> The thermostat can control motor, make the valve power off / on by motor to make the medium current or disconnected, and make the fan coil blow to control the temperature automatically.</
特点
• Water proof, dustproof function, leakproofness and tightness.
• Short power-on time, energy-efficient, the motor has long using life.
• Easy to dismantle or install the actuator.
• Large close pressure difference, tight closing.
• Direct water flow, KVS value is much larger than common 2-way value.
• Soft value opening.

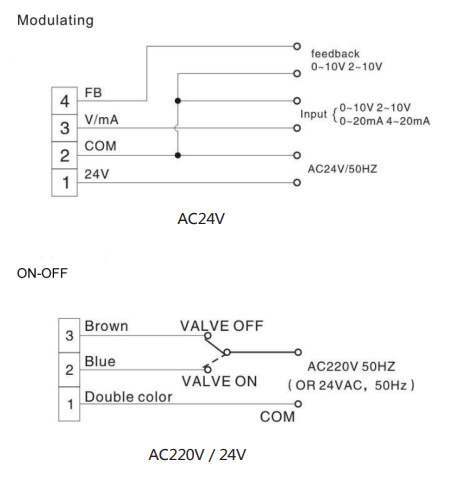

Wirings
-
Techinical Data
• ILH501-DK: 220VAC±10%, 50/60Hz, or 24VAC±10%, 50/60Hz
• ILH501-DM: 24VAC±10%, 50/60Hz
• Power : 2W torque 10N.m
• Nominal pressure : 1.6MPa
• Running time : 95-105s
• Working medium : water, fluid temperature 5~95℃
-

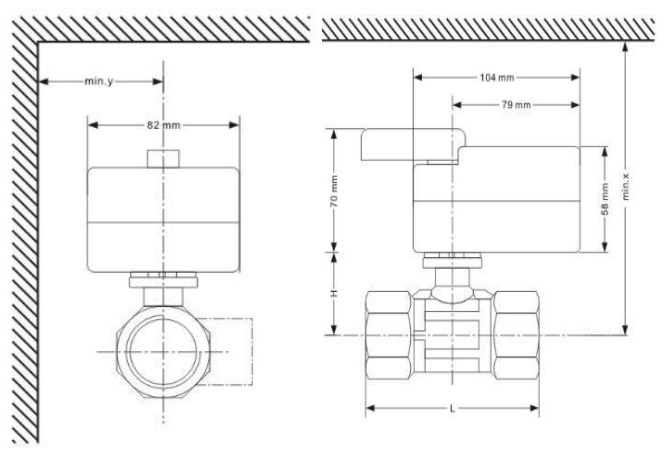

外壳尺寸
