Electronics Control Ball Valve ILH502
Electric ball valve is mainly used for central air conditioning hot and cold water system, precise control of cold and hot medium flow rate according to actual needs, not cause severe changes of temperature, achieve the goal of real-time precision control indoor temperature, the control valve by one-way motor drive, motor and thermostat through public side, open, close connection, the thermostat is on-site data sampling and processing, signal control, stop the motor running and the electric ball valve, control of electric valves open and close degree, cold water or hot water into the fan coil units, to provide room air conditioning or heating, when indoor temperature reaches the thermostat setting, temperature controller for electric power ball valve, the valve opening is in the best condition, at room temperature in a thermostat setting temperature range.
Retail Price：
$ 0
Remaining Stock
Category：
Electric Control Valve Series
Keyword：
Electronics Control Ball Valve
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data

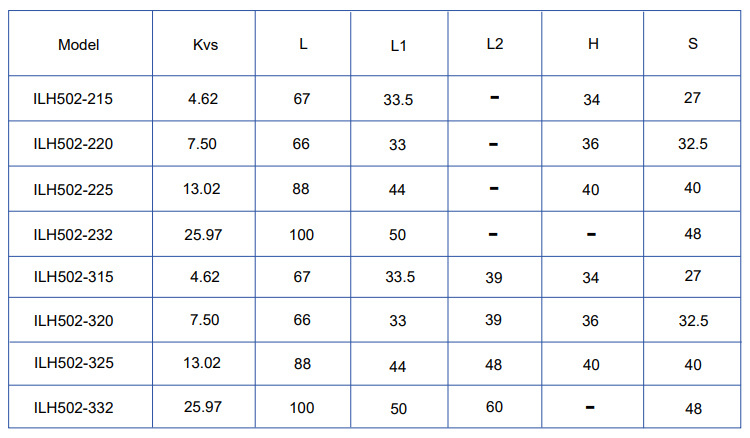

- Measurement
-
- Commodity name: Electronics Control Ball Valve ILH502
Electric ball valve is mainly used for central air conditioning hot and cold water system, precise control of cold and hot medium flow rate according to actual needs, not cause severe changes of temperature, achieve the goal of real-time precision control indoor temperature, the control valve by one-way motor drive, motor and thermostat through public side, open, close connection, the thermostat is on-site data sampling and processing, signal control, stop the motor running and the electric ball valve, control of electric valves open and close degree, cold water or hot water into the fan coil units, to provide room air conditioning or heating, when indoor temperature reaches the thermostat setting, temperature controller for electric power ball valve, the valve opening is in the best condition, at room temperature in a thermostat setting temperature range.
Features and Characteristics
• Good waterproof and grey function and sealing (IP65).
• Electricity a very short time, energy-saving products, motor longer life.
• Actuator tear open outfit simple.
• Closed differential pressure big, closed tightly.
• Through the water, no blocking by the slag KVs value is greater than the average two-way valve.
• Flexible valve open, can effectively prevent water hammer.

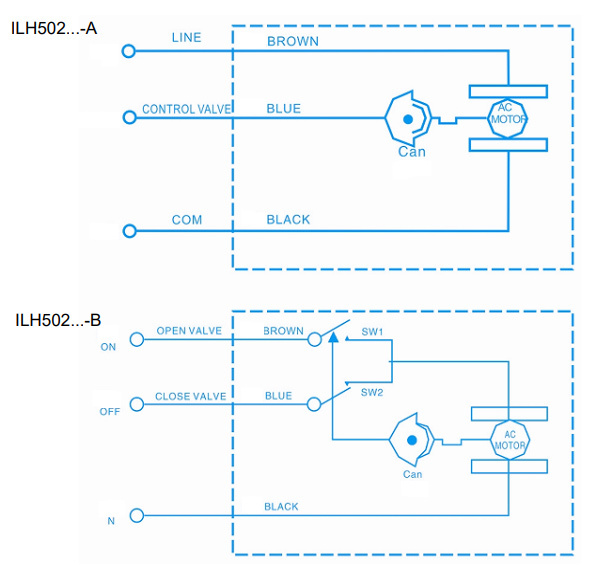

Wirings
-
Techinical Data
Medium: cold water/ hot water/ 60% ethylene glycol
Style: 2-WAY / 3-WAY
Voltage: AC220/24V
Power: 6W
Run time: 15S
Nominal pressure: 2.0 MPa
Medium temperature: 1-95 .C
Maximum differential pressure: 1 MPa
Protection grade: IP65
Torque: 3NM
Material
Body: brass / Valve core: stainless steel / Stem: brass / Base: PTEE
Seal: EPDM
-

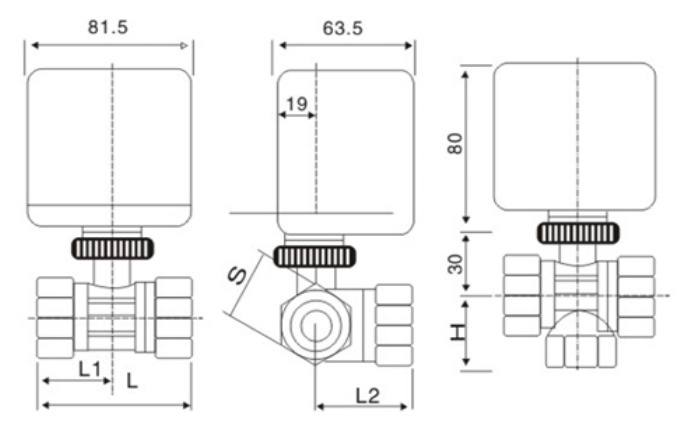

Housing Size
