Electronics Control Ball Valve ILH503
Motorized ball valve consists of on/off type or 3-point type actuator and ball valve, which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipment.
Retail Price：
$ 0
Remaining Stock
Category：
Electric Control Valve Series
Keyword：
Electronics Control Ball Valve
Service Hotline：+86-10-8775-5626
Inquiry Email：jocko@ilamps-trade.com
- Product description
- Technical data
- Measurement
-
- Commodity name: Electronics Control Ball Valve ILH503
Motorized ball valve consists of on/off type or 3-point type actuator and ball valve, which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipment.
Function
This actuator is controlled by on/off or 3-point control signal, using reversible synchronous motor and gear speed reducer drive to fix and lock.

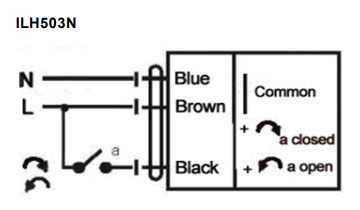

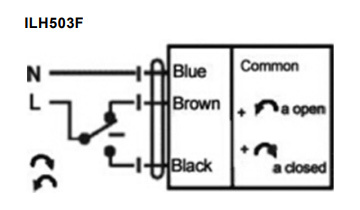

Wirings
-
Techinical Data
Medium: water, oil
Temperature of medium: 0°C...120°C
Rated pressure: PN25
Pipe connector: internal thread (BSP/NPT)
Size: DN15, DN20 and DN25
Valve type: 2-way and 3-way
Working environment: -5...60°C and 0...90%RH
Actuator
ILH503F: 24V/110V/220VAC,24V/12V/3VDC, 50/60Hz, 3-point
ILH503N: 24V/110V/220VAC,24V/12V/3VDC, 50/60Hz, on/off
Output torque: >3.5N.m
Angle of rotation: 90°
Protect rank: IP54
On/off time: 16S
Material
Valve body: SS304 / Seal: ball: EPDM+PTFE / Ball: SS304
stem: EPDM O-rings
-

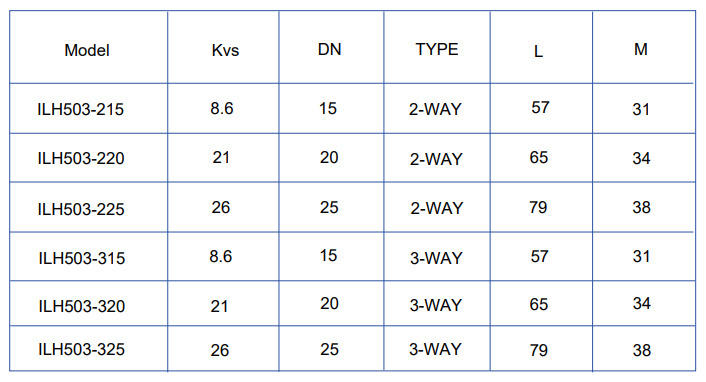

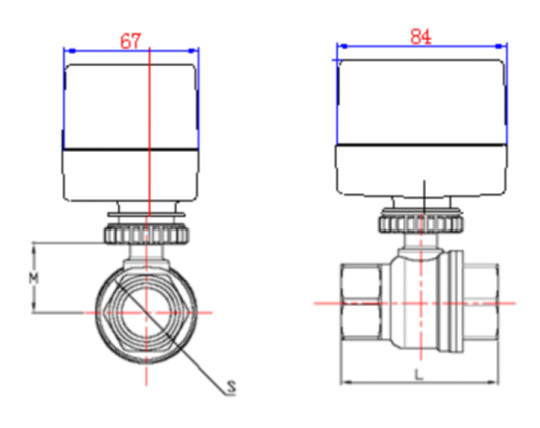

Housing Size
